Description
Brand - NADELLA
Item Number - FKY 72 C NADELLA
Category - V-Line Guide Wheel with Tapered Roller Bearing

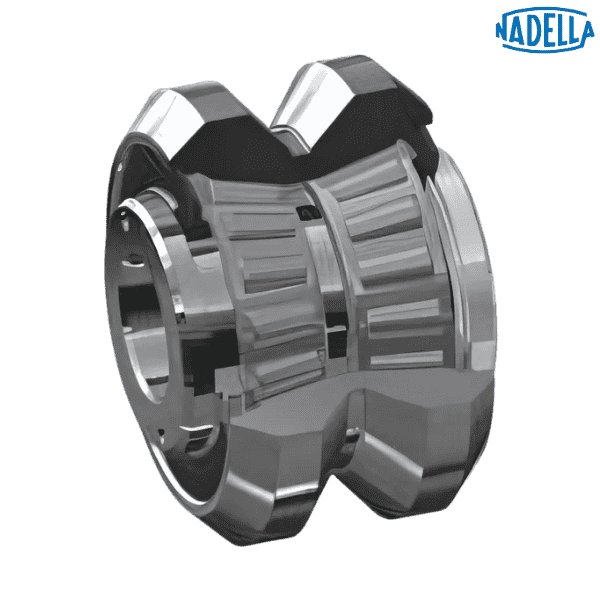

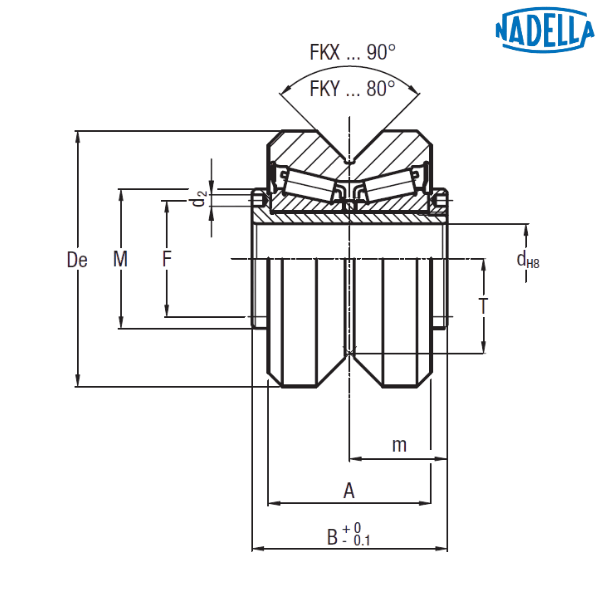

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 72 mm
Dimension (d) - 25 mm
Dimension (T) - 25.5 mm
Dimension (m) - 28 mm
Dimension (A) - 45 mm
Dimension (B) - 56 mm
Dimension (F) - 37 mm
Dimension (d2) - 4 mm
Dimension (M) - 44 mm
Weight - 1.2 kg
Dynamic Load (Cw*) - 66000 N
Radial Limit Load (Fr) - 30000 N
Axial Limit Load (Fr) - 12300 N
Life Coefficient (X) - 3 mm
Life Coefficient (Y) - 3.2 mm
Description of Prefix:
FKY - Guide roller with tapered roller bearings for FS and FSH rails of V-Line system
Other salient points to be noted:
* Cw basic load for 100 km
• On request, the guide rollers can be supplied with external parts in stainless steel (suffix NX) and with Viton seals for operating temperatures up to 120°C (suffix V), not available for dimension FKX 110 C. Internal rolling elements in standard bearing steel
• To prevent rotation between roller and shaft a pin can be fitted in one of the holes “d2” positioned in the side flange
• Pressure angle α for load calculation: guide rollers FKY 40° – guide rollers FKX 45°
• Standard seals: material NBR, RS type
• The sides of the race are convex
♦ ♦ Images are for representation purposes only
Item Number - FKY 72 C NADELLA
Category - V-Line Guide Wheel with Tapered Roller Bearing
Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 72 mm
Dimension (d) - 25 mm
Dimension (T) - 25.5 mm
Dimension (m) - 28 mm
Dimension (A) - 45 mm
Dimension (B) - 56 mm
Dimension (F) - 37 mm
Dimension (d2) - 4 mm
Dimension (M) - 44 mm
Weight - 1.2 kg
Dynamic Load (Cw*) - 66000 N
Radial Limit Load (Fr) - 30000 N
Axial Limit Load (Fr) - 12300 N
Life Coefficient (X) - 3 mm
Life Coefficient (Y) - 3.2 mm
Description of Prefix:
FKY - Guide roller with tapered roller bearings for FS and FSH rails of V-Line system
Other salient points to be noted:
* Cw basic load for 100 km
• On request, the guide rollers can be supplied with external parts in stainless steel (suffix NX) and with Viton seals for operating temperatures up to 120°C (suffix V), not available for dimension FKX 110 C. Internal rolling elements in standard bearing steel
• To prevent rotation between roller and shaft a pin can be fitted in one of the holes “d2” positioned in the side flange
• Pressure angle α for load calculation: guide rollers FKY 40° – guide rollers FKX 45°
• Standard seals: material NBR, RS type
• The sides of the race are convex
♦ ♦ Images are for representation purposes only
