Description
Brand - NADELLA
Item Number - FKY 62 C NADELLA
Category - V-Line Guide Wheel with Tapered Roller Bearing

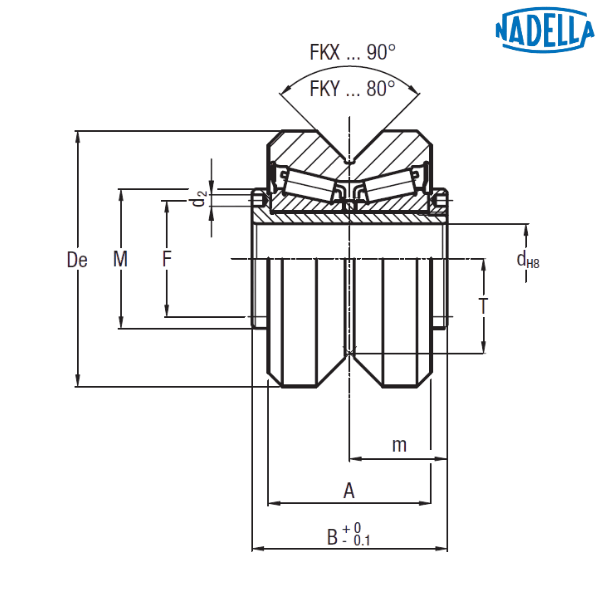

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 62 mm
Dimension (d) - 20 mm
Dimension (T) - 22.1 mm
Dimension (m) - 22.5 mm
Dimension (A) - 37 mm
Dimension (B) - 45 mm
Dimension (F) - 29 mm
Dimension (d2) - 3 mm
Dimension (M) - 35 mm
Weight - 0.6 kg
Dynamic Load (Cw*) - 46000 N
Radial Limit Load (Fr) - 19000 N
Axial Limit Load (Fr) - 8300 N
Life Coefficient (X) - 2 mm
Life Coefficient (Y) - 3.5 mm
Description of Prefix:
FKY - Guide roller with tapered roller bearings for FS and FSH rails of V-Line system
Other salient points to be noted:
* Cw basic load for 100 km
• On request, the guide rollers can be supplied with external parts in stainless steel (suffix NX) and with Viton seals for operating temperatures up to 120°C (suffix V), not available for dimension FKX 110 C. Internal rolling elements in standard bearing steel
• To prevent rotation between roller and shaft a pin can be fitted in one of the holes “d2” positioned in the side flange
• Pressure angle α for load calculation: guide rollers FKY 40° – guide rollers FKX 45°
• Standard seals: material NBR, RS type
• The sides of the race are convex

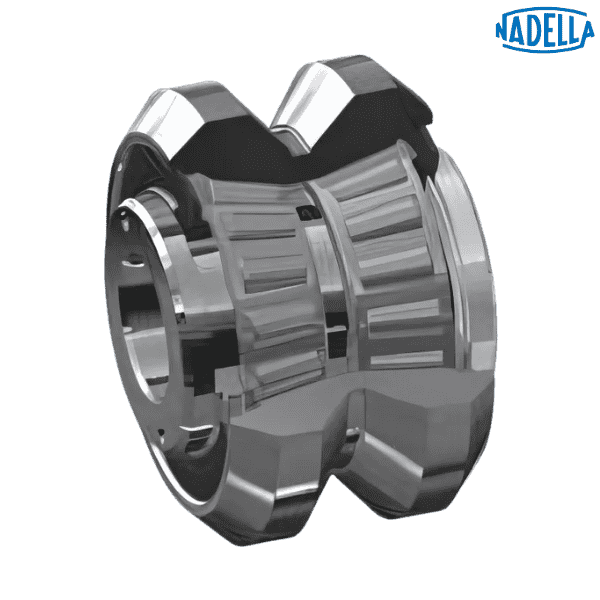

♦ ♦ Images are for representation purposes only
Item Number - FKY 62 C NADELLA
Category - V-Line Guide Wheel with Tapered Roller Bearing
Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 62 mm
Dimension (d) - 20 mm
Dimension (T) - 22.1 mm
Dimension (m) - 22.5 mm
Dimension (A) - 37 mm
Dimension (B) - 45 mm
Dimension (F) - 29 mm
Dimension (d2) - 3 mm
Dimension (M) - 35 mm
Weight - 0.6 kg
Dynamic Load (Cw*) - 46000 N
Radial Limit Load (Fr) - 19000 N
Axial Limit Load (Fr) - 8300 N
Life Coefficient (X) - 2 mm
Life Coefficient (Y) - 3.5 mm
Description of Prefix:
FKY - Guide roller with tapered roller bearings for FS and FSH rails of V-Line system
Other salient points to be noted:
* Cw basic load for 100 km
• On request, the guide rollers can be supplied with external parts in stainless steel (suffix NX) and with Viton seals for operating temperatures up to 120°C (suffix V), not available for dimension FKX 110 C. Internal rolling elements in standard bearing steel
• To prevent rotation between roller and shaft a pin can be fitted in one of the holes “d2” positioned in the side flange
• Pressure angle α for load calculation: guide rollers FKY 40° – guide rollers FKX 45°
• Standard seals: material NBR, RS type
• The sides of the race are convex
♦ ♦ Images are for representation purposes only
