FK 90CNX NADELLA

Brand - NADELLA
Item Number - FK 90CNX NADELLA
Category - Guide Wheels with Tapered Roller Bearing
Also Known As - FK90CNX

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 90 mm
Recommended Tolerance of the Clamping Pivot (d) * - 28 mm
Dimension (B) - 64 mm
Dimension (A) - 53 mm
Dimension (C) - 45 mm
Dimension (M) - 42 mm
Dimension (F) - 4 mm
Dimension (d2) - 49 mm
Dimension (R) - 1200 mm
Load Coefficient of the Calculation for the Duration with Base 1 Million Revs (Cw) ** - 98000 N
Coefficient of the Calculation for the Duration with Base 100 km (Cw) *** - 134000 N
Dynamic Load Limit (Fr) - 43800 N
Static Load Limit (For) - 80000 N
Weight - 2.3 kg

Description of Suffix:
NX - Guide Rollers with External Parts with stainless Steel

Other salient points to be noted:
* Recommended tolerance of the clamping pivot: h7 (free coupling)
** Coefficient of the calculation for the duration with base 1 million revs
*** Coefficient of the calculation for the duration with base 100 km

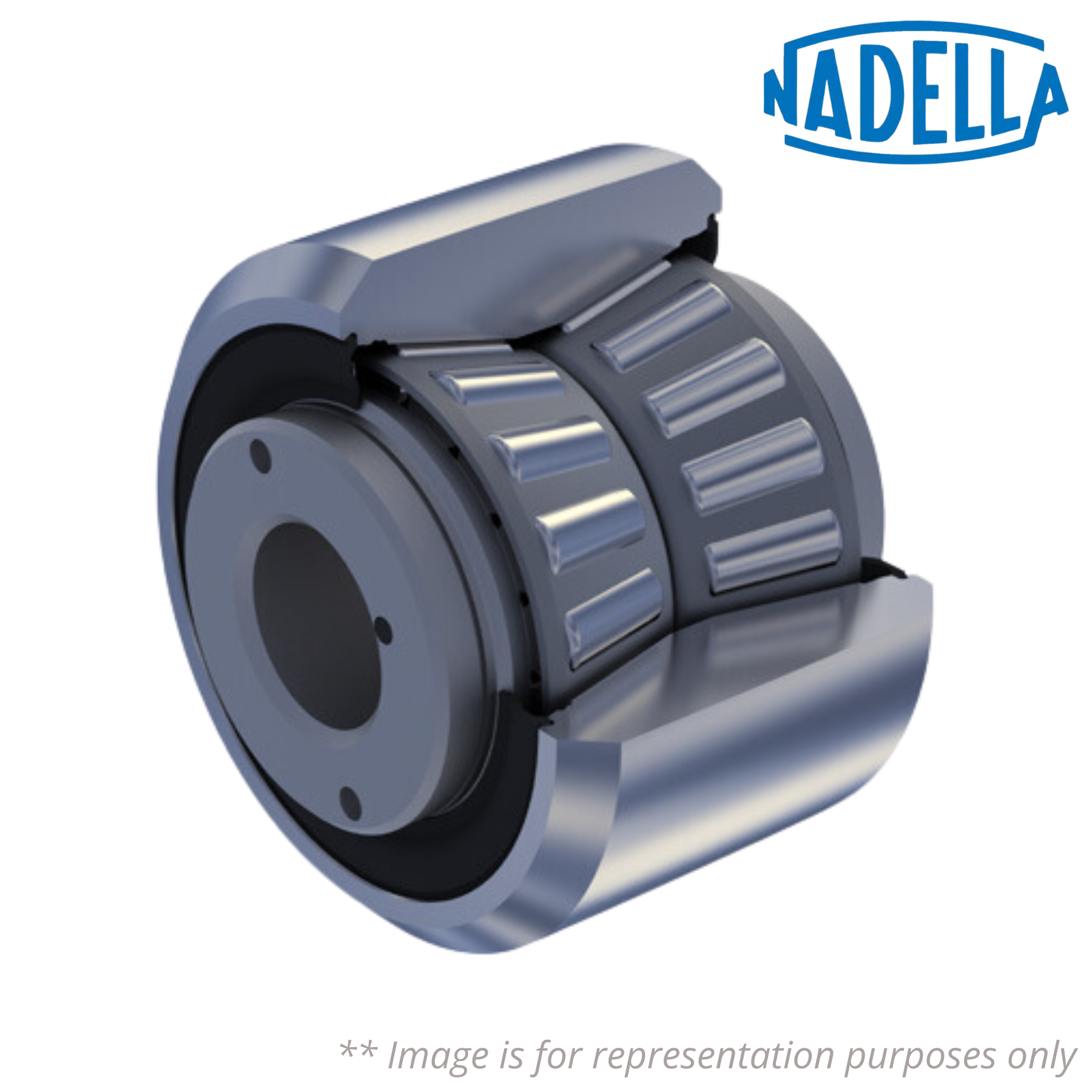

♦♦ Images are for representation purposes only
