FK 72C NADELLA

Brand - NADELLA
Item Number - FK 72C NADELLA
Category - Guide Wheels with Tapered Roller Bearing
Also Known As - FK72C

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 72 mm
Recommended Tolerance of the Clamping Pivot (d) * - 25 mm
Dimension (B) - 56 mm
Dimension (A) - 45 mm
Dimension (C) - 33 mm
Dimension (M) - 37 mm
Dimension (F) - 4 mm
Dimension (d2) - 44 mm
Dimension (R) - 1200 mm
Load Coefficient of the Calculation for the Duration with Base 1 Million Revs (Cw) ** - 54000 N
Coefficient of the Calculation for the Duration with Base 100 km (Cw) *** - 69000 N
Dynamic Load Limit (Fr) - 31300 N
Static Load Limit (For) - 58000 N
Weight - 1.2 kg

Other salient points to be noted:
* Recommended tolerance of the clamping pivot: h7 (free coupling)
** Coefficient of the calculation for the duration with base 1 million revs
*** Coefficient of the calculation for the duration with base 100 km

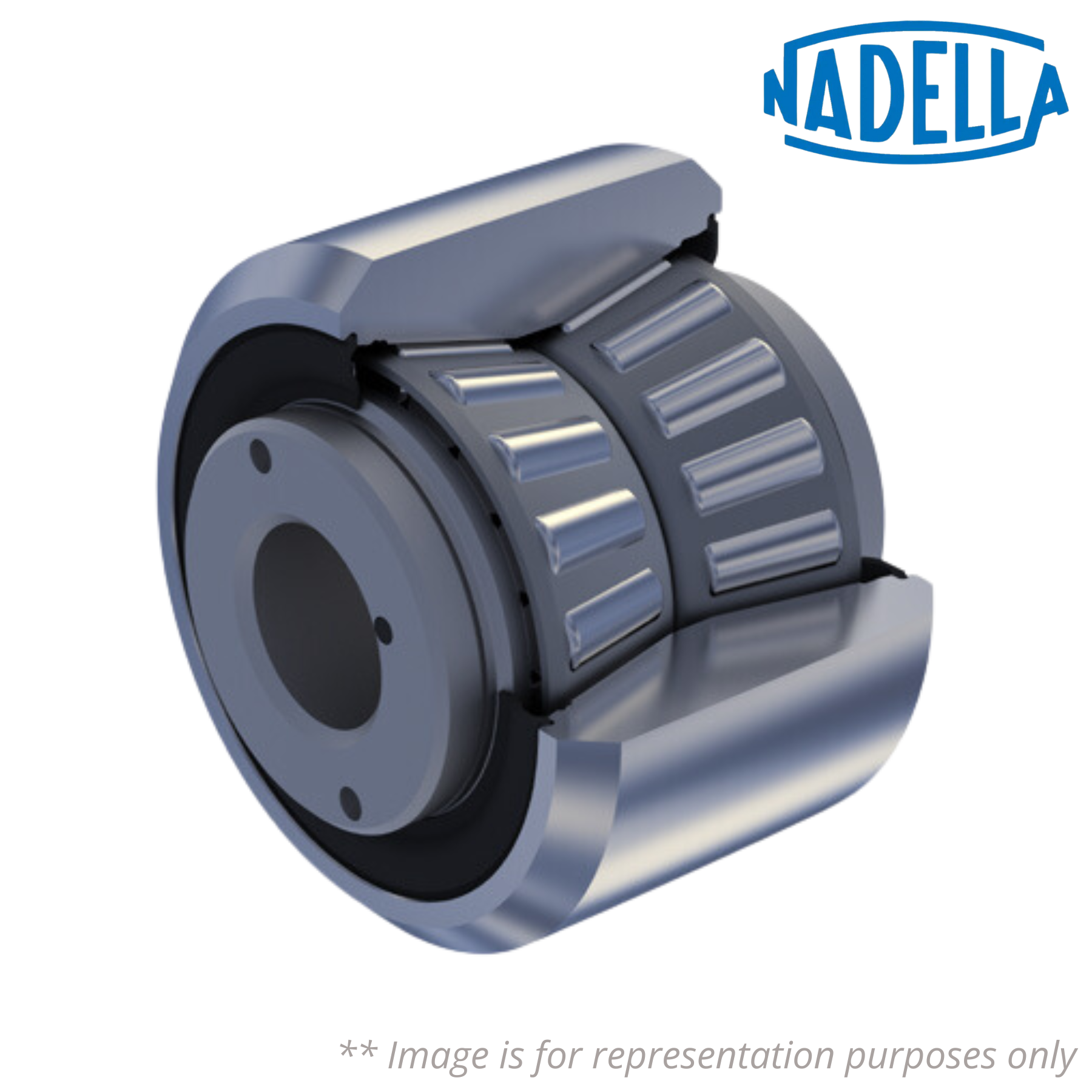

♦♦ Images are for representation purposes only
