Description
Brand - NADELLA
Item Number - FK 72 C NADELLA
Category - Guide Wheel with Tapered Roller Bearing

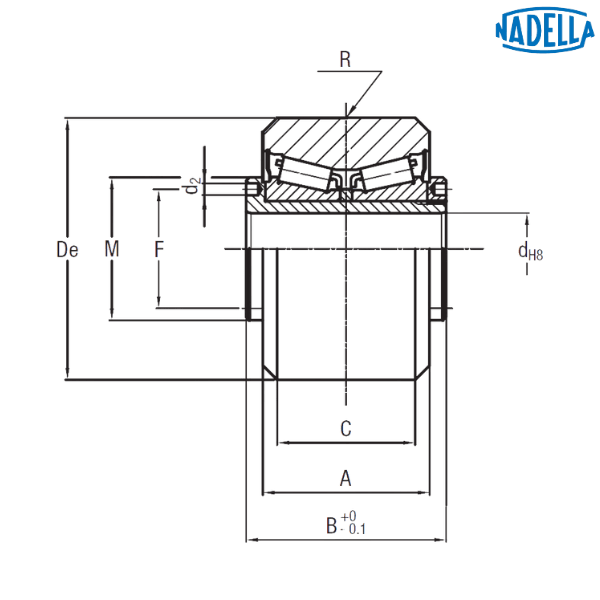

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 72 mm
Dimension (d) - 25 mm
Dimension (A) - 45
Dimension (B) - 56 mm
Dimension (C) - 33 mm
Dimension (R) - 1200 mm
Dimension (F) - 37 mm
Dimension (d2) - 4 mm
Dimension (M) - 44 mm
Dynamic Load Rating (Cw*) - 69000 N
Radial Limit Load (Fr) - 31300 N
Weight - 1.2 kg
Description of Suffixes and Prefixes:
FK - Guide roller with tapered roller bearings for GP rails of Heavy-Line system
C - Rail composed by an aluminium body and one shaft in steel, with a single raceway for Base-Line system
Other salient points to be noted:
• On request, the guide rollers can be supplied with external parts in stainless steel (suffix NX) and with Viton seals for operating temperatures up to 120°C (suffix V, not available for dimension FK 110 C). Internal rolling elements in standard bearing steel
• To prevent rotation between roller and shaft a pin can be fitted in one of the holes “d2” positioned in the side flange
• Standard seals: material NBR, RS type
* Cw = basic load for 100 km

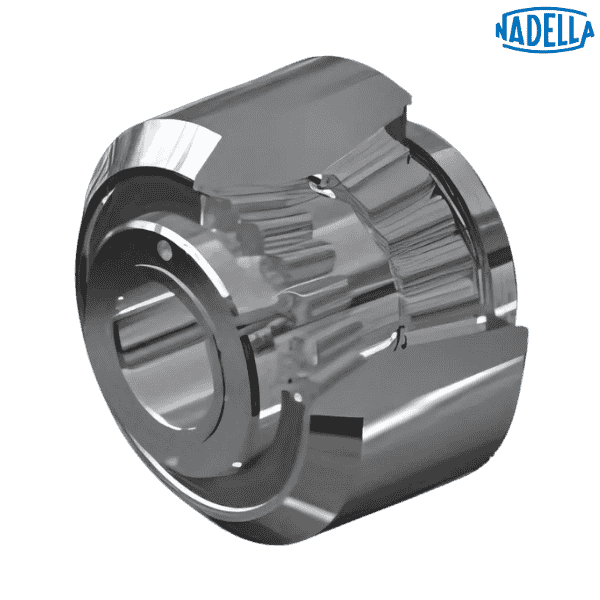

♦ ♦ Images are for representation purposes only
