FK 62C NADELLA

Brand - NADELLA
Item Number - FK 62C NADELLA
Category - Guide Wheels with Tapered Roller Bearing
Also Known As - FK62C

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 62 mm
Recommended Tolerance of the Clamping Pivot (d) * - 20 mm
Dimension (B) - 45 mm
Dimension (A) - 37 mm
Dimension (C) - 29 mm
Dimension (M) - 29 mm
Dimension (F) - 3 mm
Dimension (d2) - 35 mm
Dimension (R) - 800 mm
Load Coefficient of the Calculation for the Duration with Base 1 Million Revs (Cw) ** - 39000 N
Coefficient of the Calculation for the Duration with Base 100 km (Cw) *** - 48000 N
Dynamic Load Limit (Fr) - 22100 N
Static Load Limit (For) - 40000 N
Weight - 0.6 kg

Other salient points to be noted:
* Recommended tolerance of the clamping pivot: h7 (free coupling)
** Coefficient of the calculation for the duration with base 1 million revs
*** Coefficient of the calculation for the duration with base 100 km

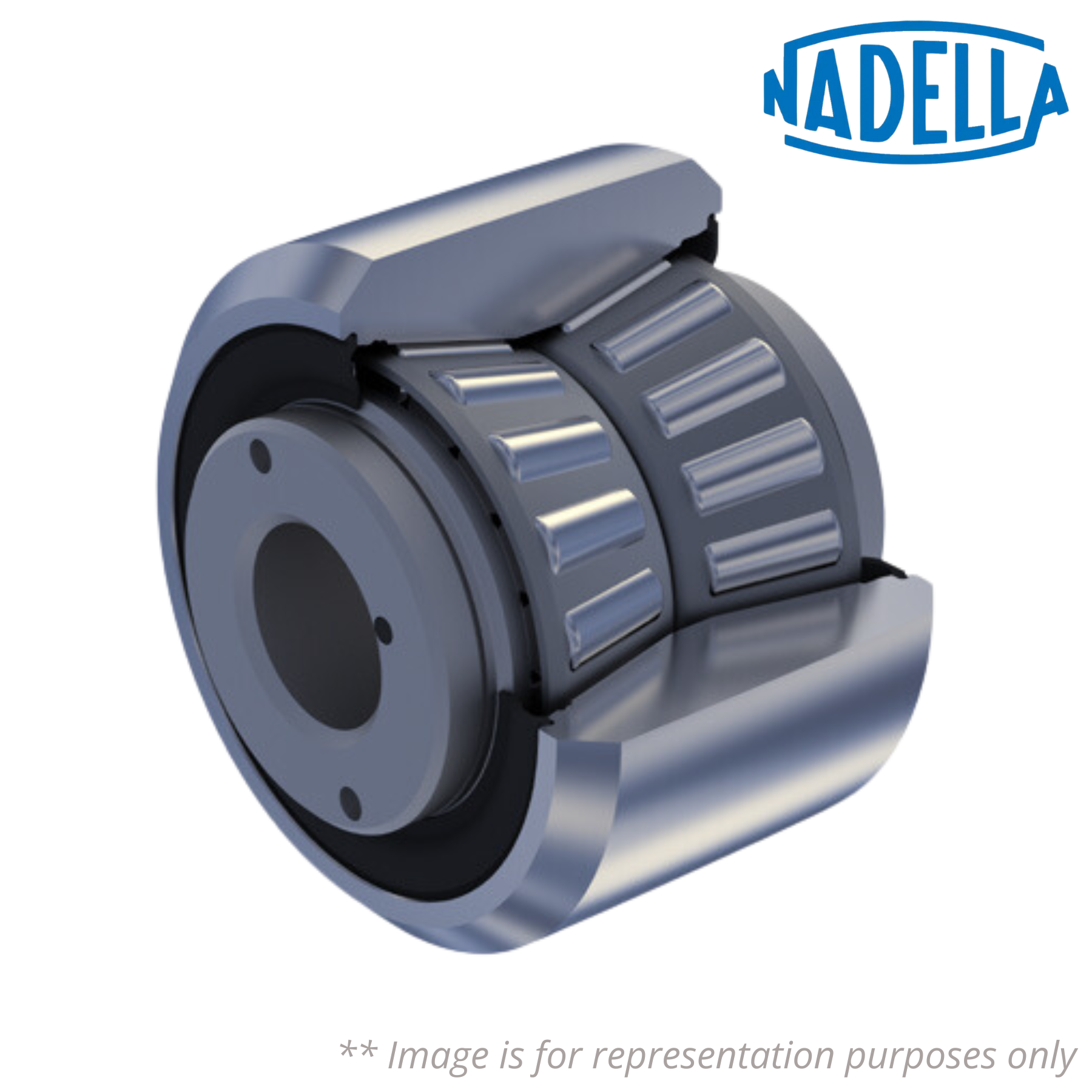

♦♦ Images are for representation purposes only
