Description
Brand - NADELLA
Item Number - FK 62 C NADELLA
Category - Guide Wheel with Tapered Roller Bearing

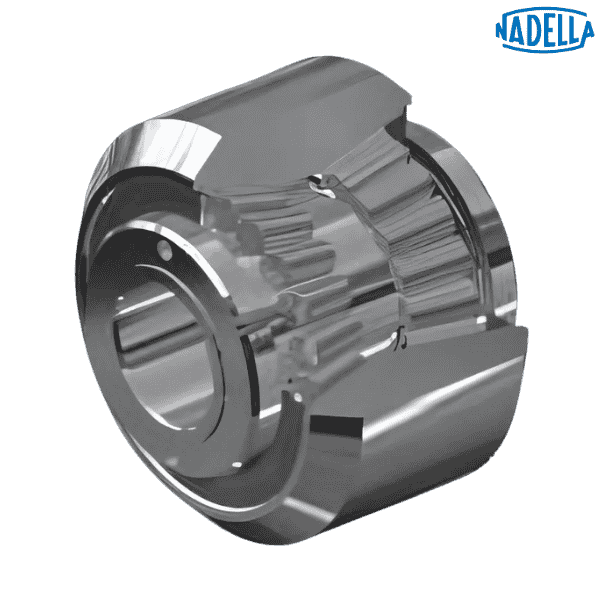

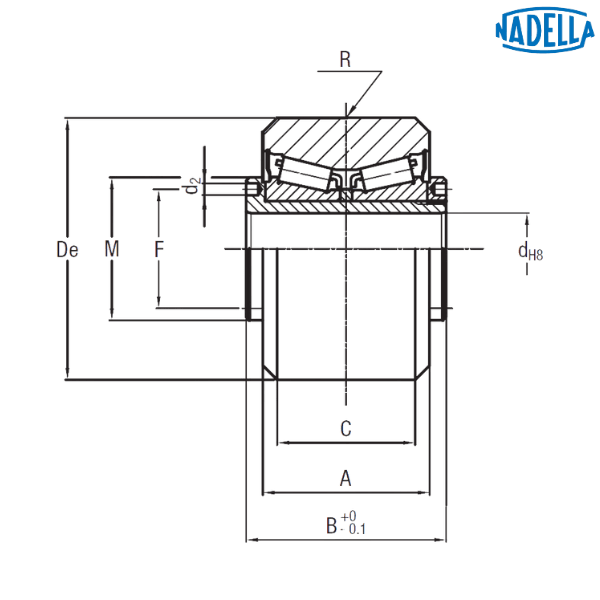

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 62 mm
Dimension (d) - 20 mm
Dimension (A) - 37
Dimension (B) - 45 mm
Dimension (C) - 29 mm
Dimension (R) - 800 mm
Dimension (F) - 29 mm
Dimension (d2) - 3 mm
Dimension (M) - 35 mm
Dynamic Load Rating (Cw*) - 48000 N
Radial Limit Load (Fr) - 22100 N
Weight - 0.6 kg
Description of Suffixes and Prefixes:
FK - Guide roller with tapered roller bearings for GP rails of Heavy-Line system
C - Rail composed by an aluminium body and one shaft in steel, with a single raceway for Base-Line system
Other salient points to be noted:
• On request, the guide rollers can be supplied with external parts in stainless steel (suffix NX) and with Viton seals for operating temperatures up to 120°C (suffix V, not available for dimension FK 110 C). Internal rolling elements in standard bearing steel
• To prevent rotation between roller and shaft a pin can be fitted in one of the holes “d2” positioned in the side flange
• Standard seals: material NBR, RS type
* Cw = basic load for 100 km
