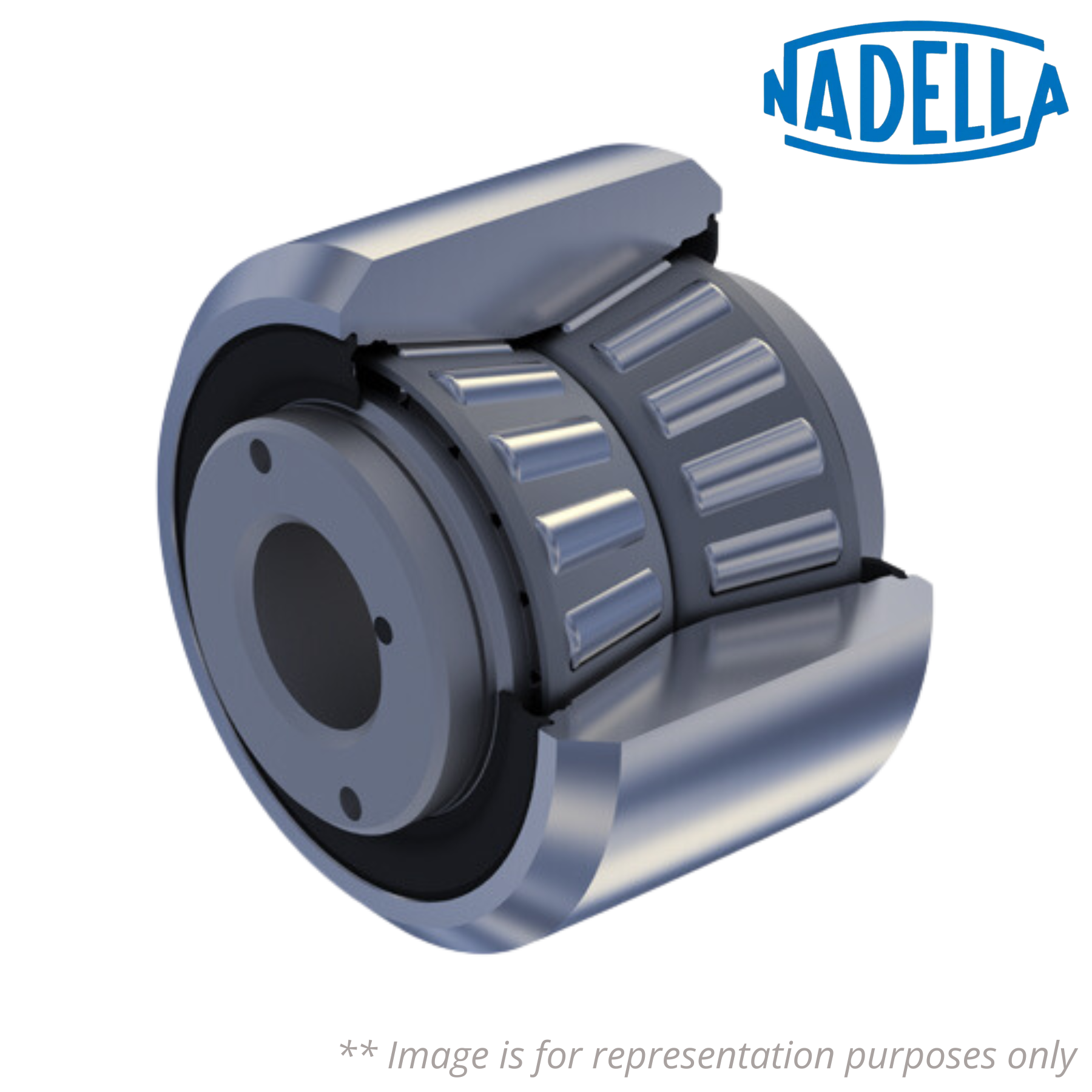

FK 52CNX NADELLA

Brand - NADELLA
Item Number - FK 52CNX NADELLA
Category - Guide Wheels with Tapered Roller Bearing
Also Known As - FK52CNX

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 52 mm
Recommended Tolerance of the Clamping Pivot (d) * - 15 mm
Dimension (B) - 42 mm
Dimension (A) - 35 mm
Dimension (C) - 29 mm
Dimension (M) - 25 mm
Dimension (F) - 2.5 mm
Dimension (d2) - 30 mm
Dimension (R) - 800 mm
Load Coefficient of the Calculation for the Duration with Base 1 Million Revs (Cw) ** - 36000 N
Coefficient of the Calculation for the Duration with Base 100 km (Cw) *** - 42000 N
Dynamic Load Limit (Fr) - 11900 N
Static Load Limit (For) - 22000 N
Weight - 0.5 kg

Description of Suffix:
NX - Guide Rollers with External Parts with stainless Steel

Other salient points to be noted:
* Recommended tolerance of the clamping pivot: h7 (free coupling)
** Coefficient of the calculation for the duration with base 1 million revs
*** Coefficient of the calculation for the duration with base 100 km

♦♦ Images are for representation purposes only
