FHRY-500-A CARTER


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - CARTER
Item Number - FHRY-500-A CARTER
Category - Flanged Yoke High Roller

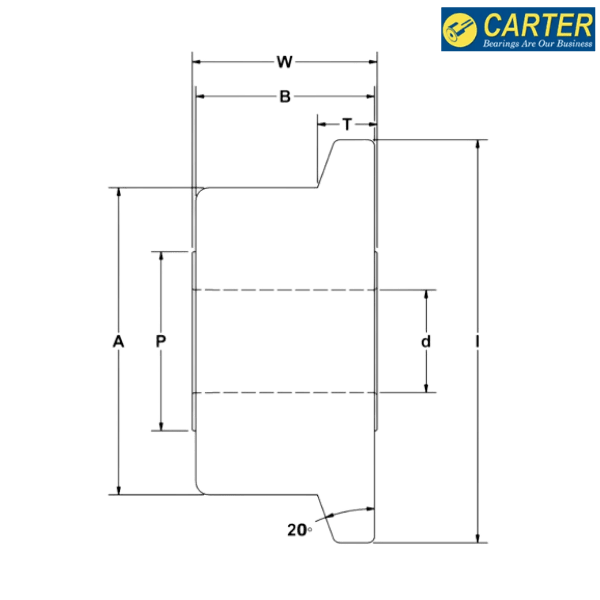

Imperial :
Roller Outer Diameter (A) inch - 5
Roller Width (B) inch - 2.75
Flange Diameter (I) inch - 5.9375
Flange Width (T) inch - 0.72
Bore Diameter (D) inch - 1.75
Overall Width (W) inch - 2.875
Endplate Diameter (P) inch - 3.25
Maximum Static Capacity (lbf) - 51900
Basic Dynamic Rating (lbf) - 33290
Thrust Capacity (lbf) - 32500
Available With - Tapered Roller Bearing

Metric :
Roller Outer Diameter (A) mm - 127
Roller Width (B) mm - 69.85
Flange Diameter (I) mm - 150.8125
Flange Width (T) mm - 18.288
Bore Diameter (D) mm - 44.45
Overall Width (W) mm - 73.025
Endplate Diameter (P) mm - 82.55
Maximum Static Capacity (N) - 230862.618
Basic Dynamic Rating (N) - 148081.2438
Thrust Capacity (N) - 144567.15

**Images are for representation purposes only
