FH 8000 R RINGSPANN

Brand - RINGSPANN
Part Number - FH 8000 R RINGSPANN
Category - Housing Freewheels FH
Type - Hydrodynamic Roller Lift-off

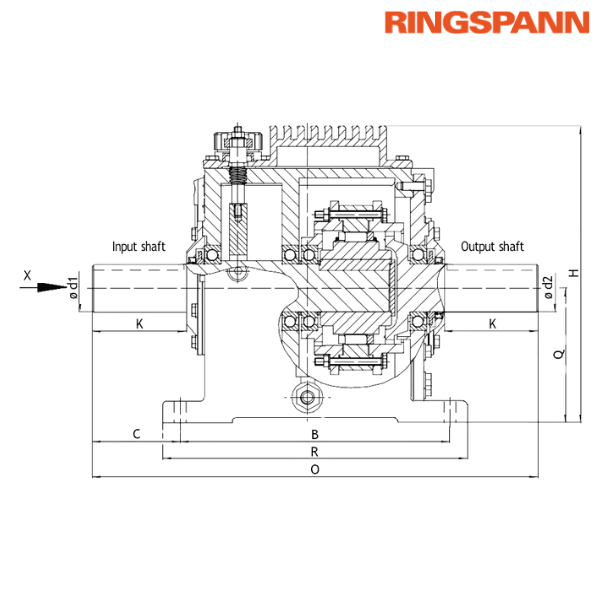

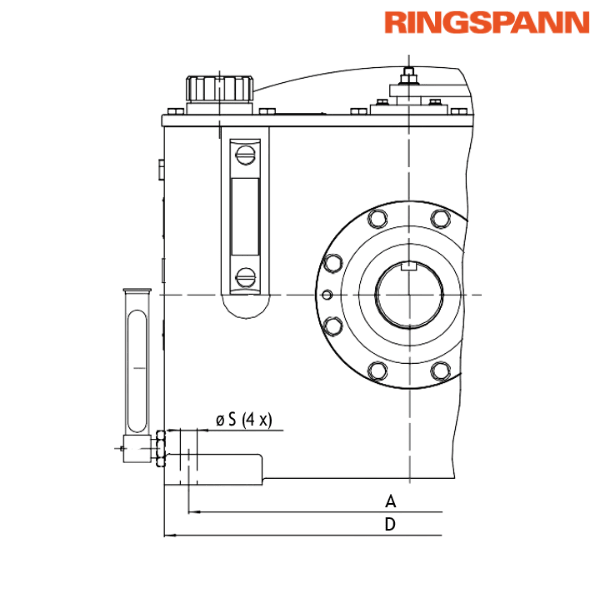

Principal Dimensions & Specifications (Imperial):
Shaft (d1 and d2) - 3.3125 inch
Dimension (A) - 17.5 inch
Dimension (B) - 18.25 inch
Dimension (C) - 5.625 inch
Dimension (D) - 21.5 inch
Dimension (H) - 18.9375 inch
Dimension (K) - 6.125 inch
Dimension (O) - 29.5 inch
Dimension (Q) - 8.625 inch
Dimension (R) - 20.5 inch
Dimension (S) - 0.8125 inch
Weight - 716 lbs
Nominal Torque (M_N) - 8000 lb-ft
Maximum Speed for Output Shaft Overruns - 3000 RPM
Maximum Speed for Input Shaft Overruns - 3000 RPM

Principal Dimensions & Load Ratings (Metric):
Shaft (d1 and d2) - 84.14 mm
Dimension (A) - 444.5 mm
Dimension (B) - 463.55 mm
Dimension (C) - 142.87 mm
Dimension (D) - 546 mm
Dimension (H) - 481 mm
Dimension (K) - 155.58 mm
Dimension (O) - 749.3 mm
Dimension (Q) - 219.08 mm
Dimension (R) - 520 mm
Dimension (S) - 21 mm
Weight - 325 kg
Nominal Torque (M_N) - 10847 Nm

Description of Suffix:
R - Hydrodynamic Roller Lift-off

Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• Keyway according to USAS B17.1-1967

Areas of Application:
• Housing Freewheels as automatic clutches in multi-motor drives fulfil here an important function
• They disengage a drive automatically as soon as it no longer provides power to the working machine
• The Housing Freewheels do not require any external operating equipment

Typical applications for multi-motor drives are:
• Generators
• Pumps
• Ventilators
• Fans
• Uninterrupted power supply

Application Example:
• Three Housing Freewheels are used in the multi-motor drive of a fresh air fan
• The fan is powered by either one or two electric motors, depending on the operating mode
• An auxiliary drive is provided to slowly rotate the fan during inspection or to ensure even cooling after shutdown

♦ ♦ Images are for representation purposes only
