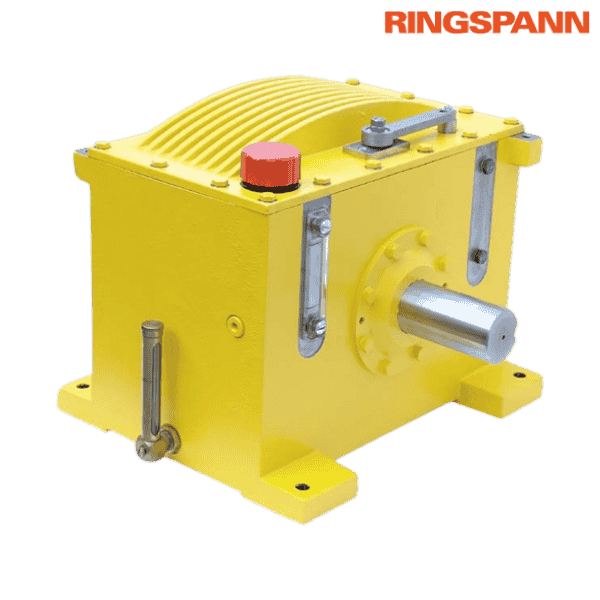

FH 2000 R RINGSPANN

Brand - RINGSPANN
Part Number - FH 2000 R RINGSPANN
Category - Housing Freewheels FH

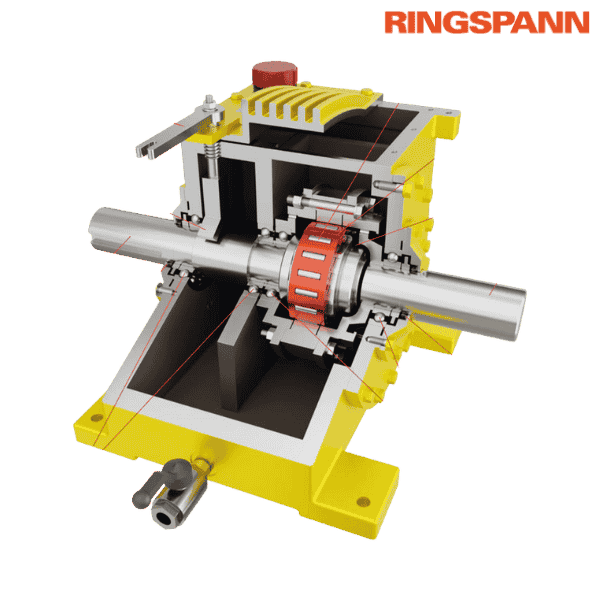

Type - Hydrodynamic Roller Lift-off

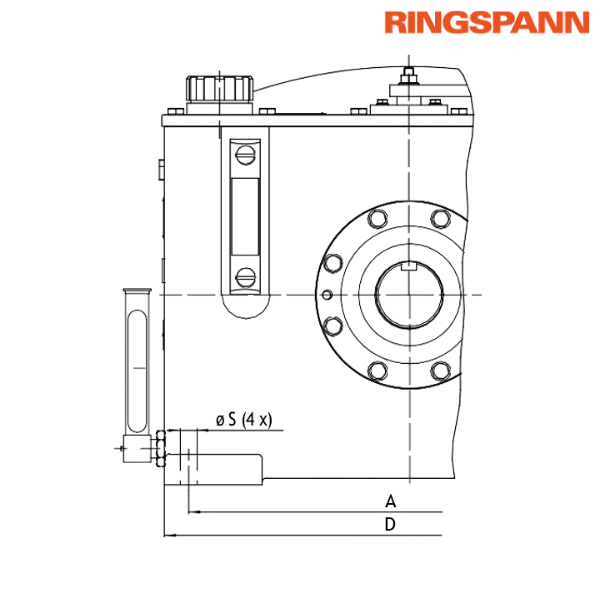

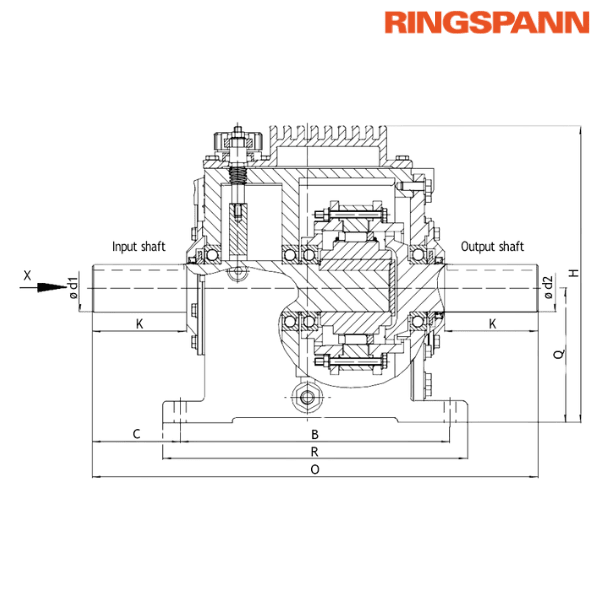

Principal Dimensions & Specifications (Imperial):
Shaft (d1 and d2) - 2.3125 inch
Dimension (A) - 16.75 inch
Dimension (B) - 14.75 inch
Dimension (C) - 4.25 inch
Dimension (D) - 18.75 inch
Dimension (H) - 15 inch
Dimension (K) - 4.625 inch
Dimension (O) - 23.25 inch
Dimension (Q) - 6.875 inch
Dimension (R) - 16.5 inch
Dimension (S) - 0.6875 inch
Weight - 355 lbs
Nominal Torque (M_N) - 2000 lb-ft
Maximum Speed for Output Shaft Overruns - 4200 RPM
Maximum Speed for Input Shaft Overruns - 4200 RPM

Principal Dimensions & Load Ratings (Metric):
Shaft (d1 and d2) - 58.74 mm
Dimension (A) - 425.45 mm
Dimension (B) - 374.65 mm
Dimension (C) - 107.95 mm
Dimension (D) - 480 mm
Dimension (H) - 381 mm
Dimension (K) - 117.48 mm
Dimension (O) - 590.55 mm
Dimension (Q) - 174.63 mm
Dimension (R) - 419.1 mm
Dimension (S) - 17.5 mm
Weight - 161 kg
Nominal Torque (M_N) - 2712 Nm

Description of Suffix:
R - Hydrodynamic Roller Lift-off

Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• Keyway according to USAS B17.1-1967

Areas of Application:
• Housing Freewheels as automatic clutches in multi-motor drives fulfil here an important function
• They disengage a drive automatically as soon as it no longer provides power to the working machine
• The Housing Freewheels do not require any external operating equipment

Typical applications for multi-motor drives are:
• Generators
• Pumps
• Ventilators
• Fans
• Uninterrupted power supply

Application Example:
• Three Housing Freewheels are used in the multi-motor drive of a fresh air fan
• The fan is powered by either one or two electric motors, depending on the operating mode
• An auxiliary drive is provided to slowly rotate the fan during inspection or to ensure even cooling after shutdown

♦ ♦ Images are for representation purposes only
