FGUL 75 130 NADELLA

Brand - NADELLA
Item Number - FGUL 75 130 NADELLA
Category - Full Complement Needle Rollers Light Weight
Also Known As - FGUL75130

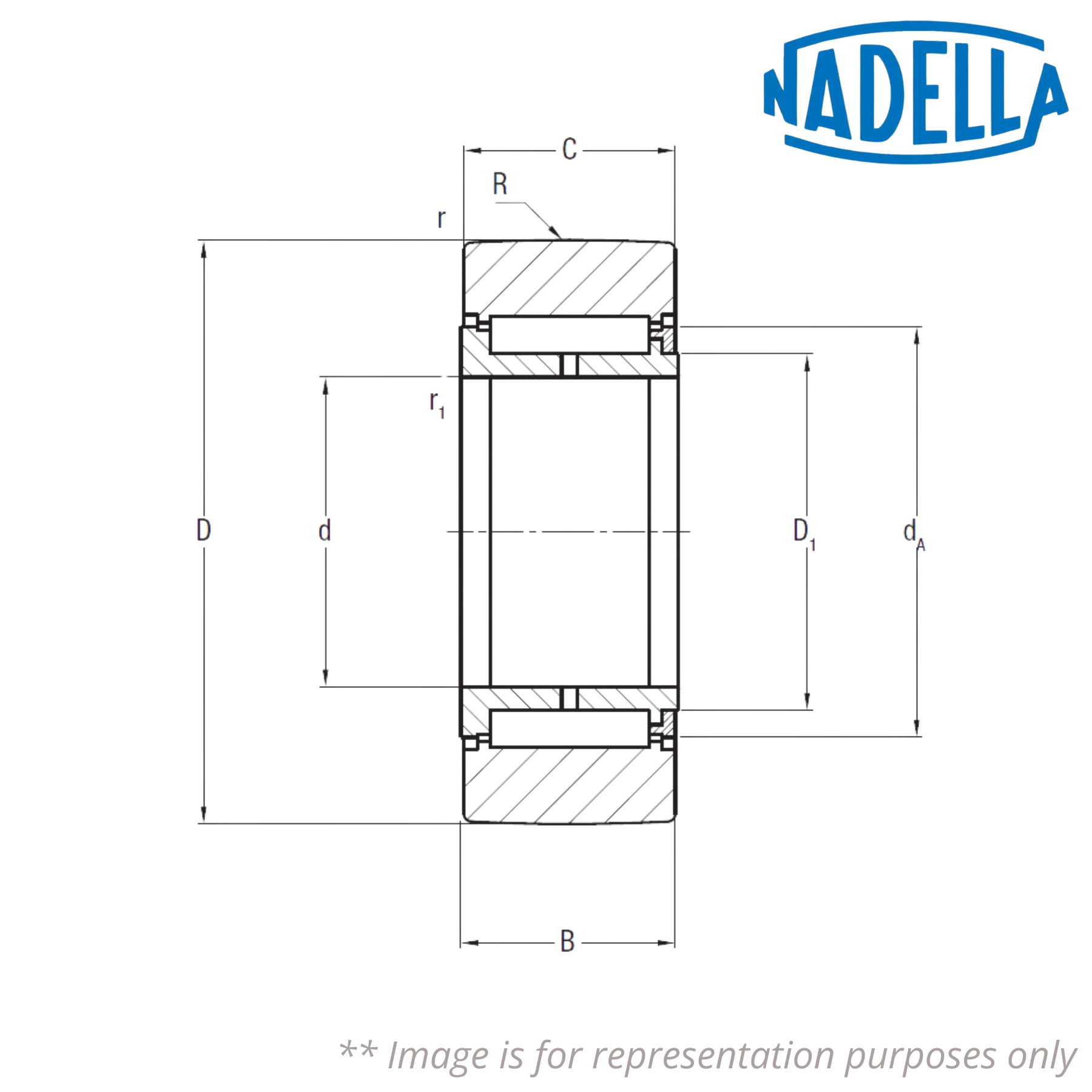

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 130 mm
Recommended Diameter for Pivot (d) - 75 mm
Dimension (B) - 42 mm
Dimension (C) - 40 mm
Dimension (D1) - 84 mm
Minimum Recommended Abutment Support Diameter (dA) * - 97 mm
Dimension (r) - 2 mm
Dimension (r1) - 0.6 mm
Load Coefficient (Cw) - 110000 N
Dynamic Load Coefficient (Fr) - 79000 N
Static Load Coefficient (For) - 130000 N
Speed Limit with Grease - 670 RPM
Weight - 2.611 kg

Description of Suffixes and Prefixes:
FGU - Cam follower without stud with optimised outer profile ring
MM - With Metal Seal

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations
** Convex radius in the central part to contact pressure calculation

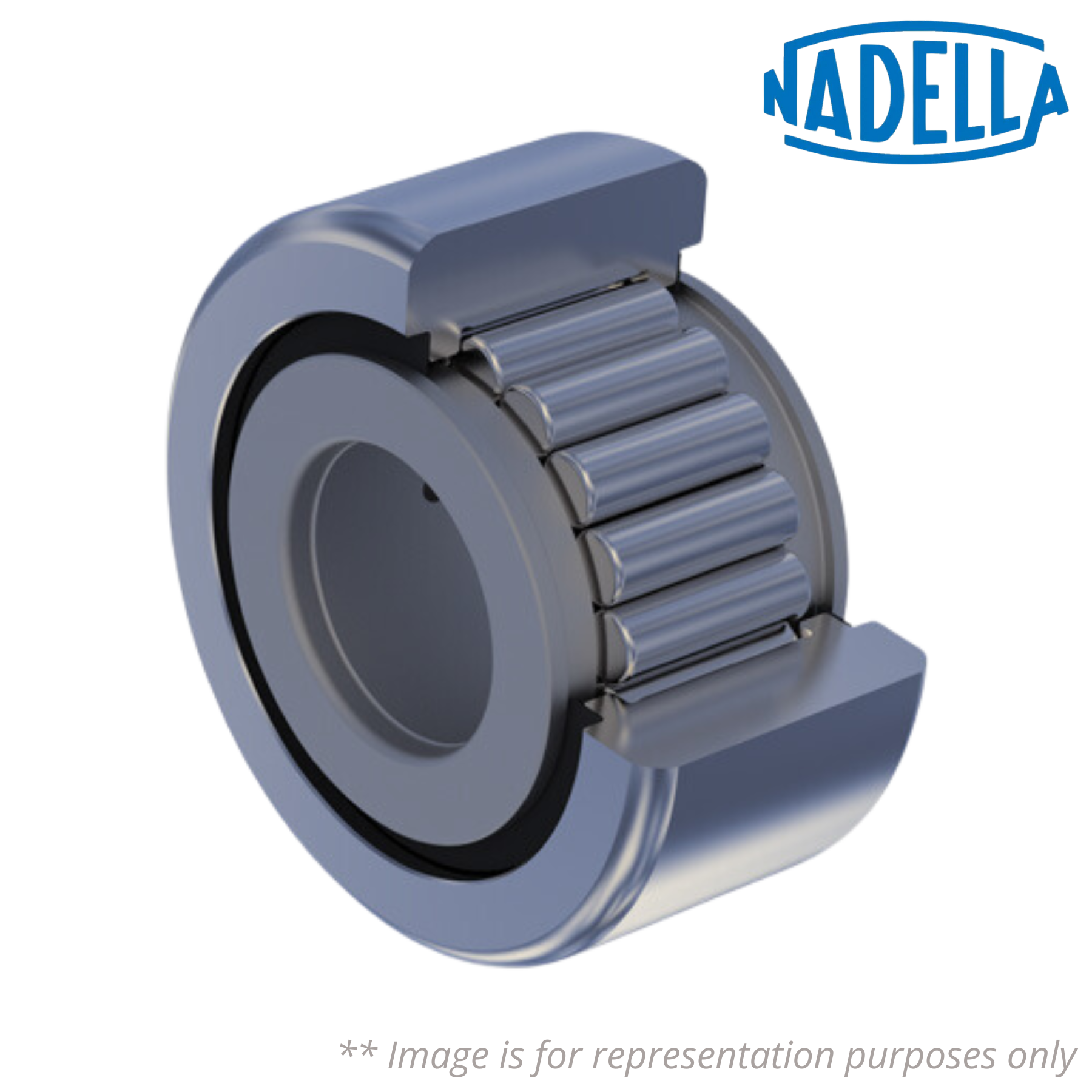

♦♦ Images are for representation purposes only
