FGUL 45 85 MM NADELLA

Brand - NADELLA
Item Number - FGUL 45 85 MM NADELLA
Category - Full Complement Needle Rollers Light Weight
Also Known As - FGUL4585MM

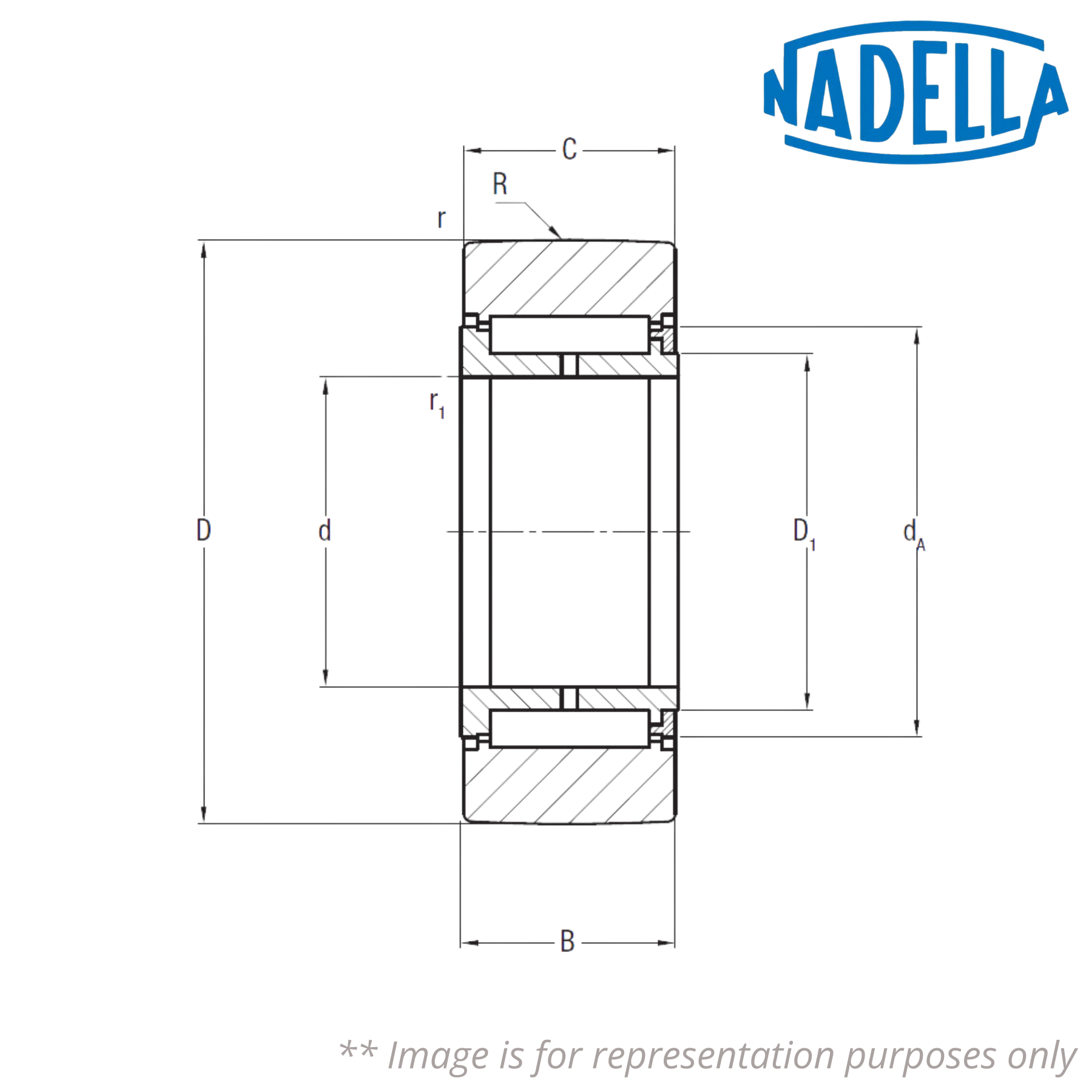

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 85 mm
Recommended Diameter for Pivot (d) - 45 mm
Dimension (B) - 32 mm
Dimension (C) - 30 mm
Dimension (D1) - 54 mm
Minimum Recommended Abutment Support Diameter (dA) * - 63.1 mm
Dimension (r) - 1.5 mm
Dimension (r1) - 0.6 mm
Load Coefficient (Cw) - 59000 N
Dynamic Load Coefficient (Fr) - 38000 N
Static Load Coefficient (For) - 62000 N
Speed Limit with Grease - 890 RPM
Weight - 0.895 kg

Description of Suffixes and Prefixes:
FGUL - Cam follower with cylindrical outer ring
MM - With Metal Seal

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations
** Convex radius in the central part to contact pressure calculation

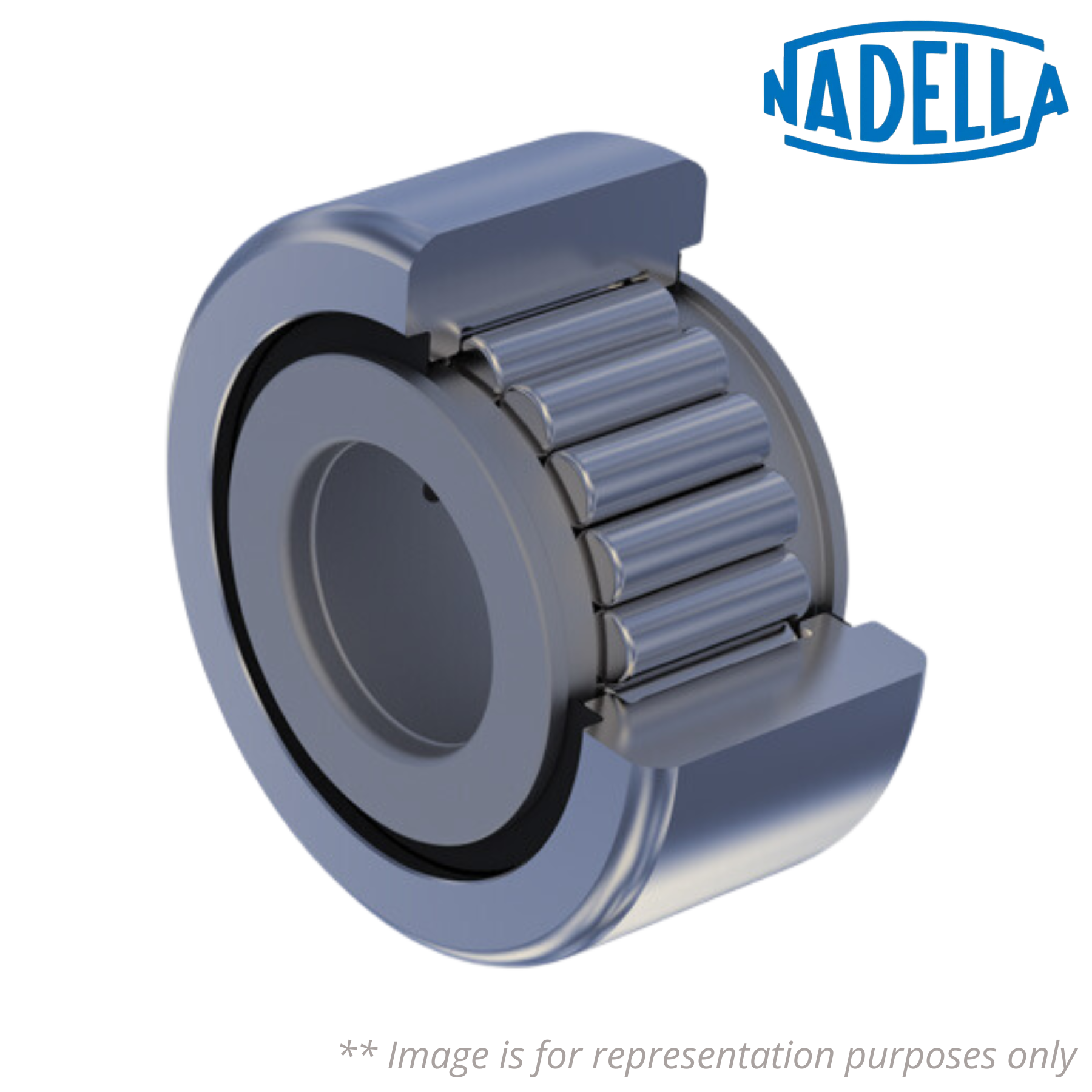

♦♦ Images are for representation purposes only
