FGUL 30 72 MM NADELLA

Brand - NADELLA
Item Number - FGUL 30 72 MM NADELLA
Category - Full Complement Needle Rollers Heavy Weight
Also Known As - FGUL3072MM

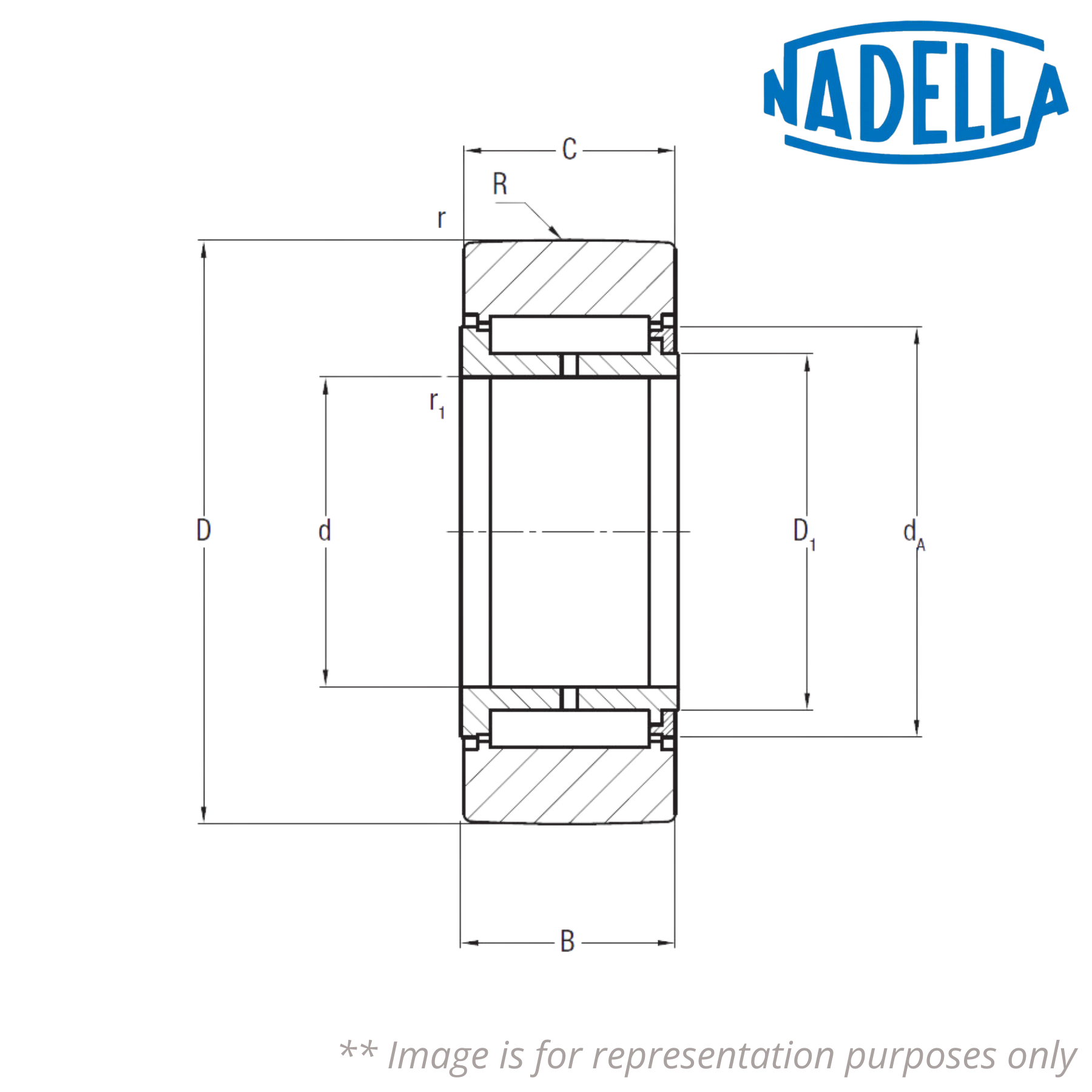

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 72 mm
Recommended Diameter for Pivot (d) - 30 mm
Dimension (B) - 29 mm
Dimension (C) - 28 mm
Dimension (D1) - 36.8 mm
Minimum Recommended Abutment Support Diameter (dA) * - 45.9 mm
Dimension (r) - 1 mm
Dimension (r1) - 0.3 mm
Load Coefficient (Cw) - 58000 N
Dynamic Load Coefficient (Fr) - 70000 N
Static Load Coefficient (For) - 76000 N
Speed Limit with Grease - 1200 RPM
Weight - 0.7 kg

Description of Suffixes and Prefixes:
FGUL - Cam follower with cylindrical outer ring
MM - With Metal Seal

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations
** Convex radius in the central part to contact pressure calculation

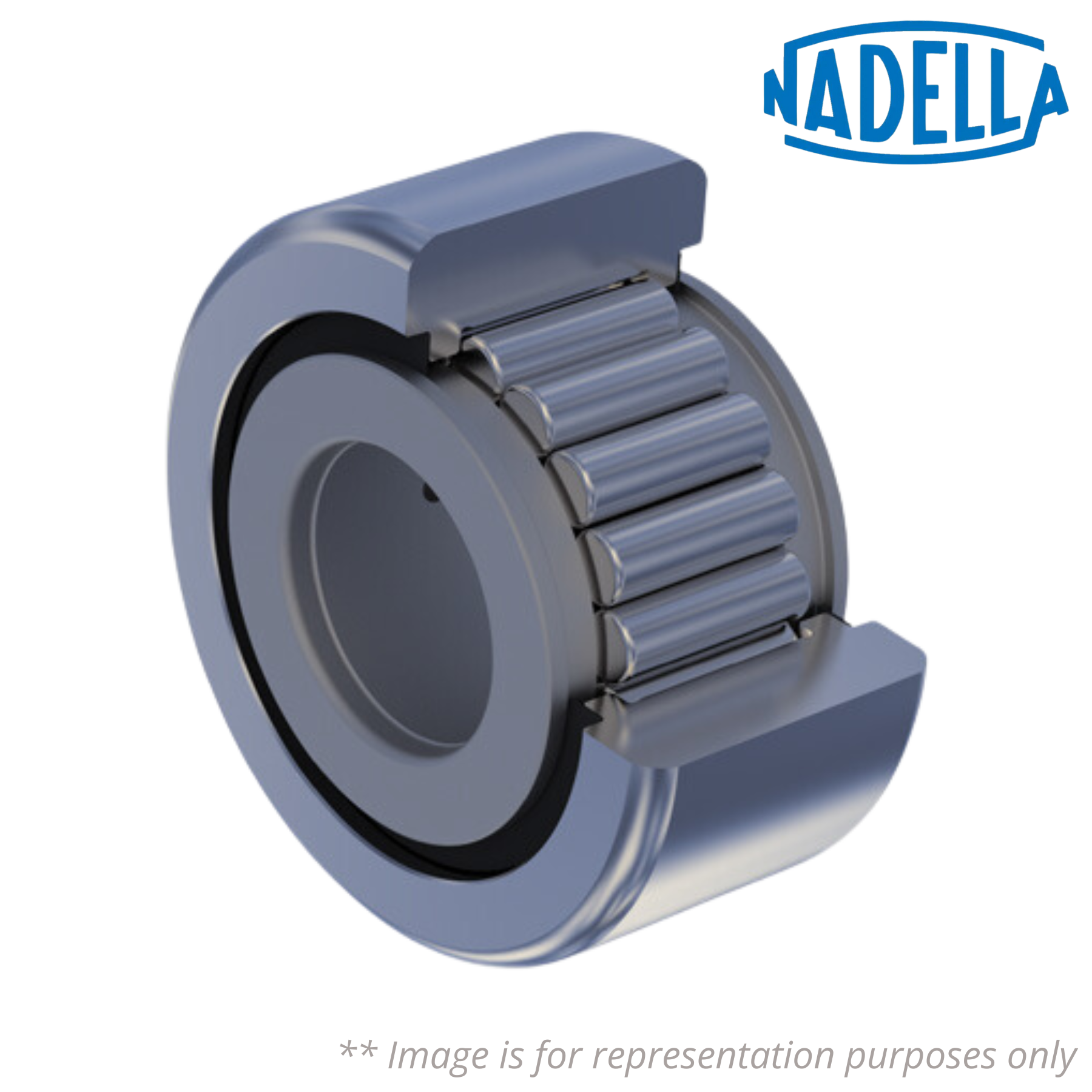

♦♦ Images are for representation purposes only
