FGUL 17 47 NADELLA

Brand - NADELLA
Item Number - FGUL 17 47 NADELLA
Category - Full Complement Needle Rollers Heavy Weight
Also Known As - FGUL1747

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 47 mm
Recommended Diameter for Pivot (d) - 17 mm
Dimension (B) - 21 mm
Dimension (C) - 20 mm
Dimension (D1) - 22 mm
Minimum Recommended Abutment Support Diameter (dA) * - 28 mm
Dimension (r) - 1 mm
Dimension (r1) - 0.3 mm
Load Coefficient (Cw) - 25000 N
Dynamic Load Coefficient (Fr) - 30000 N
Static Load Coefficient (For) - 30000 N
Speed Limit with Grease - 2000 RPM
Weight - 0.22 kg

Description of Suffixes and Prefixes:

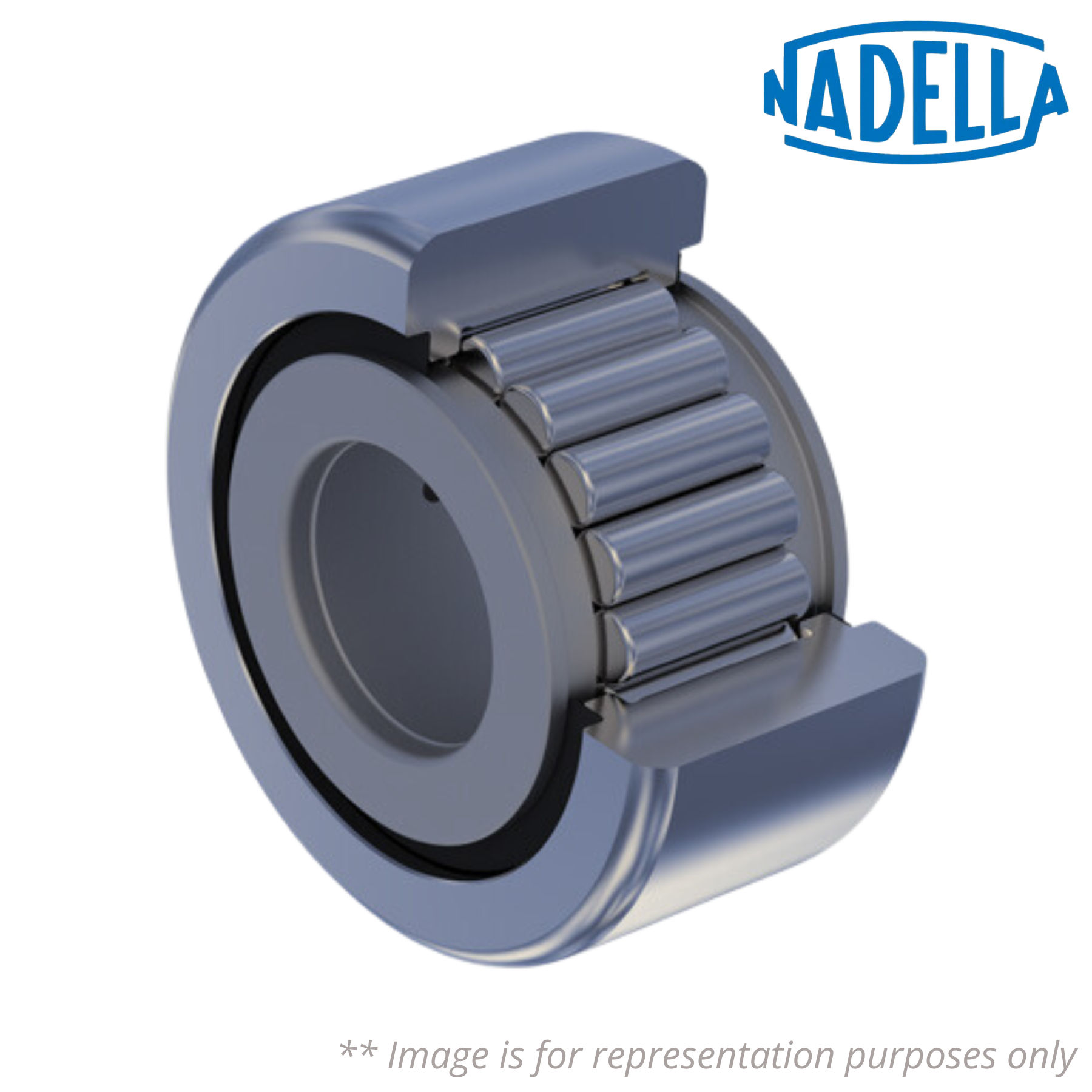

FGU - Cam follower without stud with optimised outer profile ring
MM - With Metal Seal

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations
** Convex radius in the central part to contact pressure calculation

♦♦ Images are for representation purposes only
