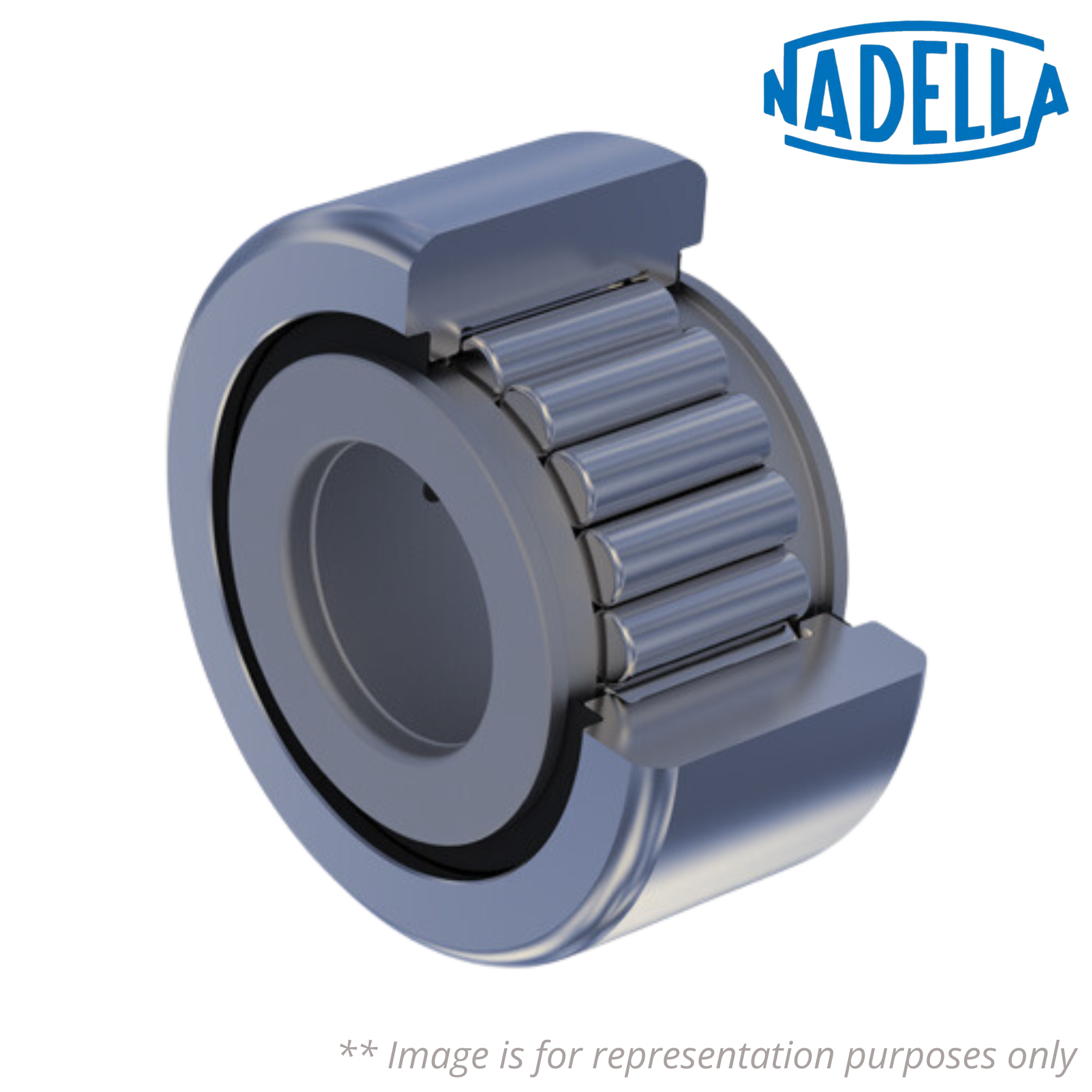

FGUL 17 40 MM NADELLA

Brand - NADELLA
Item Number - FGUL 17 40 MM NADELLA
Category - Full Complement Needle Rollers Light Weight
Also Known As - FGUL1740MM

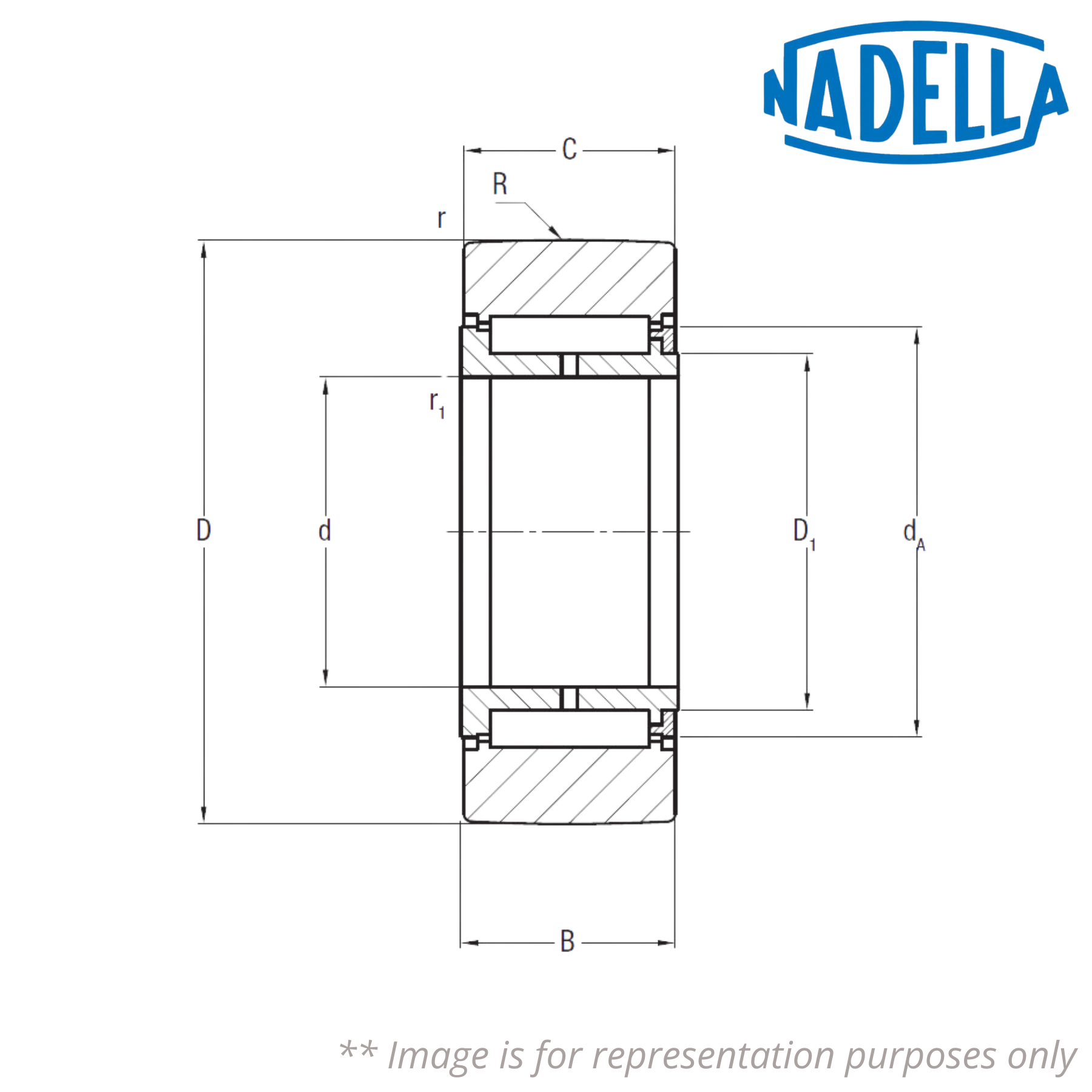

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 40 mm
Recommended Diameter for Pivot (d) - 17 mm
Dimension (B) - 21 mm
Dimension (C) - 20 mm
Dimension (D1) - 22 mm
Minimum Recommended Abutment Support Diameter (dA) * - 28 mm
Dimension (r) - 1 mm
Dimension (r1) - 0.3 mm
Load Coefficient (Cw) - 19000 N
Dynamic Load Coefficient (Fr) - 15000 N
Static Load Coefficient (For) - 21000 N
Speed Limit with Grease - 2000 RPM
Weight - 0.142 kg

Description of Suffixes and Prefixes:
FGUL - Cam follower with cylindrical outer ring
MM - With Metal Seal

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations
** Convex radius in the central part to contact pressure calculation

♦♦ Images are for representation purposes only
