FGUL 150 270 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FGUL 150 270 NADELLA
Category - Full Complement Needle Rollers Light Weight
Also Known As - FGUL150270
Outer Diameter (D) mm - 270
Recommended Diameter for Pivot (d) mm - 150
B (mm) - 78
C (mm) - 75
D1 (mm) - 162
Minimum Recommended Abutment Support Diameter (dA) mm - 179.5
r (mm) - 3
r1 (mm) - 1.5
Load Coefficient (Cw) N - 430000
Dynamic Load Coefficient (Fr) N - 590000
Static Load Coefficient (For) N - 810000
Speed Limit with Grease (min-1) - 310
Weight (kg) - 20.014

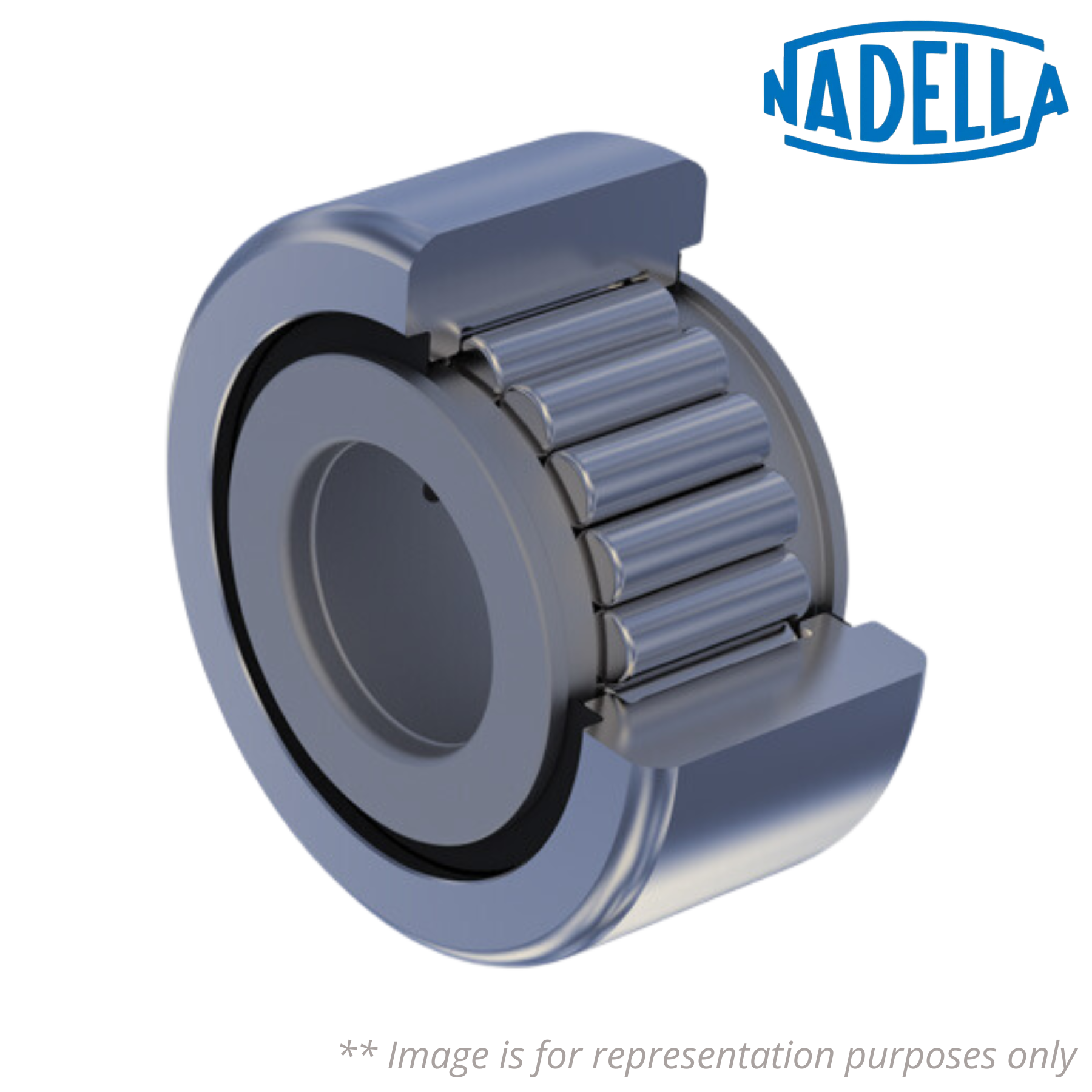

FGUL - Cam Follower without Stud with Cylindrical Outer Ring
Seal - No Seal
