FGU 35 80 MM NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FGU 35 80 MM NADELLA
Category - Full Complement Needle Rollers Heavy Weight
Also Known As - FGU3580MM

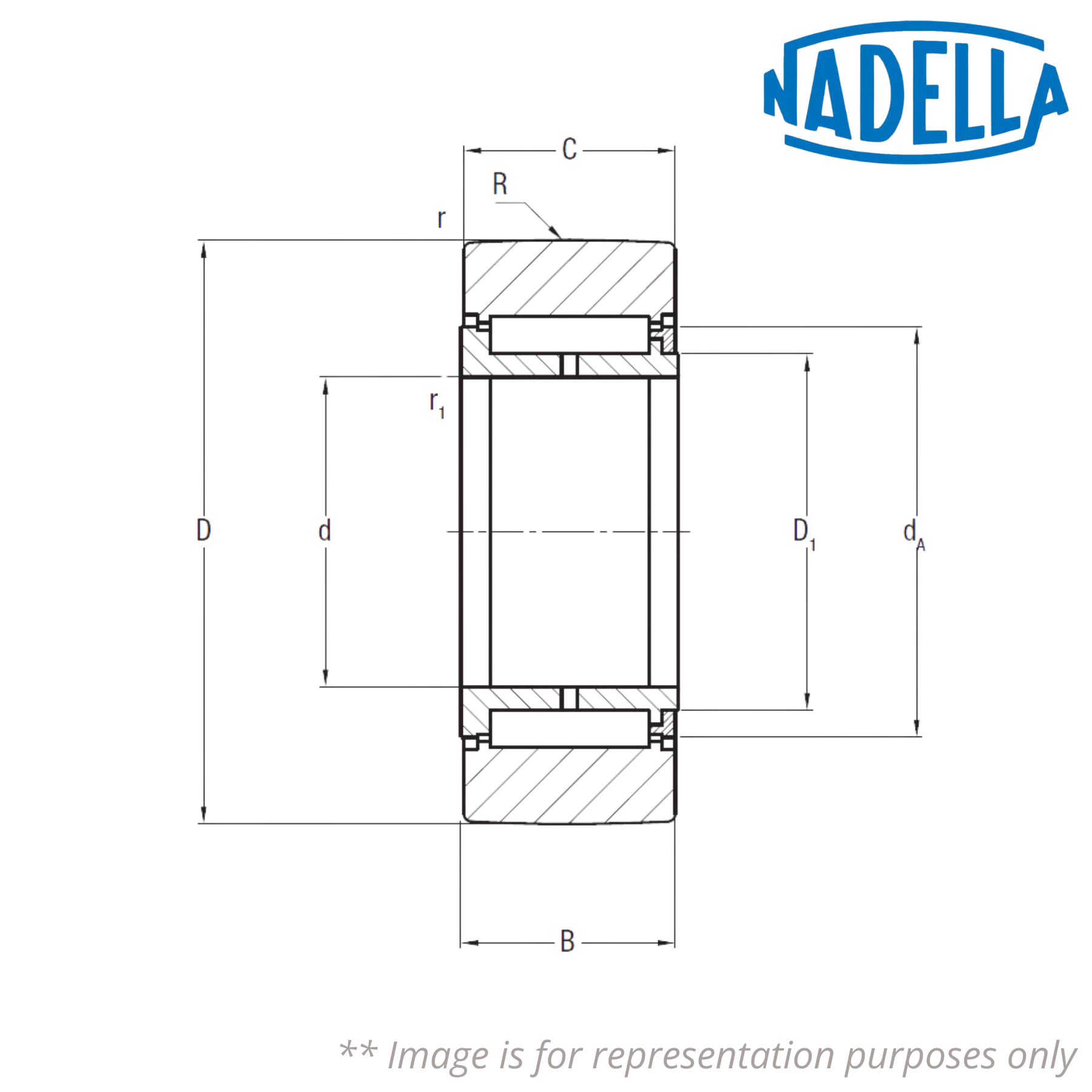

Outer Diameter (D) mm - 80
Recommended Diameter for Pivot (d) mm - 35
B (mm) - 29
C (mm) - 28
D1 (mm) - 44
Minimum Recommended Abutment Support Diameter (dA) mm - 53.6
r (mm) - 1
r1 (mm) - 0.6
Convex Radius (R) mm - 640
Load Coefficient (Cw) N - 64000
Dynamic Load Coefficient (Fr) N - 88000
Static Load Coefficient (For) N - 88000
Speed Limit with Grease (min-1) - 1100
Weight (kg) - 0.73

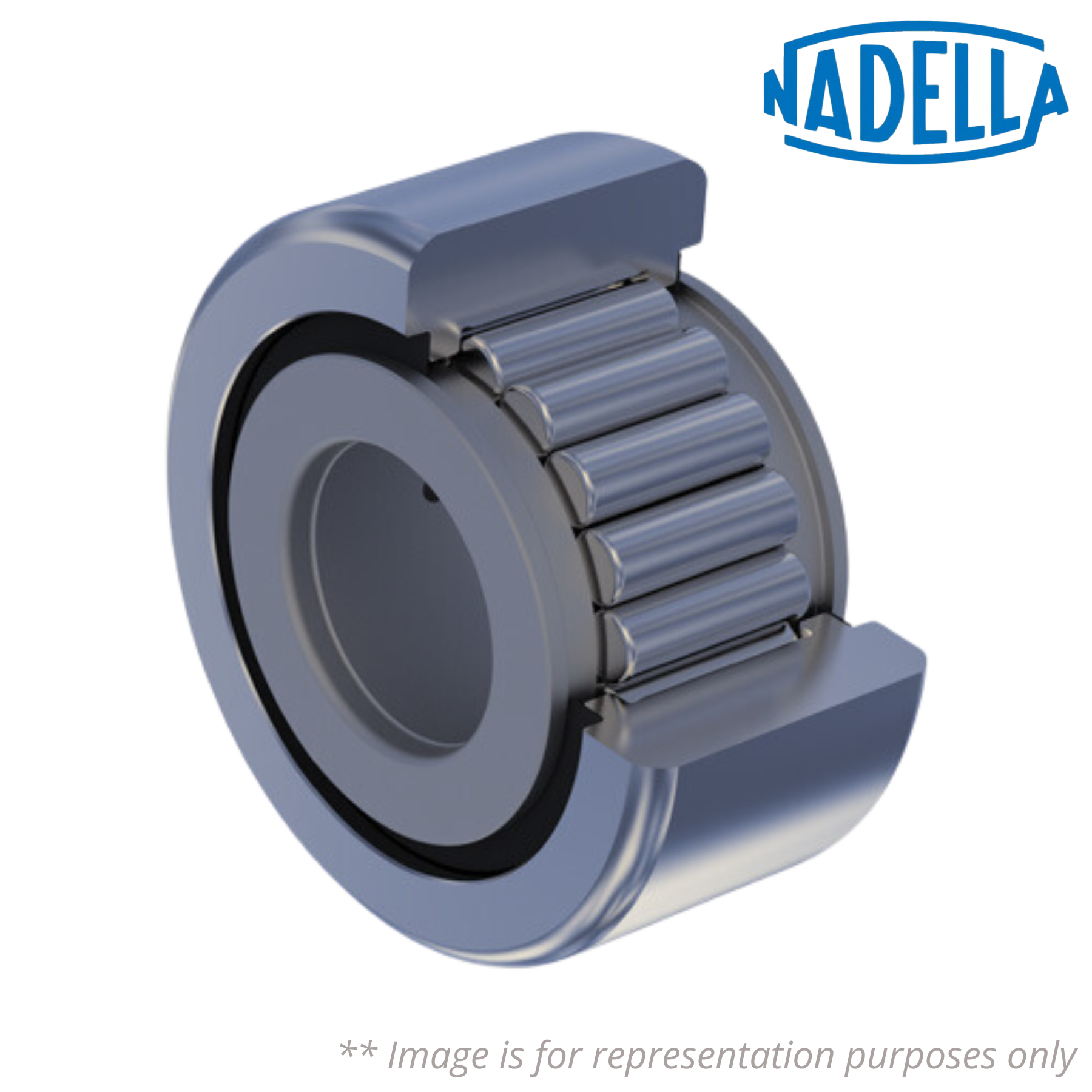

FGU - Cam Follower without Stud with Optimised Outer Profile Ring
MM - With Metal Seal
