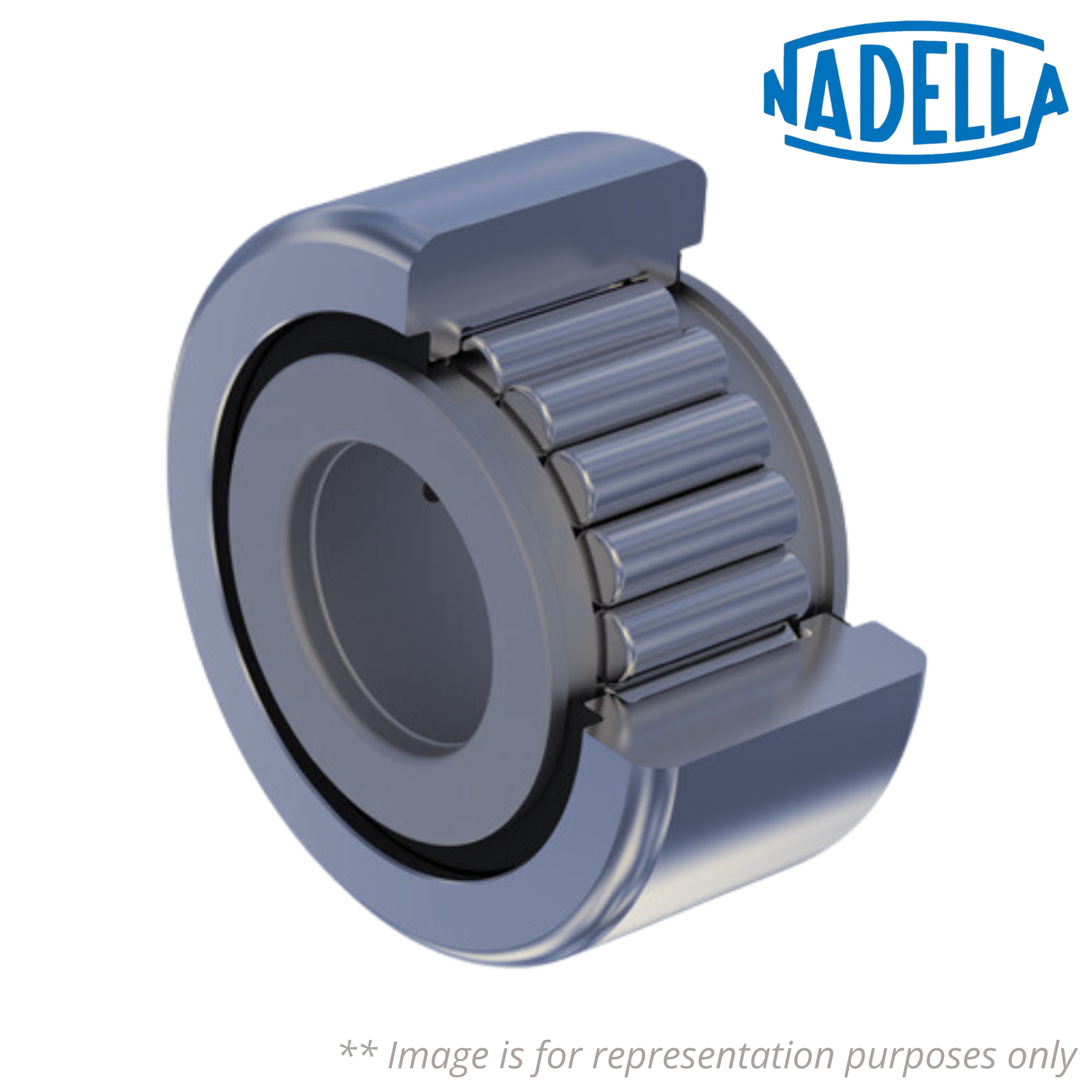

FGU 15 35 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FGU 15 35 NADELLA
Category - Full Complement Needle Rollers Light Weight
Also Known As - FGU1535

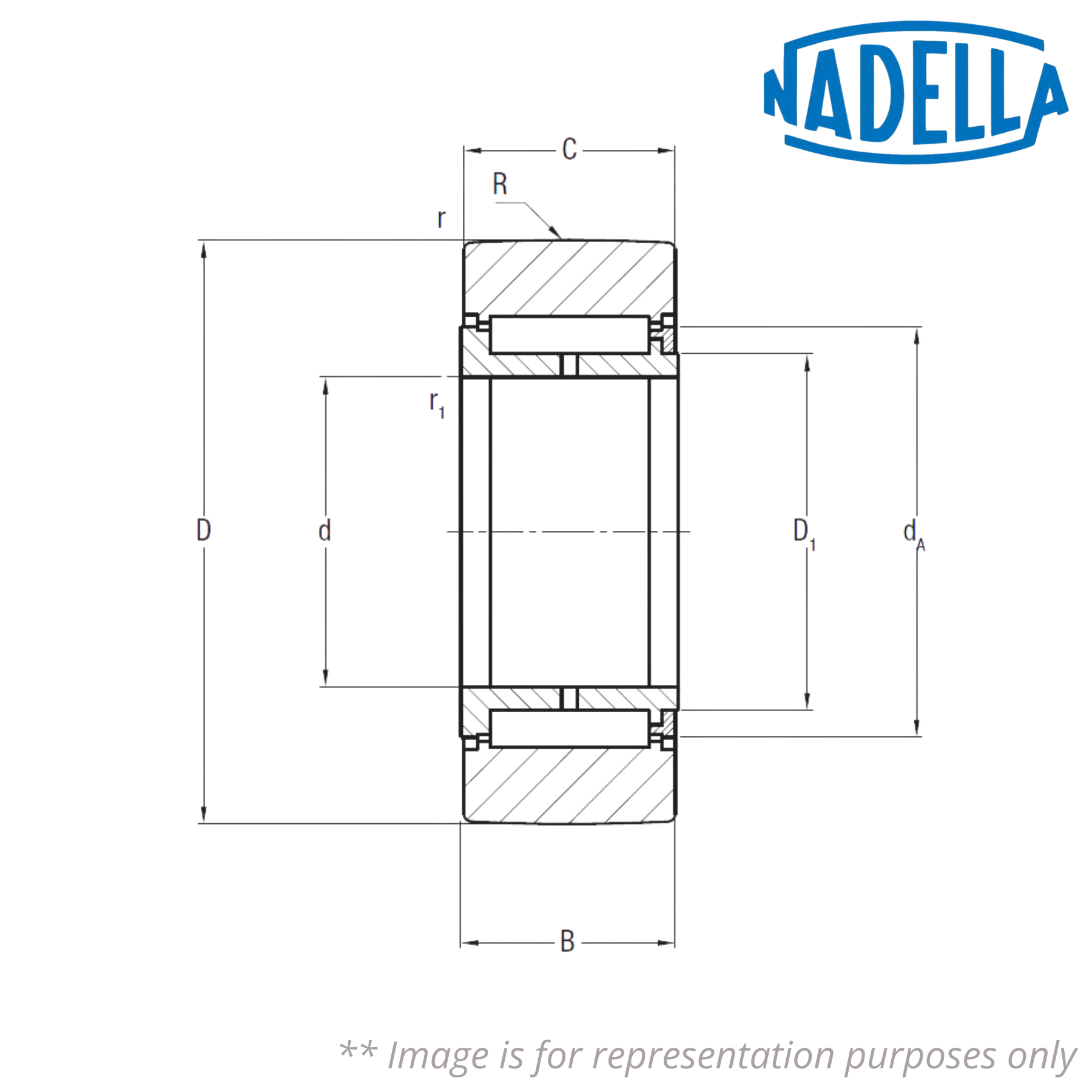

Outer Diameter (D) mm - 35
Recommended Diameter for Pivot (d) mm - 15
B (mm) - 19
C (mm) - 18
D1 (mm) - 19
Minimum Recommended Abutment Support Diameter (dA) mm - 25.4
r (mm) - 1
r1 (mm) - 0.3
Convex Radius (R) mm - 320
Load Coefficient (Cw) N - 15000
Dynamic Load Coefficient (Fr) N - 8100
Static Load Coefficient (For) N - 13000
Speed Limit with Grease (min-1) - 2200
Weight (kg) - 0.099
FGU - Cam Follower without Stud with Optimised Outer Profile Ring
Seal - No Seal
