Description
Brand - RINGSPANN
Part Number - FGR 150 R A2A3 RINGSPANN
Category - Complete Freewheels FGR...R A2A3

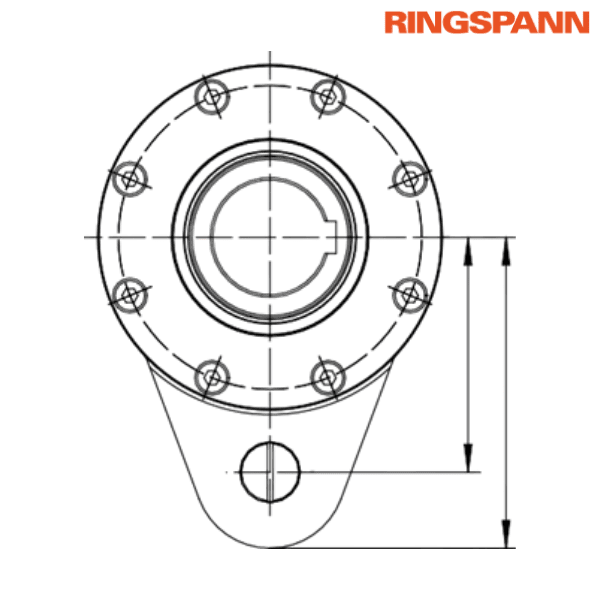

Principal Dimensions & Specifications (Metric):
Bore Diameter (d) - 150 mm
Dimension (D) - 400 mm
Dimension (E) - 60 mm
Dimension (F) - 1 mm
Dimension (H) - 325 mm
Dimension (L) - 246 mm
Dimension (N) - 55 mm
Dimension (O) - 286 mm
Dimension (P) - 68 mm
Dimension (Q) - 255 mm
Dimension (S) - 20 mm
Weight - 214 kg
Type - Standard Type for Universal Use (R)
Nominal Torque (MN) - 68000 Nm
Maximum Speed of Inner Ring Freewheels - 200 RPM
Description of Suffixes:
R - Standard Type for Universal Use
A2A3 - Lever Arm and Cover Combination
Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• Tolerance of keyway width JS10
• Keyway according to DIN 6885
Features:
• Complete Freewheels FGR … R A2A3 with lever arm are sealed roller freewheels equipped with ball bearings
• Designed to handle nominal torques up to 68,000 Nm
• Available with bores up to 150 mm
Application as: Backstop (for applications with low to medium speeds in freewheeling operation)
Application Example:
• Complete Freewheel FGR … R A2A3 is used as a backstop at the end of an inclined conveyor belt
• The backdriving torque is supported by a lever arm with a holding pin fixed to the base (fundament)
• When the holding pin is removed, the conveyor belt shaft can be rotated in both directions, allowing for maintenance or repositioning
Mounting:
• The holding pin should allow 0.5 to 2 mm of play in both axial and radial directions
• If the holding pin is removed, the shaft can be rotated freely in both directions
• The shaft tolerance must comply with ISO h6 or j6
♦ ♦ Images are for representation purposes only
