Description
Brand - RINGSPANN
Part Number - FGR 12 R A3A4 RINGSPANN
Category - Complete Freewheels FGR...R A3A4

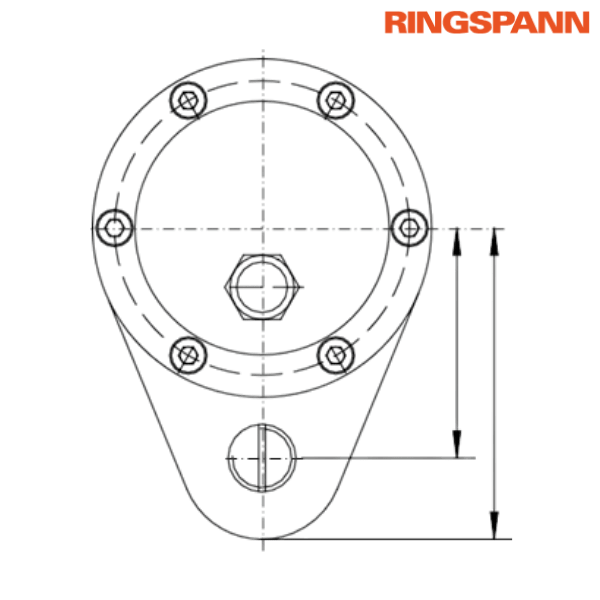

Principal Dimensions & Specifications (Metric):
Bore Diameter (d) - 12 mm
Dimension (D) - 62 mm
Dimension (E) - 13 mm
Dimension (F) - 1 mm
Dimension (H) - 51 mm
Dimension (L) - 42 mm
Dimension (N) - 10 mm
Dimension (O) - 64 mm
Dimension (P) - 10 mm
Dimension (Q) - 44 mm
Dimension (S) - 12 mm
Weight - 1.4 kg
Type - Standard Type for Universal Use (R)
Nominal Torque (MN) - 55 Nm
Maximum Speed of Inner Ring Freewheels - 2500 RPM
Description of Suffixes:
R - Standard Type for Universal Use
A3A4 - Lever Arm and Cover Combination
Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• Tolerance of keyway width JS10
• Keyway according to DIN 6885
Features:
• Complete Freewheel FGR … R A3A4 with lever arm are sealed roller freewheels featuring ball bearings
• Capable of handling nominal torques up to 68,000 Nm
• Available with bores up to 150 mm
Application as: Backstop (for applications with low to medium speeds in freewheeling operation)
Application Example:
• Complete Freewheel FGR 45 R A3A4 is used as a backstop at the opposite end of the drive shaft of a bucket conveyor
• In case of a motor stop, the backstop ensures that the bucket conveyor is securely held, preventing the belt from moving backward and driving the motor at high speed
• The backdriving torque is supported by a lever arm with a holding pin fixed to the housing
• If the holding pin is removed, the belt shaft can be rotated freely in both directions, allowing for maintenance or adjustments
Mounting:
• The pin should allow 0.5 to 2 mm play in both axial and radial directions
• The shaft tolerance must conform to ISO h6 or j6
• For FGR … R A3A4 freewheels, the inner ring must be axially secured using the supplied retainer plate
♦ ♦ Images are for representation purposes only
Part Number - FGR 12 R A3A4 RINGSPANN
Category - Complete Freewheels FGR...R A3A4
Principal Dimensions & Specifications (Metric):
Bore Diameter (d) - 12 mm
Dimension (D) - 62 mm
Dimension (E) - 13 mm
Dimension (F) - 1 mm
Dimension (H) - 51 mm
Dimension (L) - 42 mm
Dimension (N) - 10 mm
Dimension (O) - 64 mm
Dimension (P) - 10 mm
Dimension (Q) - 44 mm
Dimension (S) - 12 mm
Weight - 1.4 kg
Type - Standard Type for Universal Use (R)
Nominal Torque (MN) - 55 Nm
Maximum Speed of Inner Ring Freewheels - 2500 RPM
Description of Suffixes:
R - Standard Type for Universal Use
A3A4 - Lever Arm and Cover Combination
Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• Tolerance of keyway width JS10
• Keyway according to DIN 6885
Features:
• Complete Freewheel FGR … R A3A4 with lever arm are sealed roller freewheels featuring ball bearings
• Capable of handling nominal torques up to 68,000 Nm
• Available with bores up to 150 mm
Application as: Backstop (for applications with low to medium speeds in freewheeling operation)
Application Example:
• Complete Freewheel FGR 45 R A3A4 is used as a backstop at the opposite end of the drive shaft of a bucket conveyor
• In case of a motor stop, the backstop ensures that the bucket conveyor is securely held, preventing the belt from moving backward and driving the motor at high speed
• The backdriving torque is supported by a lever arm with a holding pin fixed to the housing
• If the holding pin is removed, the belt shaft can be rotated freely in both directions, allowing for maintenance or adjustments
Mounting:
• The pin should allow 0.5 to 2 mm play in both axial and radial directions
• The shaft tolerance must conform to ISO h6 or j6
• For FGR … R A3A4 freewheels, the inner ring must be axially secured using the supplied retainer plate
♦ ♦ Images are for representation purposes only
