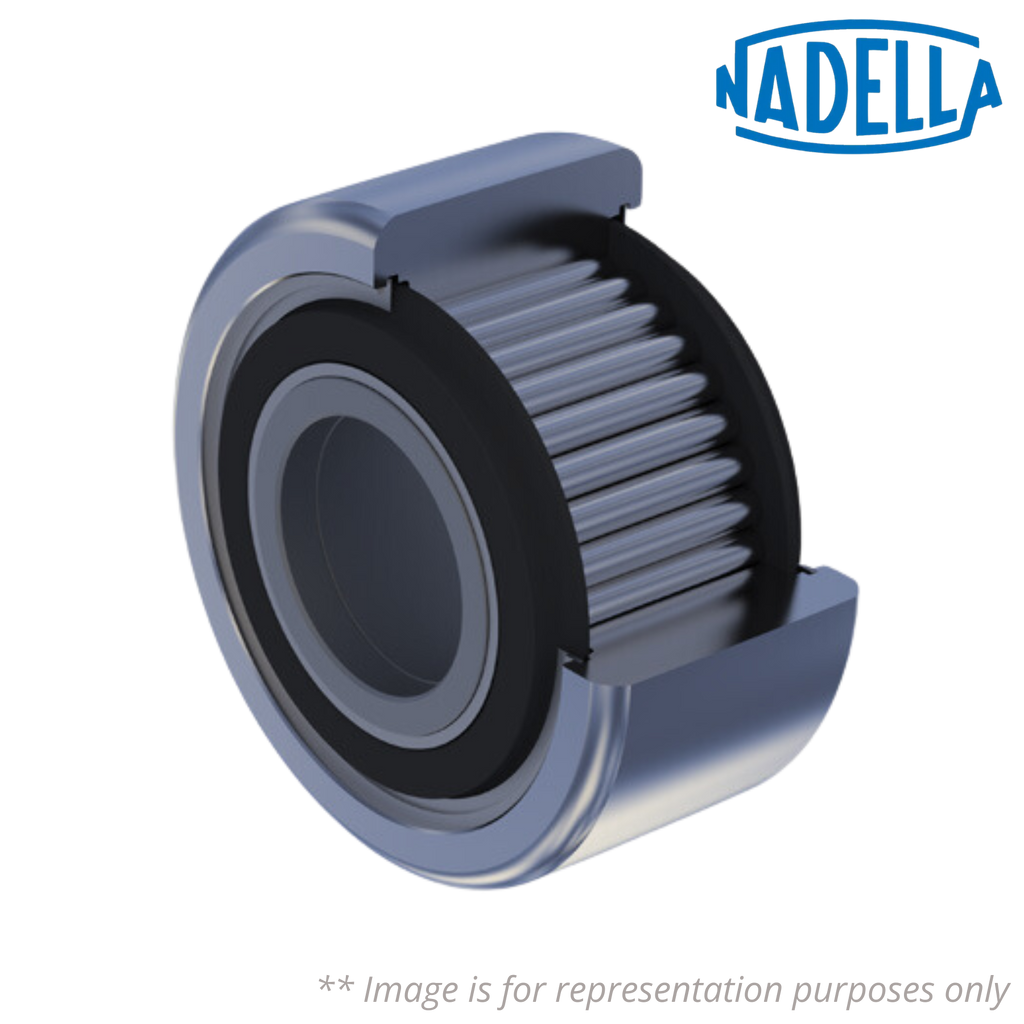

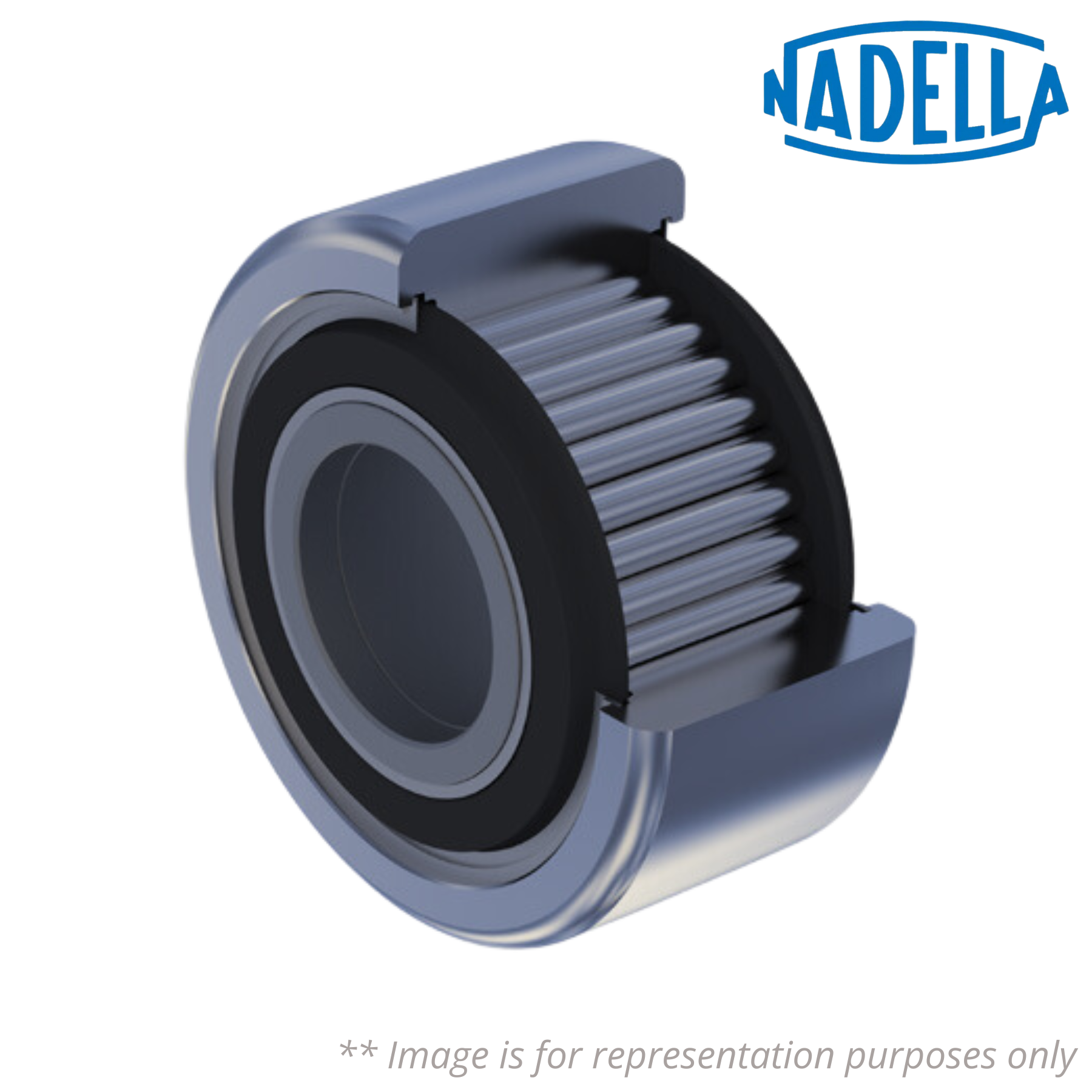

FGL 50 90 SW NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FGL 50 90 SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FGL5090SW

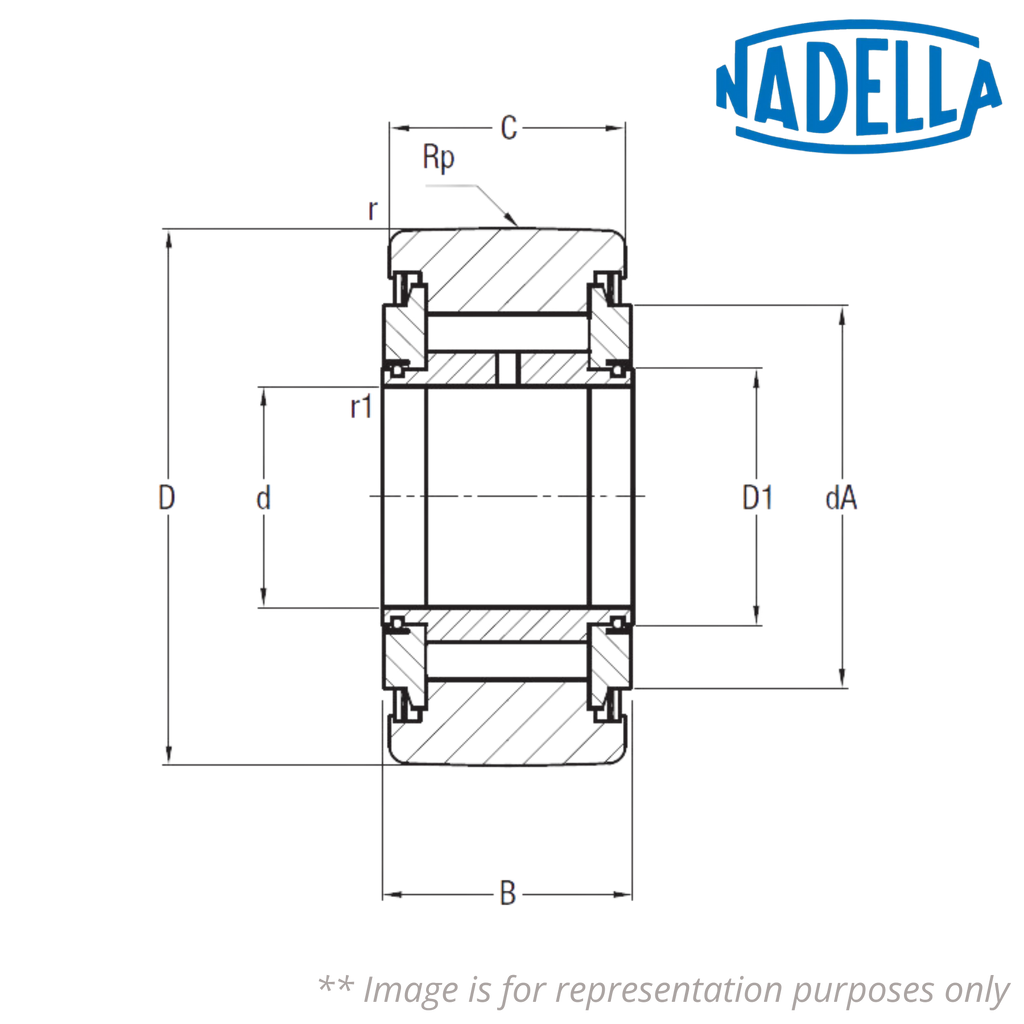

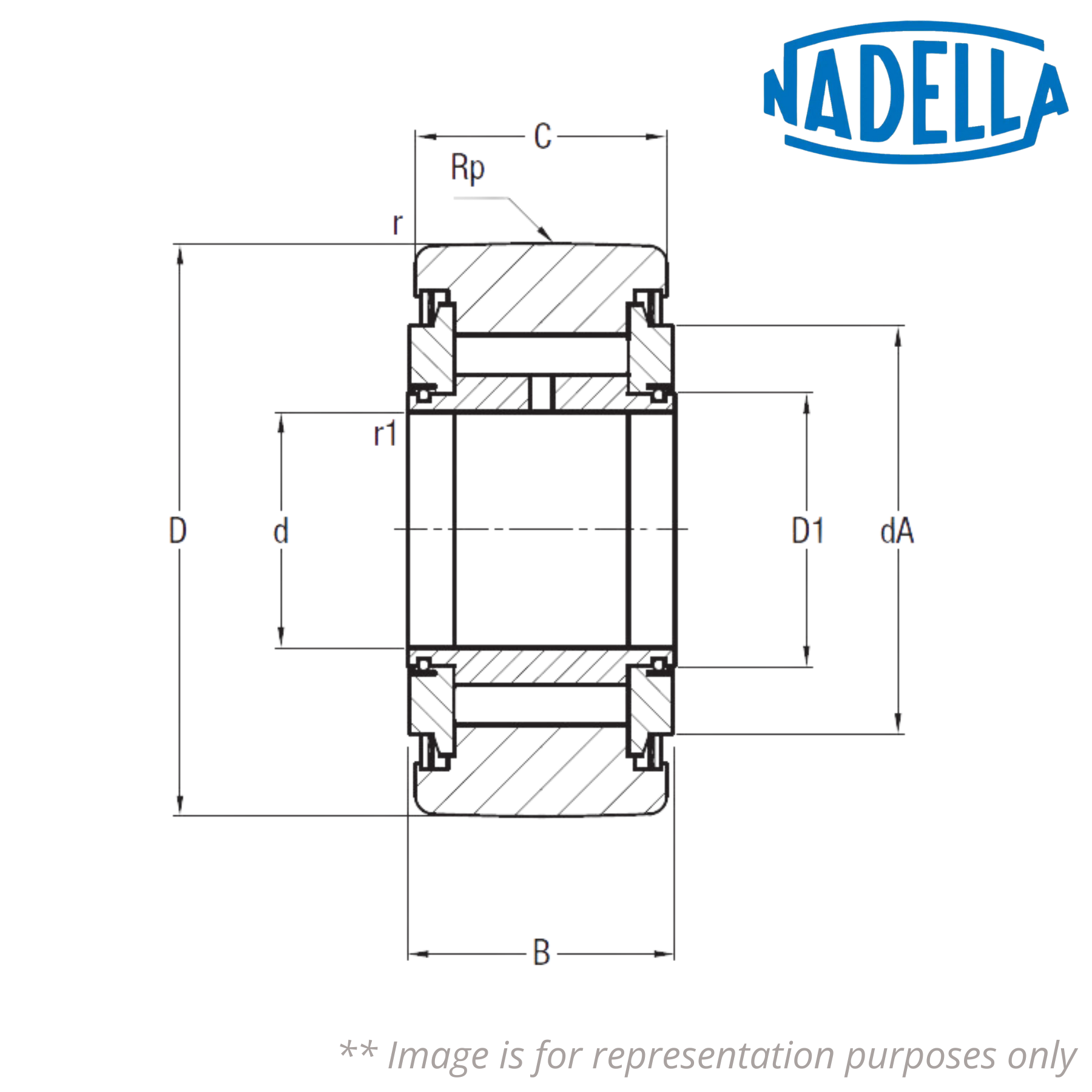

Outer Diameter (D) mm - 90
Recommended Diameter for Pivot (d) mm - 50
B (mm) - 32
C (mm) - 30
D1 (mm) - 59
Minimum Recommended Abutment Support Diameter (dA) mm - 71
r (mm) - 1
r1 (mm) - 0.6
Load Coefficient (Cw) N - 49000
Dynamic Load Coefficient (Fr) N - 57000
Static Load Coefficient (For) N - 93000
Speed Limit with Grease (min-1) - 710
Weight (kg) - 1.04
FGL - Cam Follower with Cylindrical Outer Ring
Seal - No Seal
