Description
Brand - NADELLA
Item Number - FGL 50 90 EE SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FGL5090EESW
Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 90 mm
Recommended Diameter for Pivot (d) - 50 mm
Dimension (B) - 32 mm
Dimension (C) - 30 mm
Dimension (D1) - 59 mm
Minimum Recommended Abutment Support Diameter (dA) * - 71 mm
Dimension (r) - 1 mm
Dimension (r1) - 0.6 mm
Load Coefficient (Cw) - 49000 N
Dynamic Load Coefficient (Fr) - 57000 N
Static Load Coefficient (For) - 93000 N
Speed Limit with Grease - 710 RPM
Weight - 1.04 kg
Description of Suffixes and Prefixes:
FGL - Cam follower with cylindrical outer ring
EE - With plastic seals available up to outer diameter of 90 mm
Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations

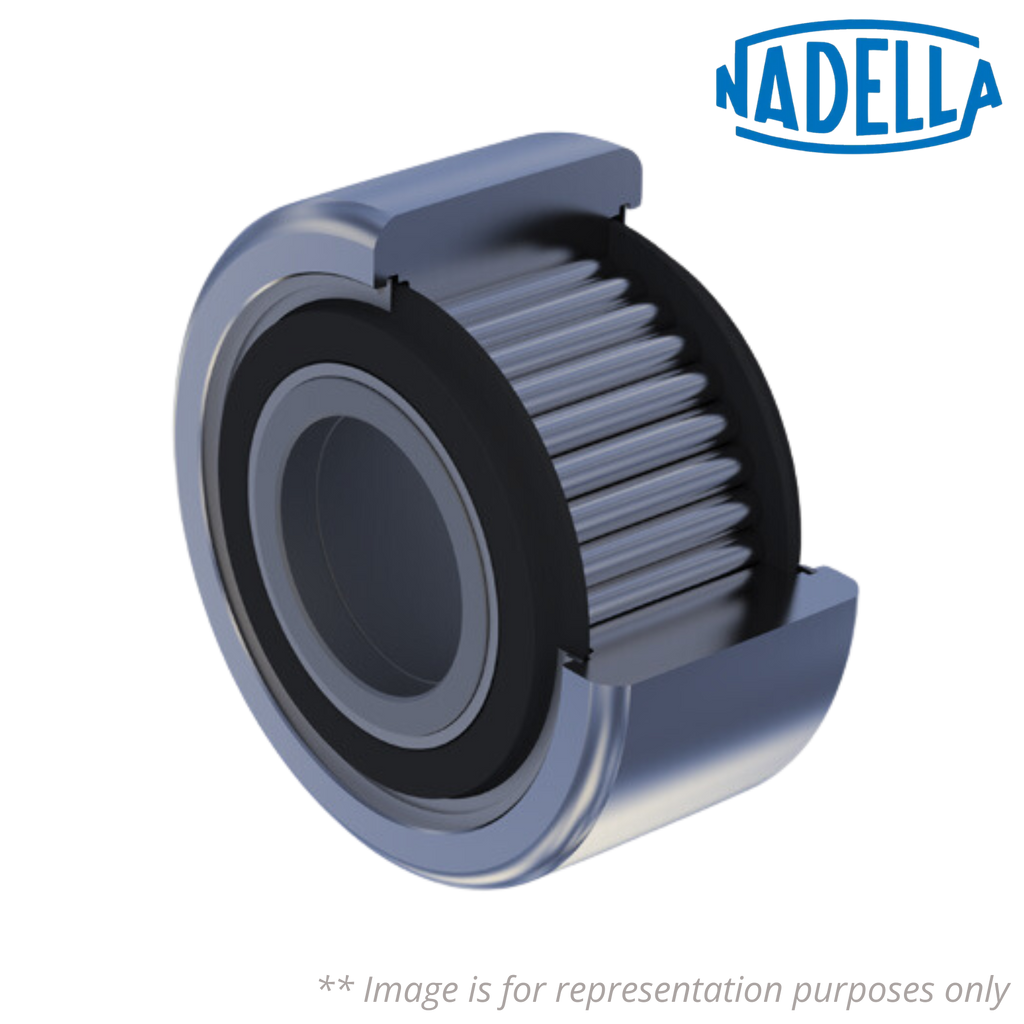

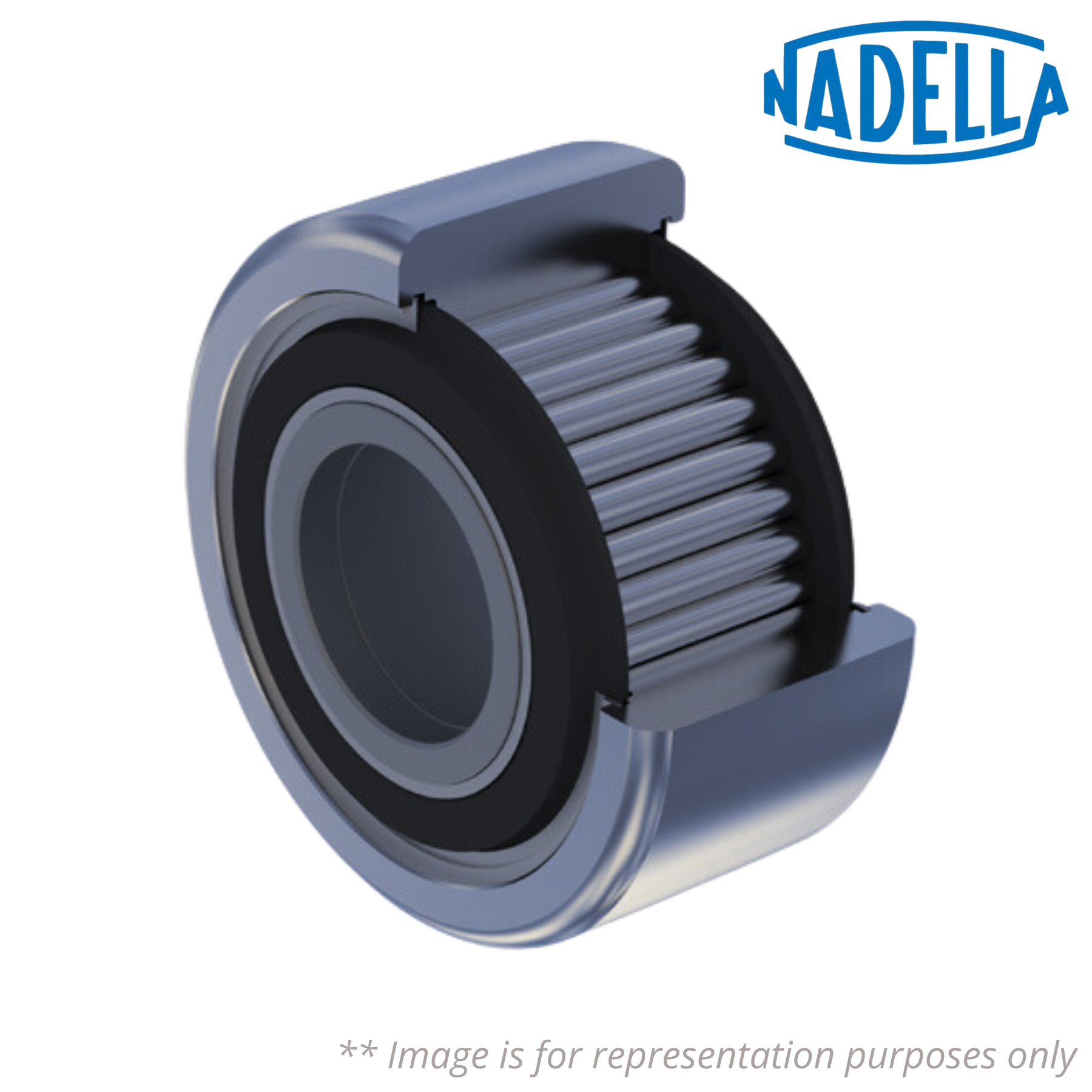

♦♦ Images are for representation purposes only
