FGL 45 85 EEM SW NADELLA

NADELLA

Download Data Sheet

Country Of Origin: ITALY

Variant

Price:

₹ 100.00 ₹ 200.00

Quantity:

Share this product

Brand - NADELLA
Item Number - FGL 45 85 EEM SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FGL4585EEMSW

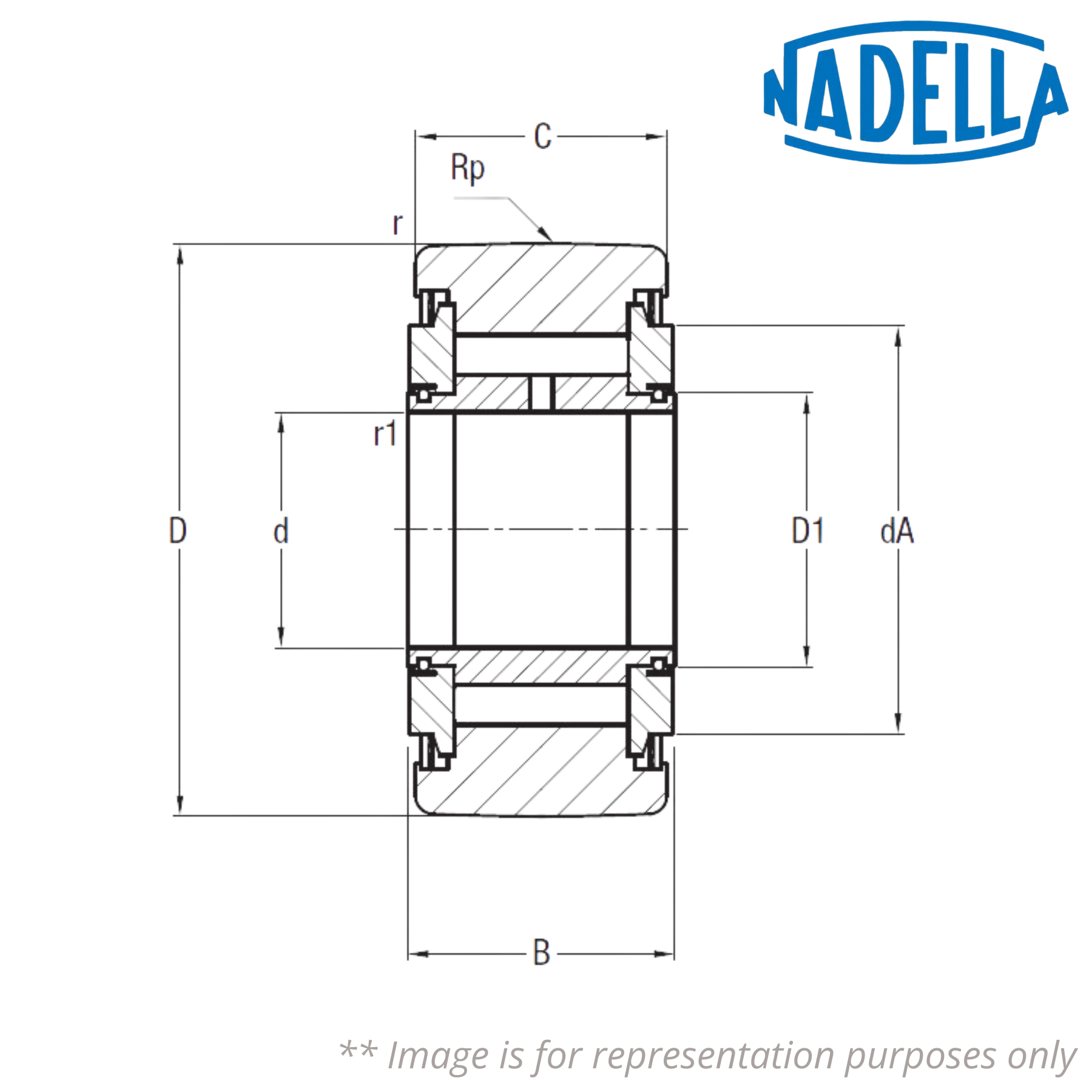

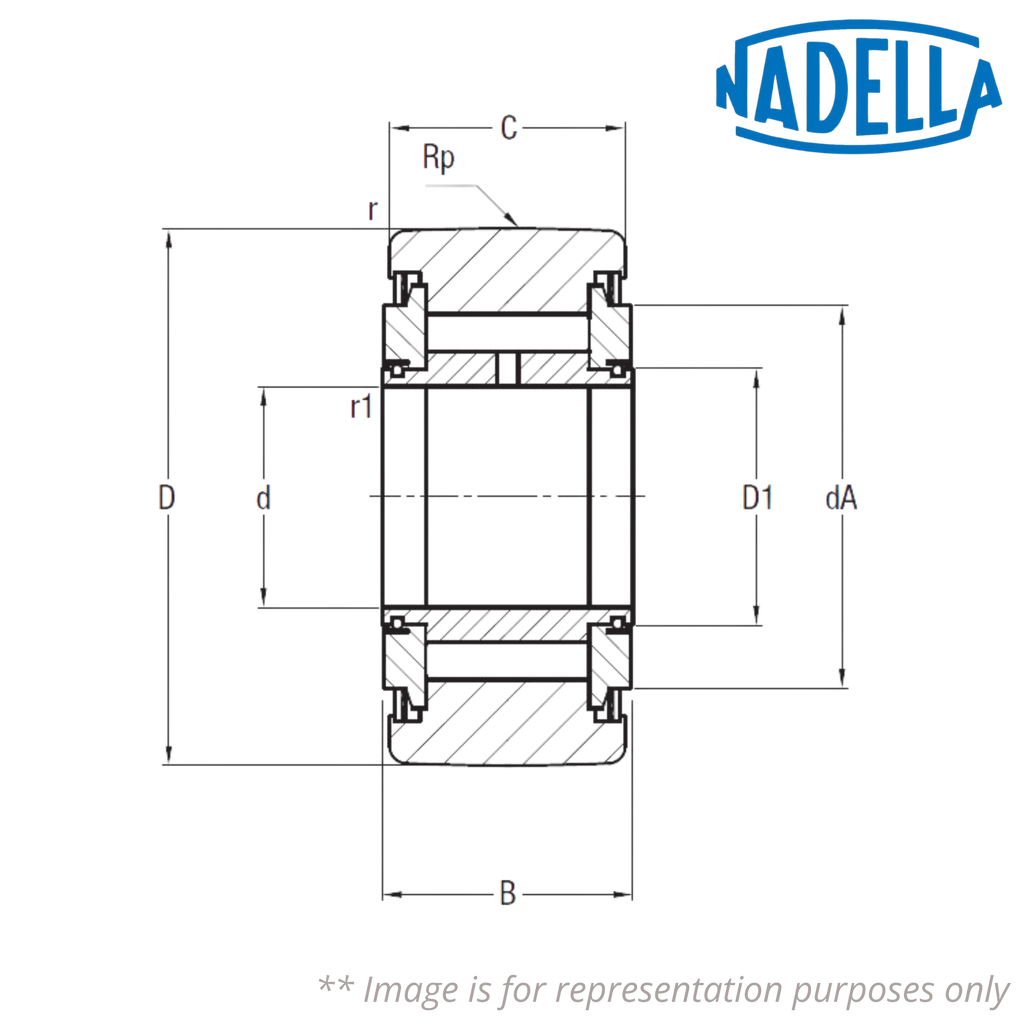

Outer Diameter (D) mm - 85
Recommended Diameter for Pivot (d) mm - 45
B (mm) - 32
C (mm) - 30
D1 (mm) - 51
Minimum Recommended Abutment Support Diameter (dA) mm - 61.1
r (mm) - 1
r1 (mm) - 0.6
Load Coefficient (Cw) N - 54000
Dynamic Load Coefficient (Fr) N - 68000
Static Load Coefficient (For) N - 110000
Speed Limit with Grease (min-1) - 810
Weight (kg) - 0.97
FGL - Cam Follower with Cylindrical Outer Ring
Seal - With Metal Seal
