FGL 25 52 NADELLA

Brand - NADELLA
Item Number - FGL 25 52 NADELLA
Category - Full Complement Needle Rollers
Also Known As - FGL2552

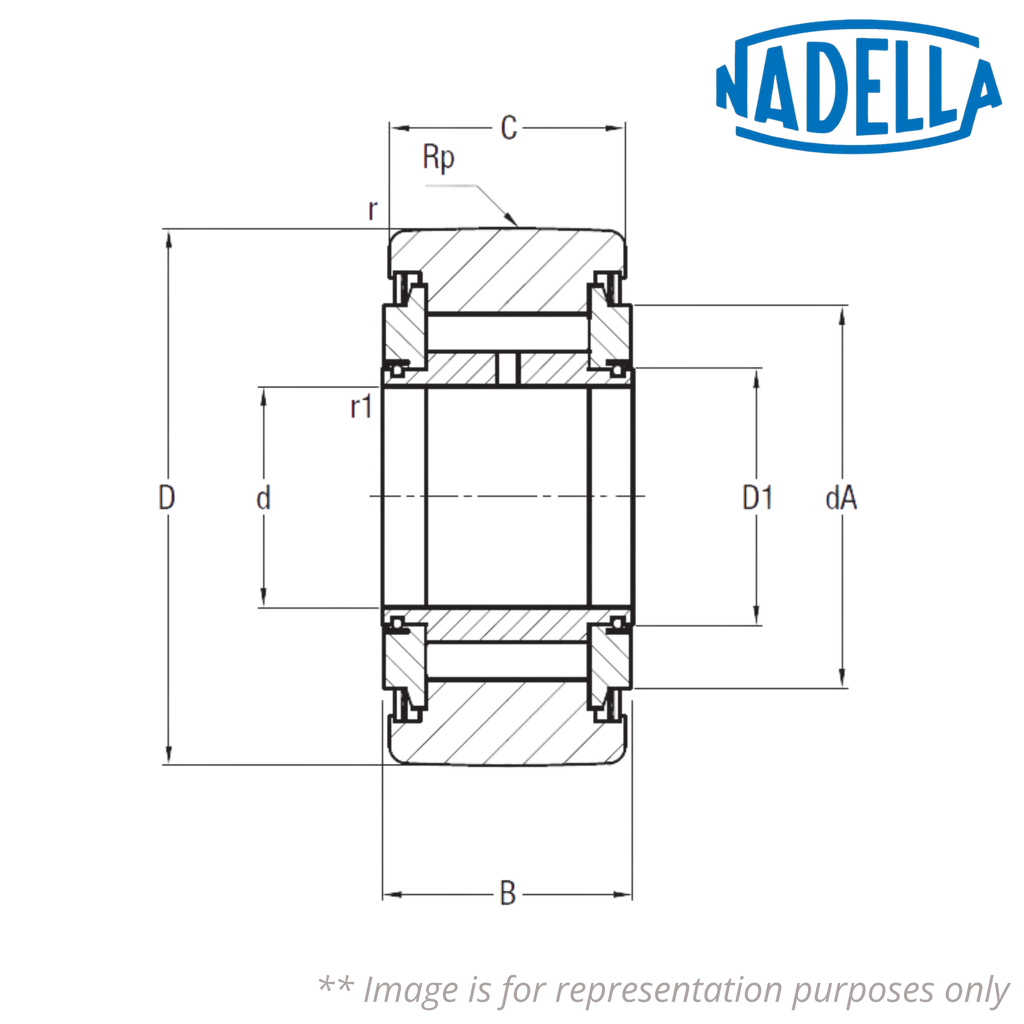

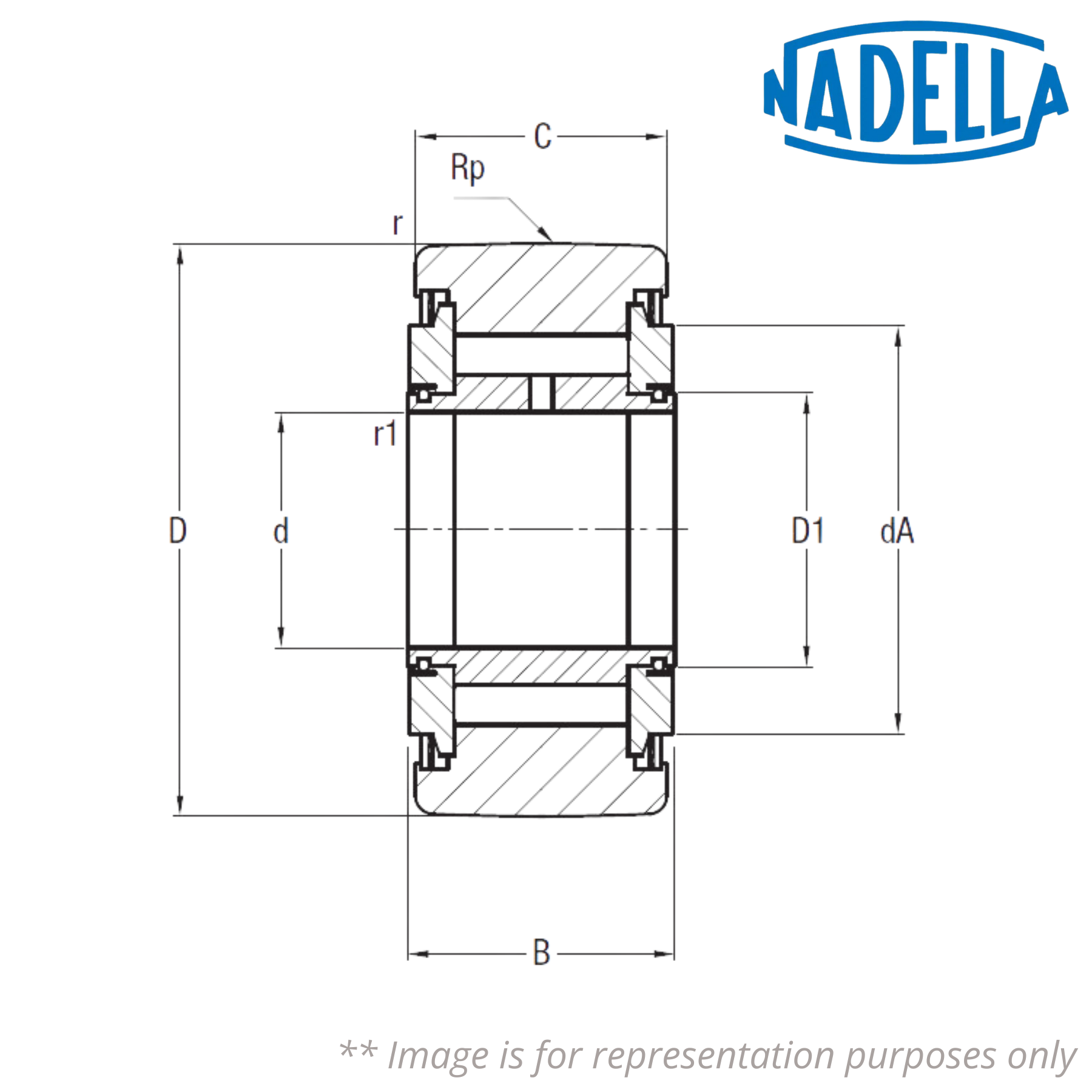

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 52 mm
Recommended Diameter for Pivot (d) - 25 mm
Dimension (B) - 25 mm
Dimension (C) - 24 mm
Dimension (D1) - 29.5 mm
Minimum Recommended Abutment Support Diameter (dA) * - 35 mm
Dimension (r) - 1 mm
Dimension (r1) - 0.3 mm
Load Coefficient (Cw) - 29000 N
Dynamic Load Coefficient (Fr) - 33000 N
Static Load Coefficient (For) - 54000 N
Speed Limit with Grease - 1400 RPM
Weight - 0.31 kg

Description of Prefix:
FGL - Cam follower with cylindrical outer ring

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations

♦♦ Images are for representation purposes only
