FGL 25 52 EEM SW NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FGL 25 52 EEM SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FGL2552EEMSW
Outer Diameter (D) mm - 52
Recommended Diameter for Pivot (d) mm - 25
B (mm) - 25
C (mm) - 24
D1 (mm) - 29.5
Minimum Recommended Abutment Support Diameter (dA) mm - 35
r (mm) - 1
r1 (mm) - 0.3
Load Coefficient (Cw) N - 29000
Dynamic Load Coefficient (Fr) N - 33000
Static Load Coefficient (For) N - 54000
Speed Limit with Grease (min-1) - 1400
Weight (kg) - 0.31

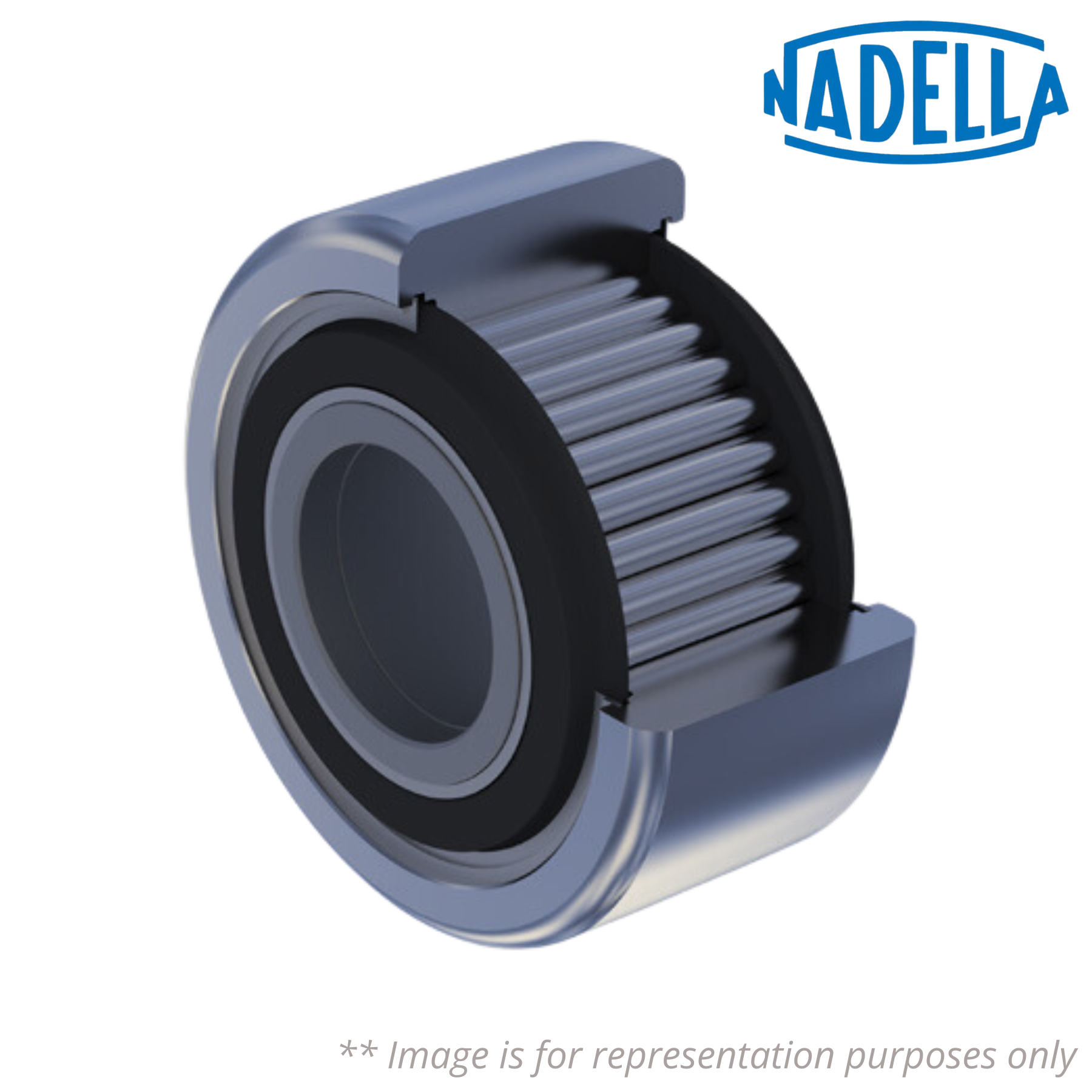

FGL - Cam Follower with Cylindrical Outer Ring
Seal - With Metal Seal
