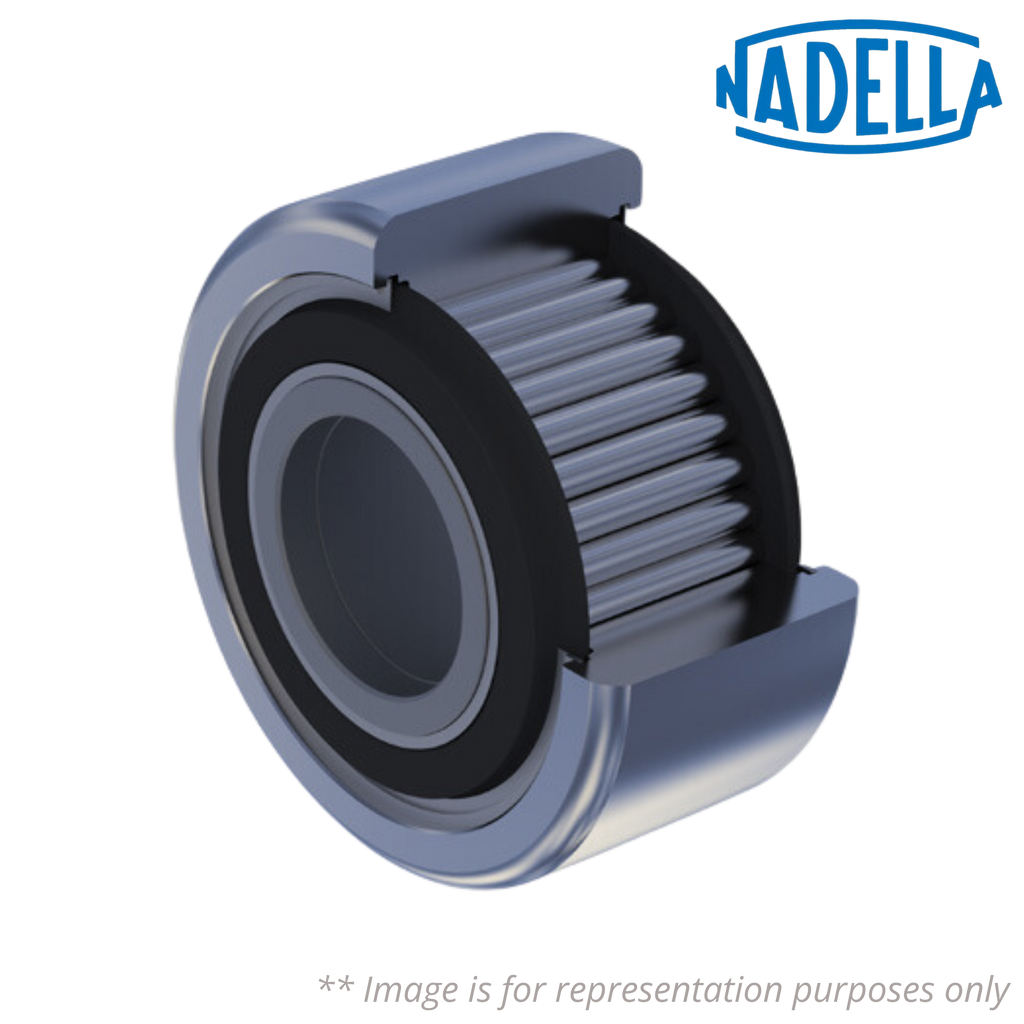

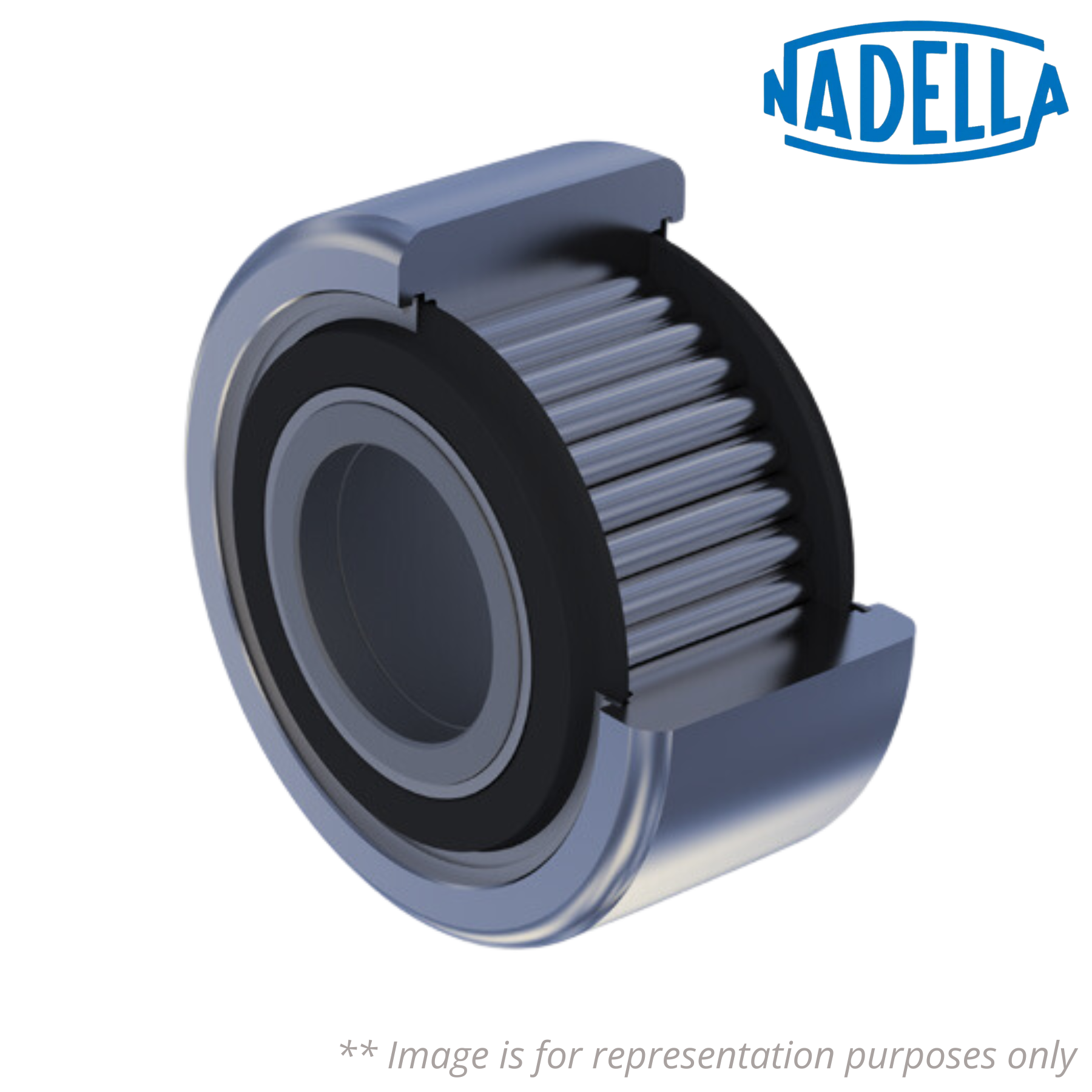

FGL 15 35 SW NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FGL 15 35 SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FGL1535SW

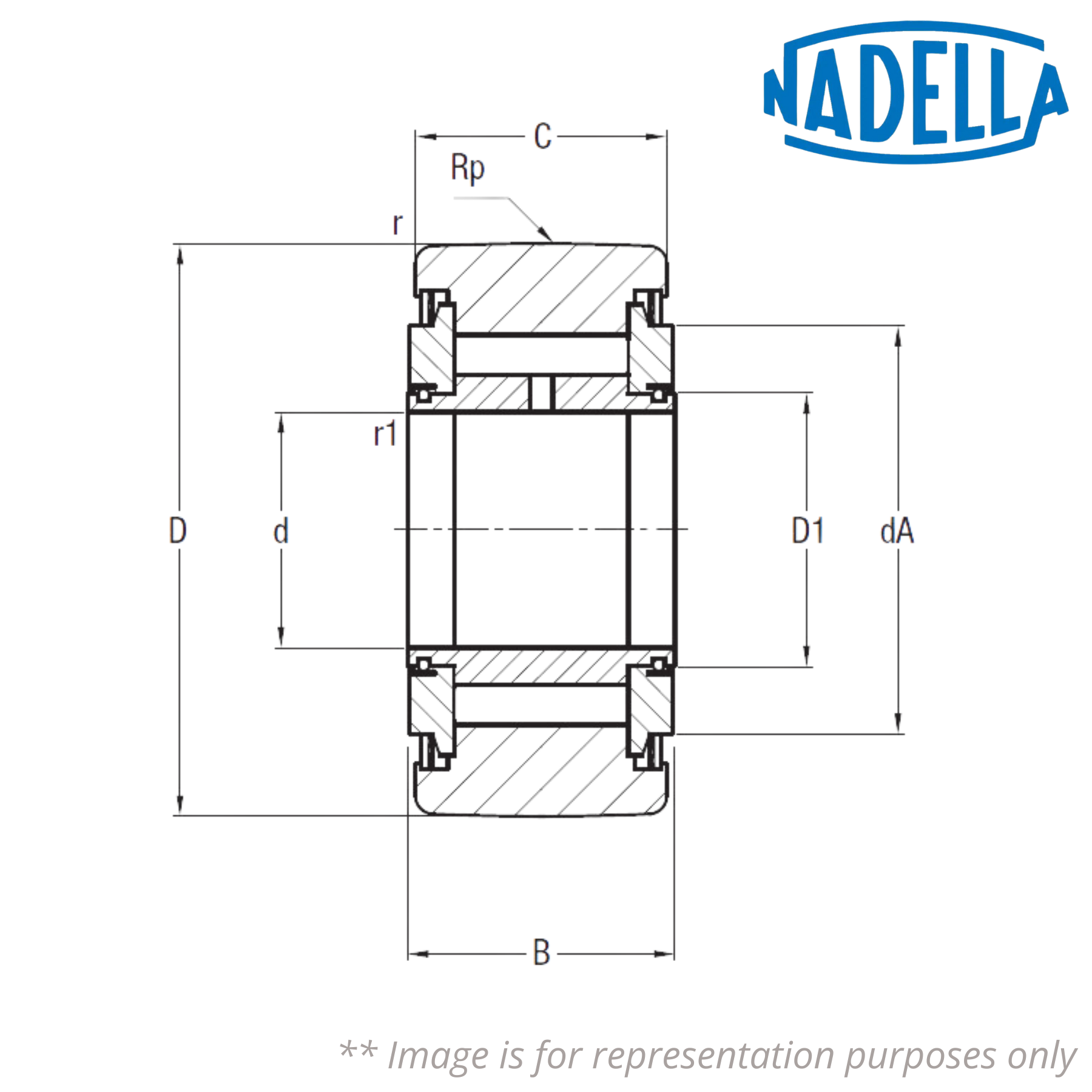

Outer Diameter (D) mm - 35
Recommended Diameter for Pivot (d) mm - 15
B (mm) - 19
C (mm) - 18
D1 (mm) - 18.7
Minimum Recommended Abutment Support Diameter (dA) mm - 26
r (mm) - 0.6
r1 (mm) - 0.3
Load Coefficient (Cw) N - 17000
Dynamic Load Coefficient (Fr) N - 15000
Static Load Coefficient (For) N - 24000
Speed Limit with Grease (min-1) - 2000
Weight (kg) - 0.103
FGL - Cam Follower with Cylindrical Outer Ring
Seal - No Seal
