FG 90 160 NADELLA

Brand - NADELLA
Item Number - FG 90 160 NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG90160

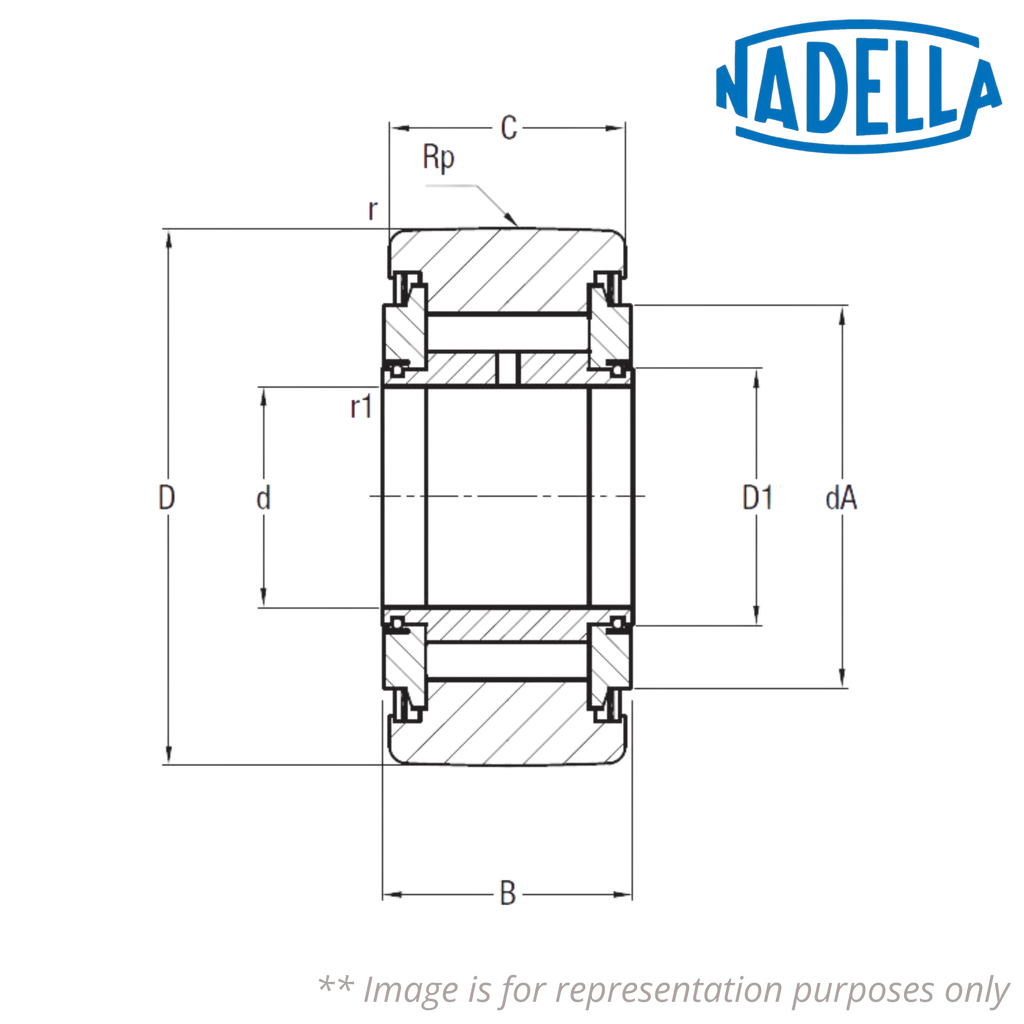

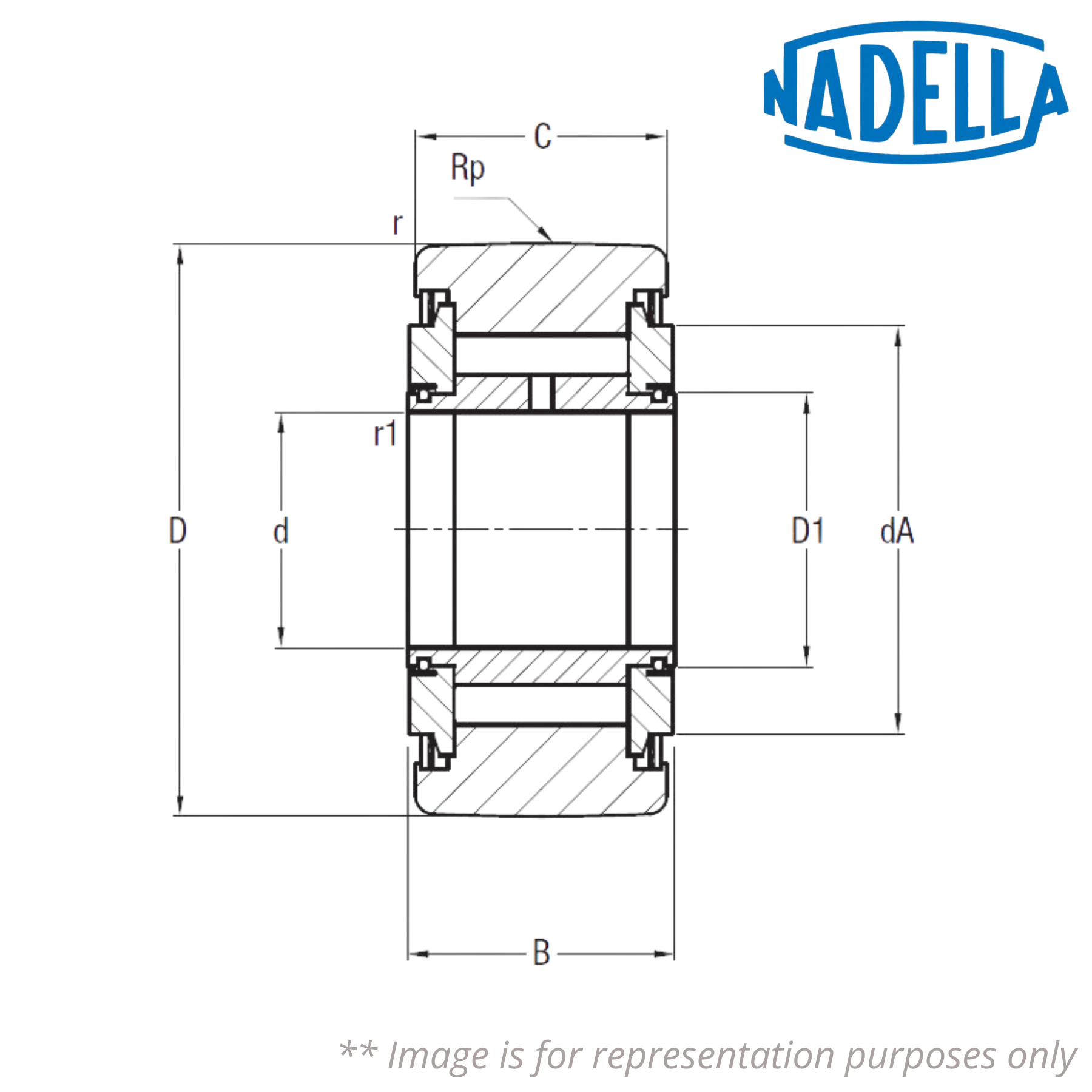

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 160 mm
Recommended Diameter for Pivot (d) - 90 mm
Dimension (B) - 54 mm
Dimension (C) - 52 mm
Dimension (D1) - 100.9 mm
Minimum Recommended Abutment Support Diameter (dA) * - 115 mm
Dimension (r) - 2 mm
Dimension (r1) - 1 mm
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) - 3000 mm
Load Coefficient (Cw) - 130000 N
Dynamic Load Coefficient (Fr) - 320000 N
Static Load Coefficient (For) - 340000 N
Speed Limit with Grease - 420 RPM
Weight - 5.3 kg

Description of Prefix:
FG - Cam followers without stud

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations

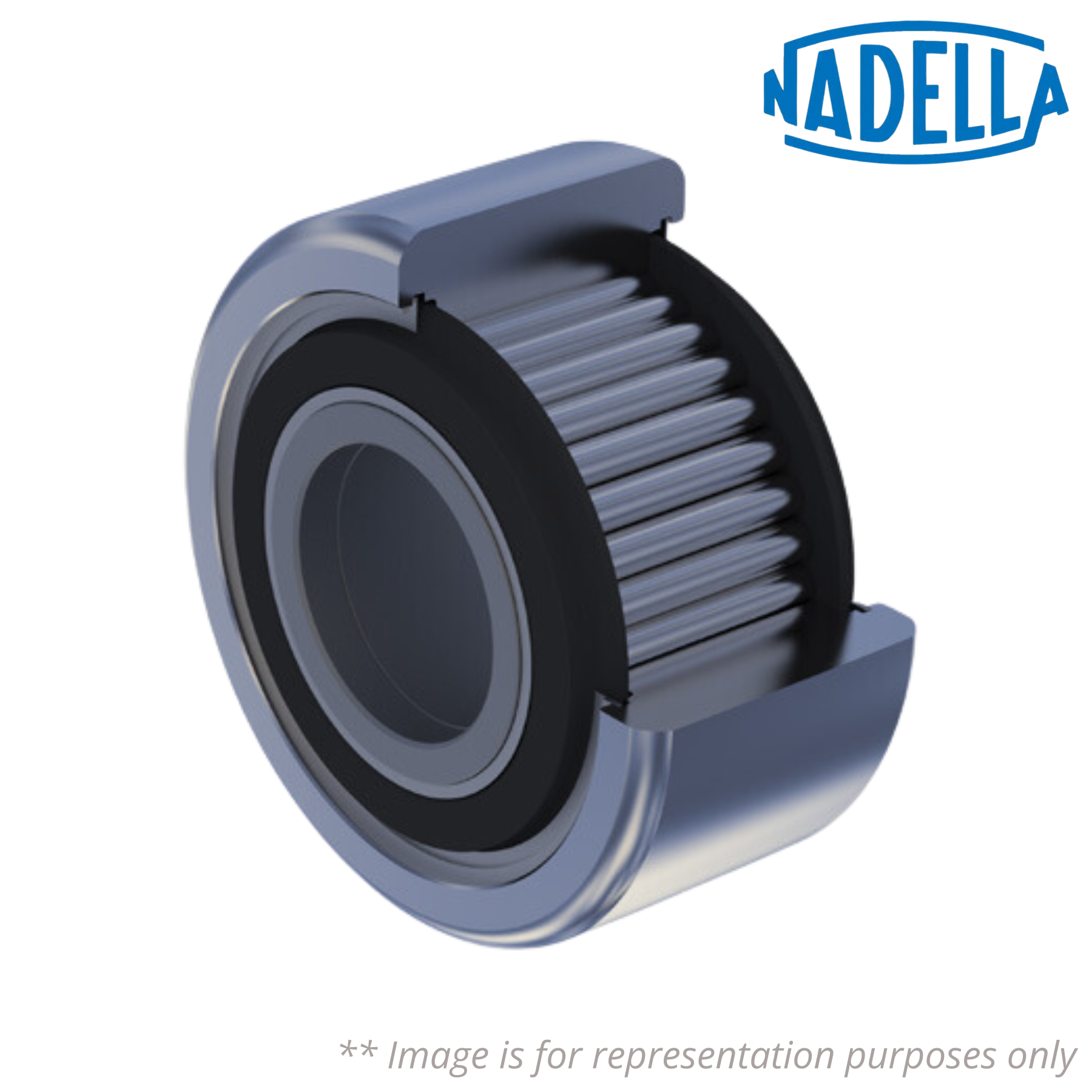

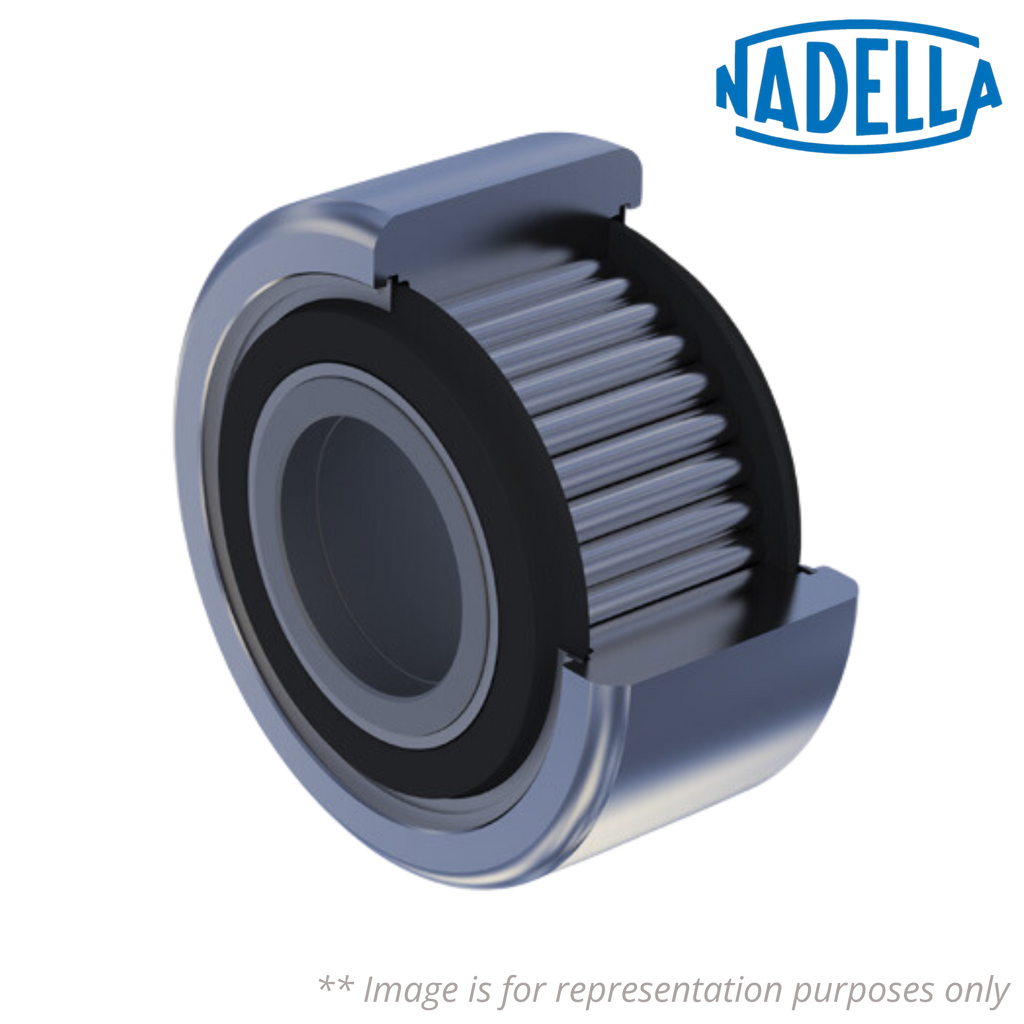

♦♦ Images are for representation purposes only
