FG 70 125 SW NADELLA

Brand - NADELLA
Item Number - FG 70 125 SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG70125SW

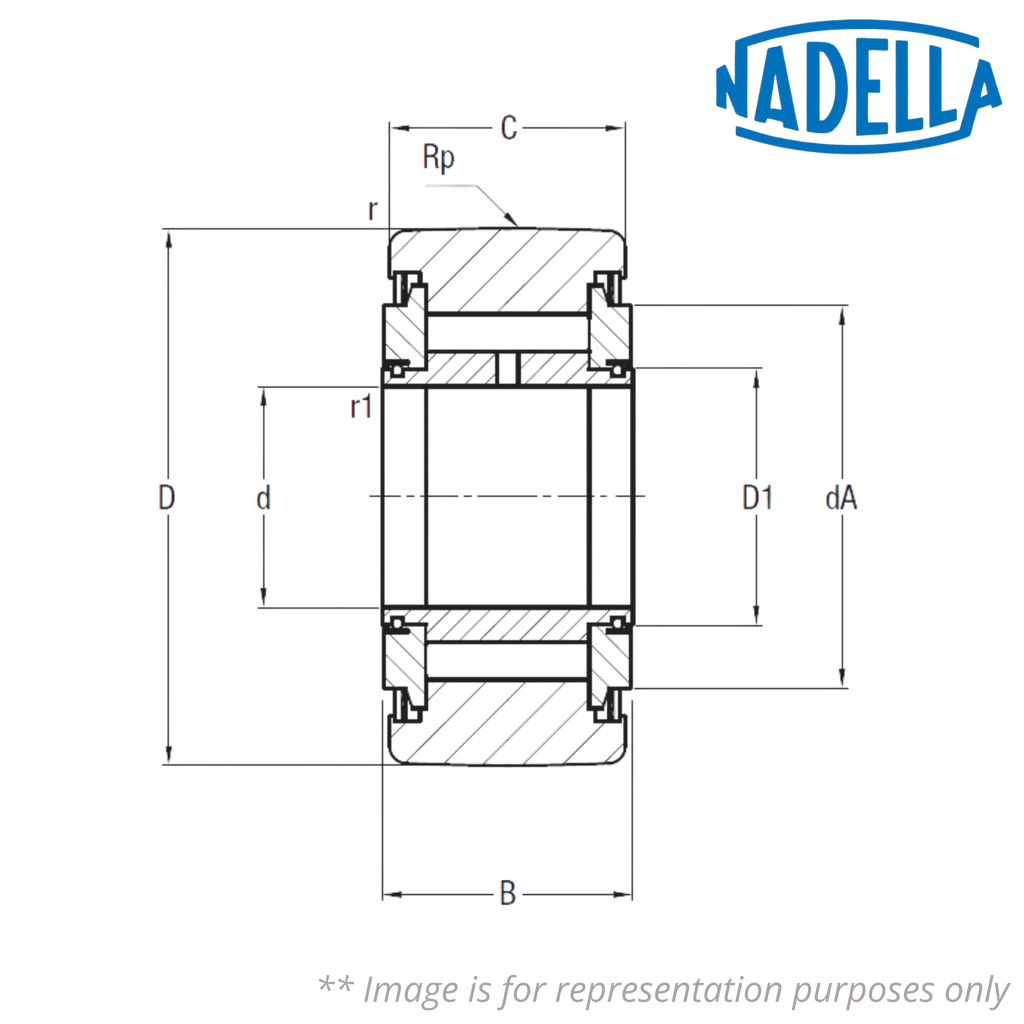

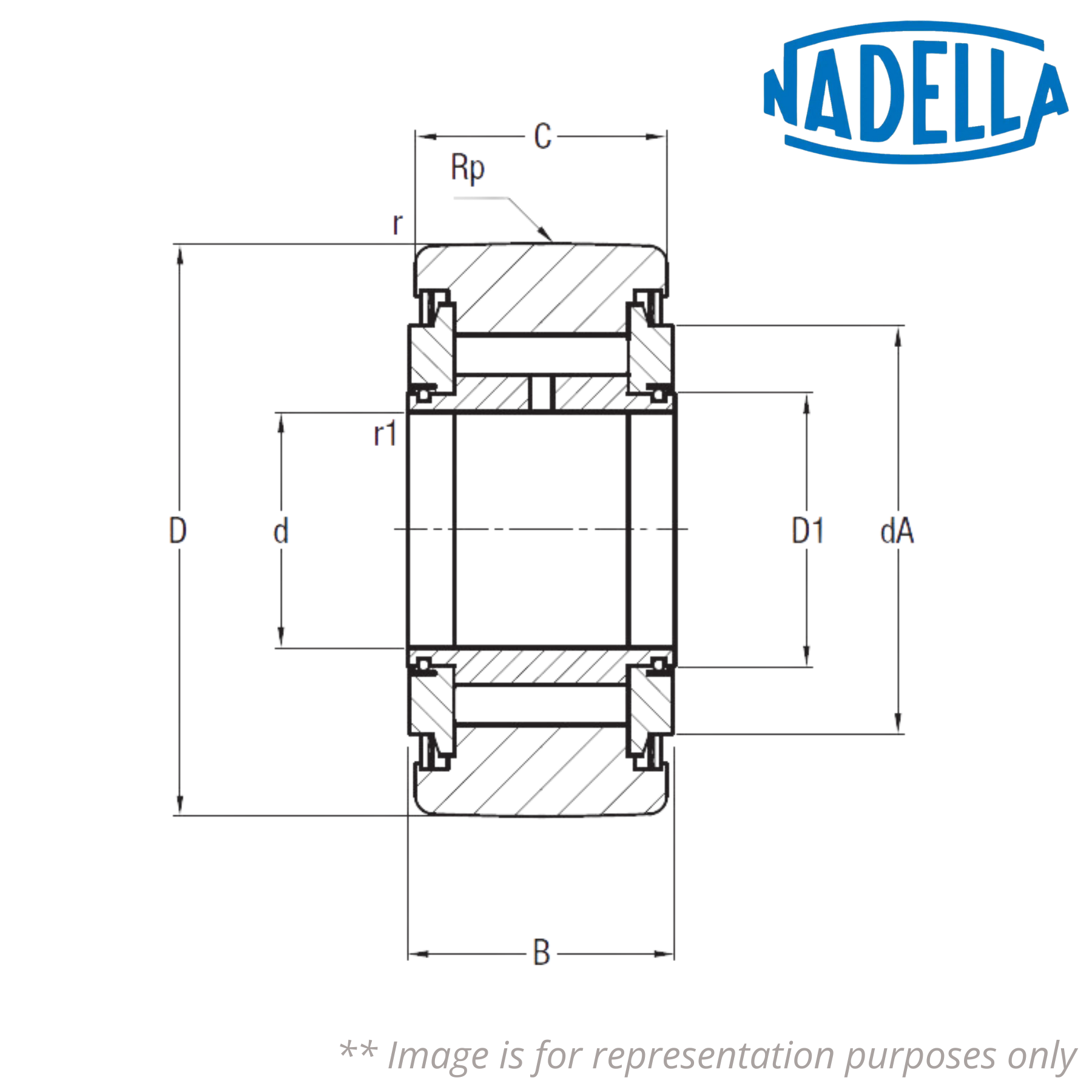

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 125 mm
Recommended Diameter for Pivot (d) - 70 mm
Dimension (B) - 42 mm
Dimension (C) - 40 mm
Dimension (D1) - 80 mm
Minimum Recommended Abutment Support Diameter (dA) * - 91 mm
Dimension (r) - 1.5 mm
Dimension (r1) - 0.6 mm
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) - 2500 mm
Load Coefficient (Cw) - 84000 N
Dynamic Load Coefficient (Fr) - 140000 N
Static Load Coefficient (For) - 220000 N
Speed Limit with Grease - 530 RPM
Weight - 2.5 kg

Description of Suffixes and Prefixes:
FG - Cam followers without stud
SW - with optimised outer profile ring without seal

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations

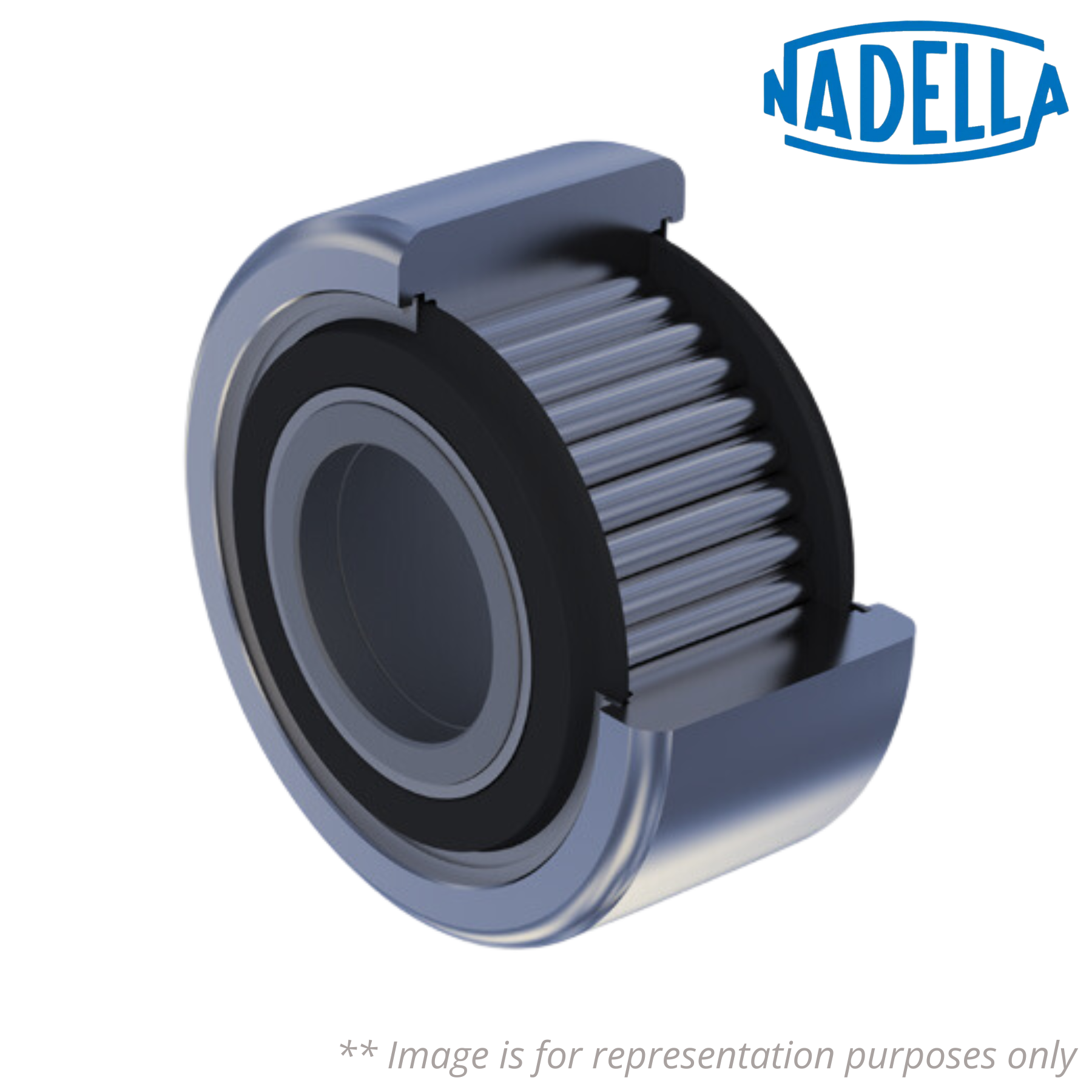

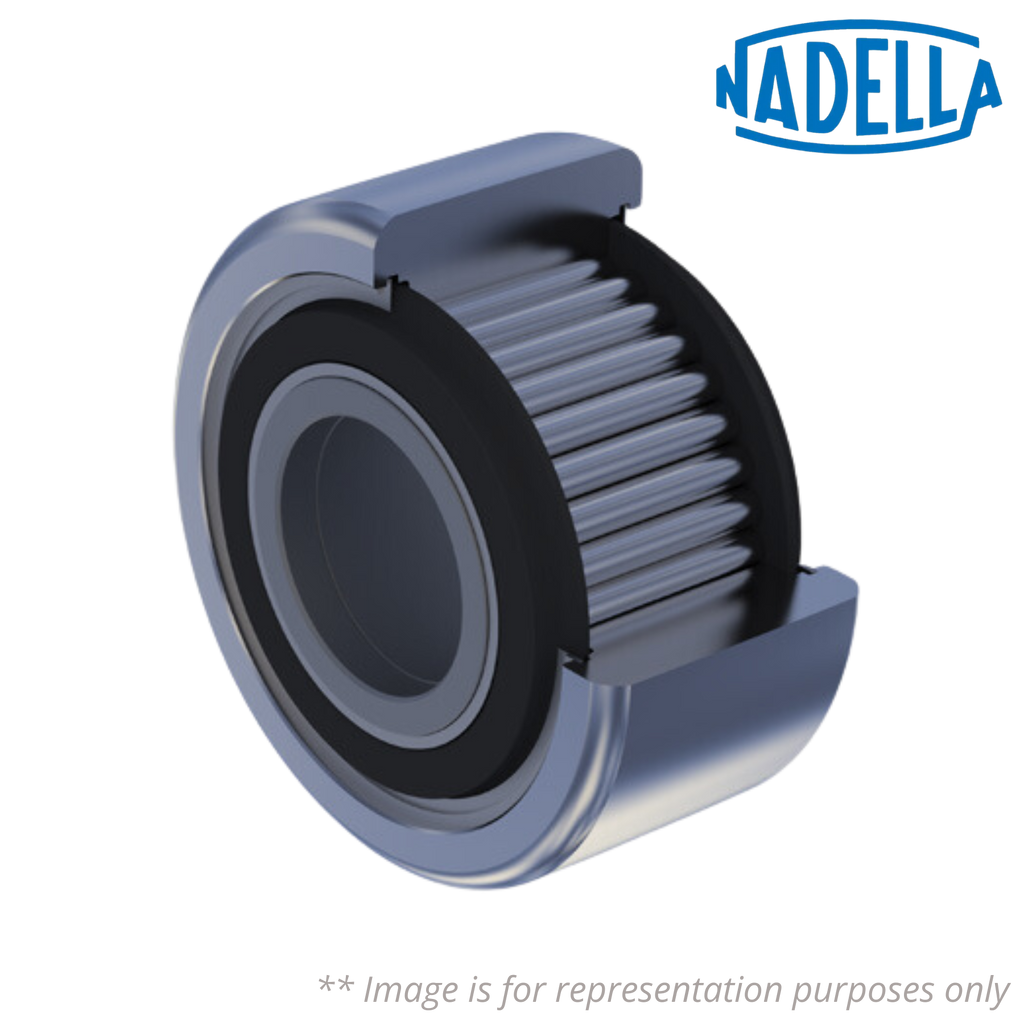

♦♦ Images are for representation purposes only
