FG 50 90 SW NADELLA

Brand - NADELLA
Item Number - FG 50 90 SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG5090SW

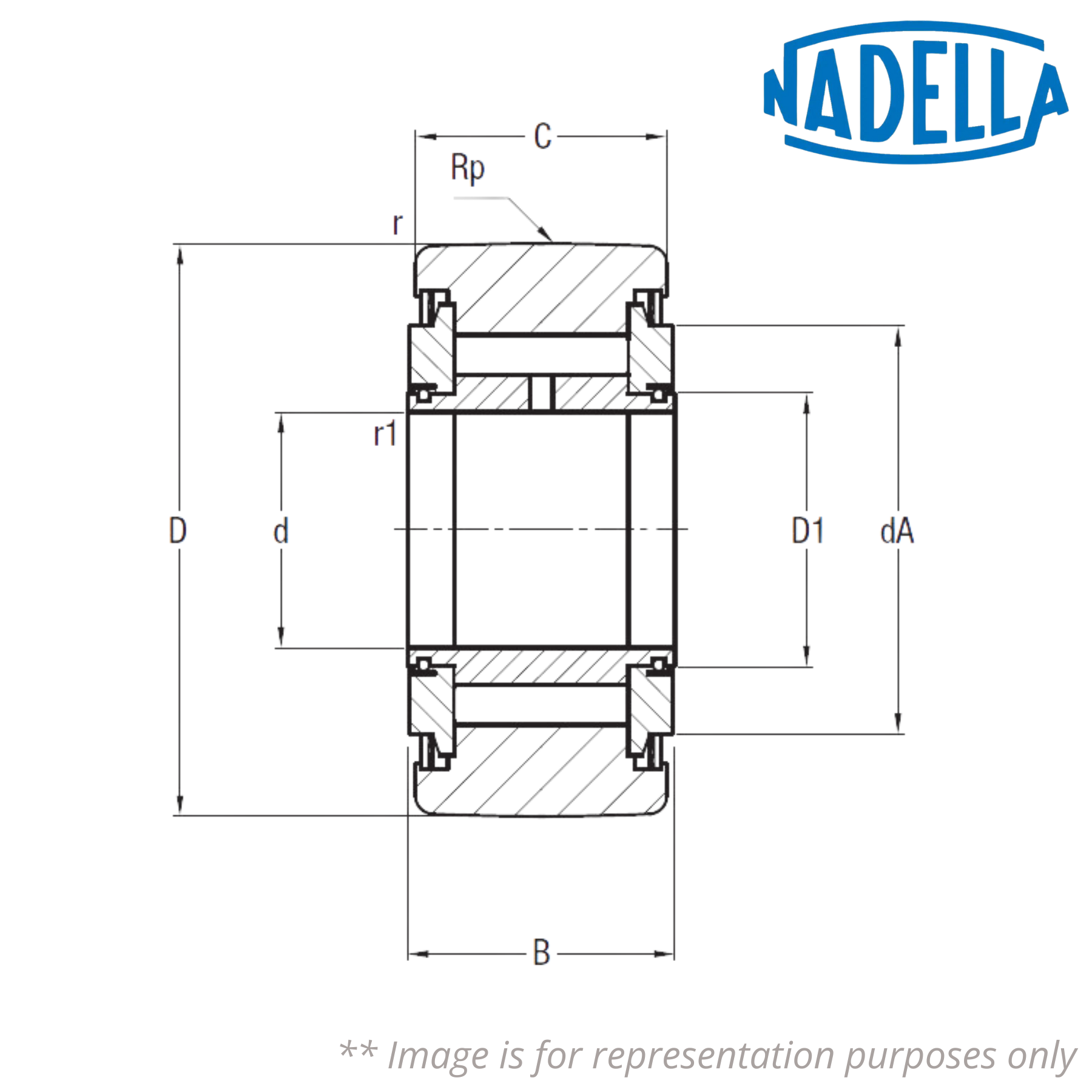

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 90 mm
Recommended Diameter for Pivot (d) - 50 mm
Dimension (B) - 32 mm
Dimension (C) - 30 mm
Dimension (D1) - 59 mm
Minimum Recommended Abutment Support Diameter (dA) * - 71 mm
Dimension (r) - 1 mm
Dimension (r1) - 0.6 mm
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) - 1700 mm
Load Coefficient (Cw) - 49000 N
Dynamic Load Coefficient (Fr) - 57000 N
Static Load Coefficient (For) - 93000 N
Speed Limit with Grease - 710 RPM
Weight - 1.04 kg

Description of Suffixes and Prefixes:
FG - Cam followers without stud
SW - with optimised outer profile ring without seal

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations

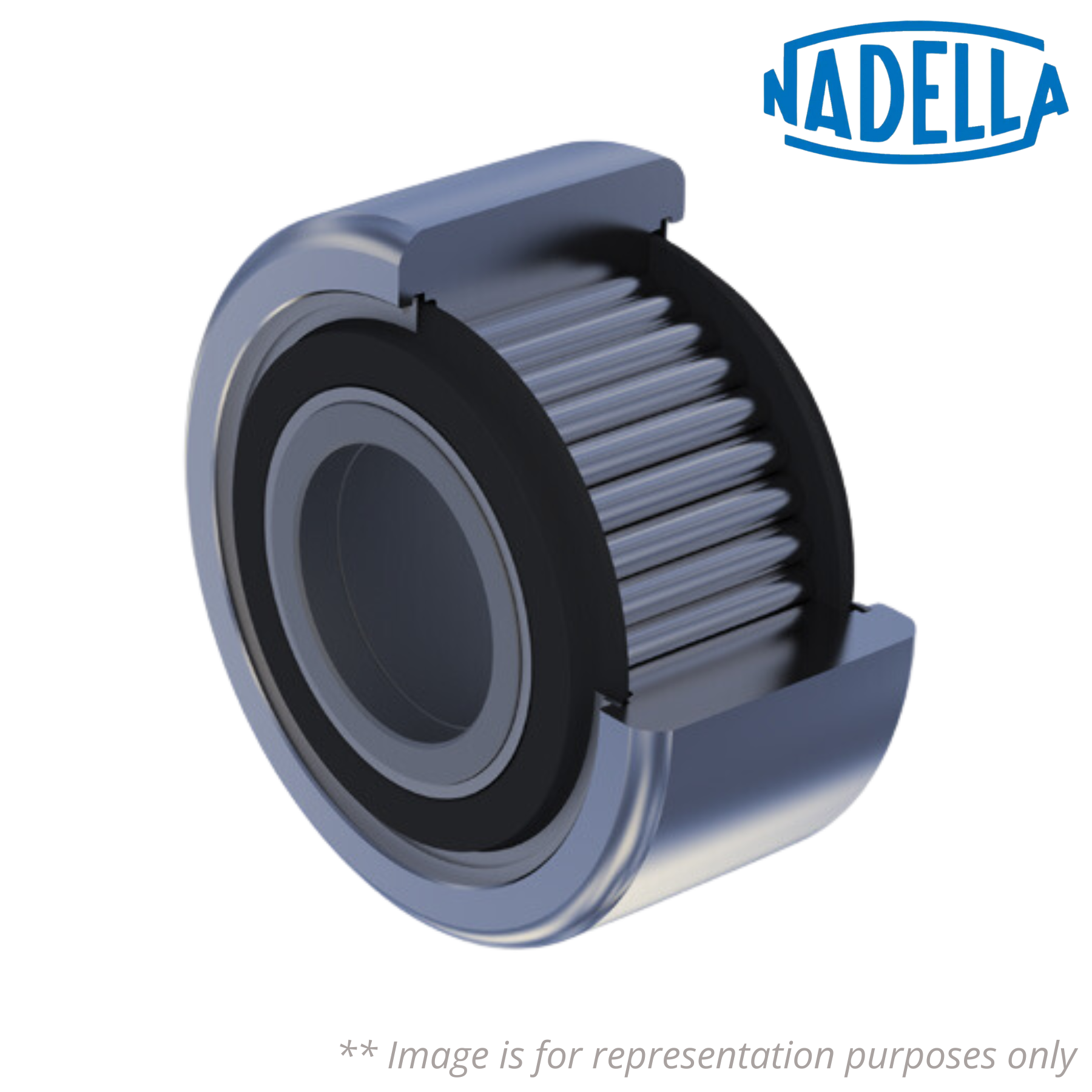

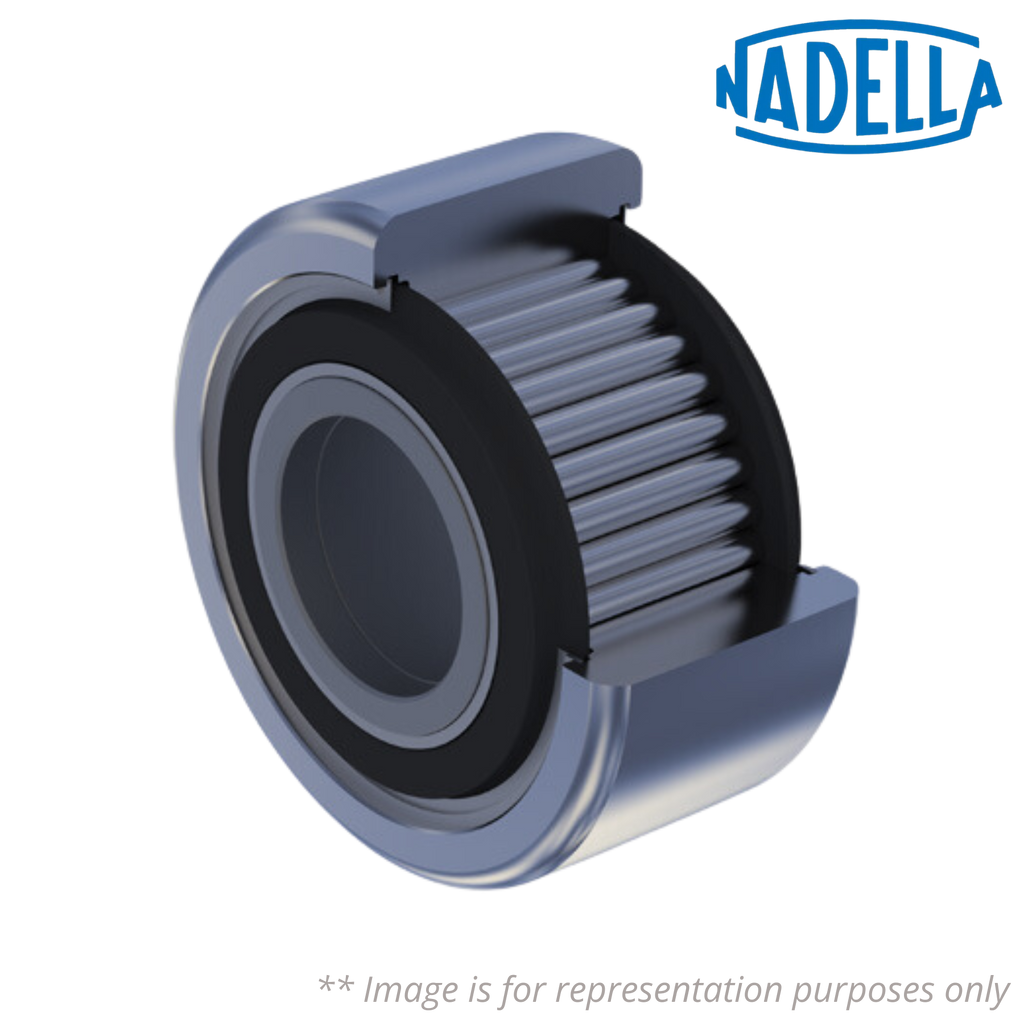

♦♦ Images are for representation purposes only
