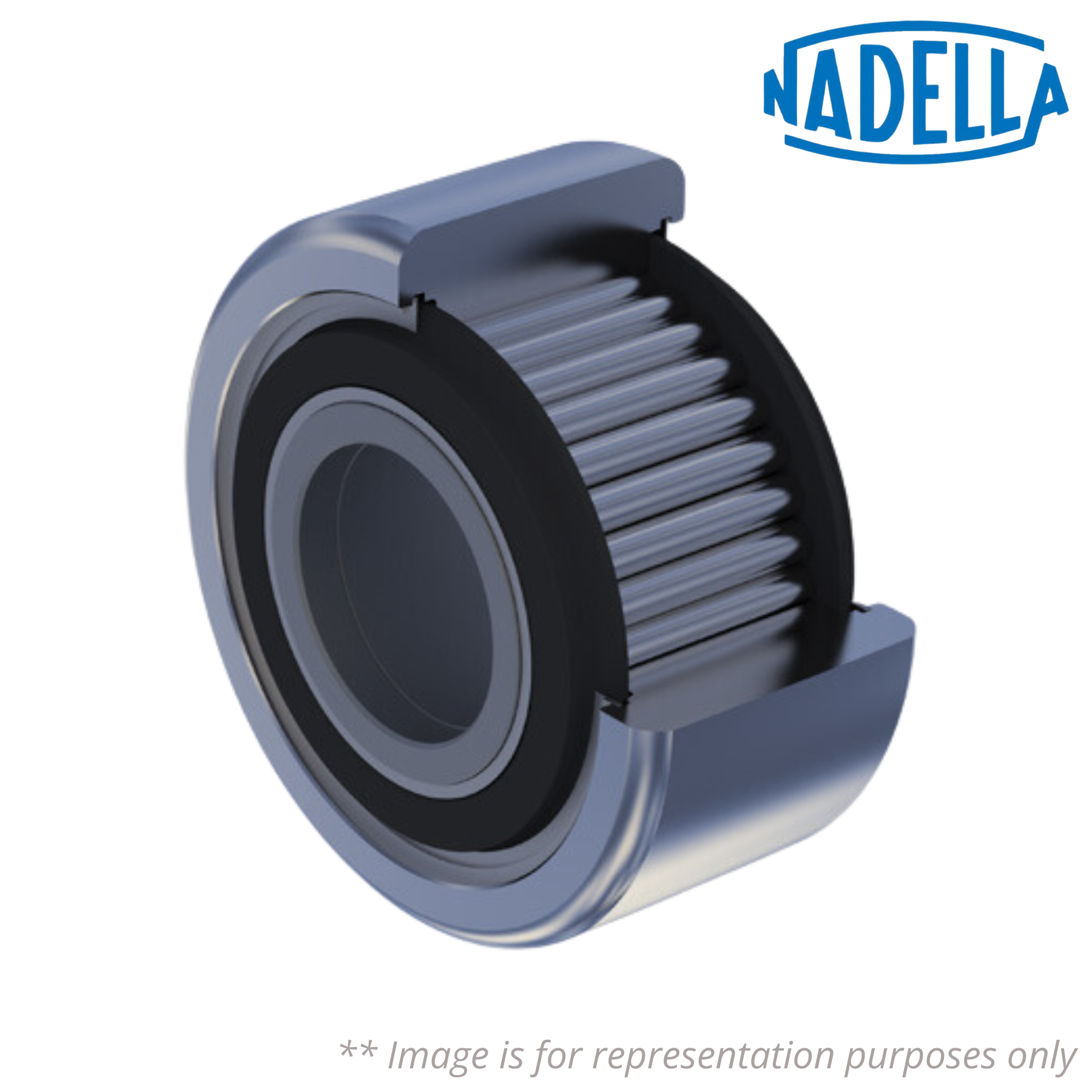

FG 20 47 EE NADELLA

Brand - NADELLA
Item Number - FG 20 47 EE NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG2047EE

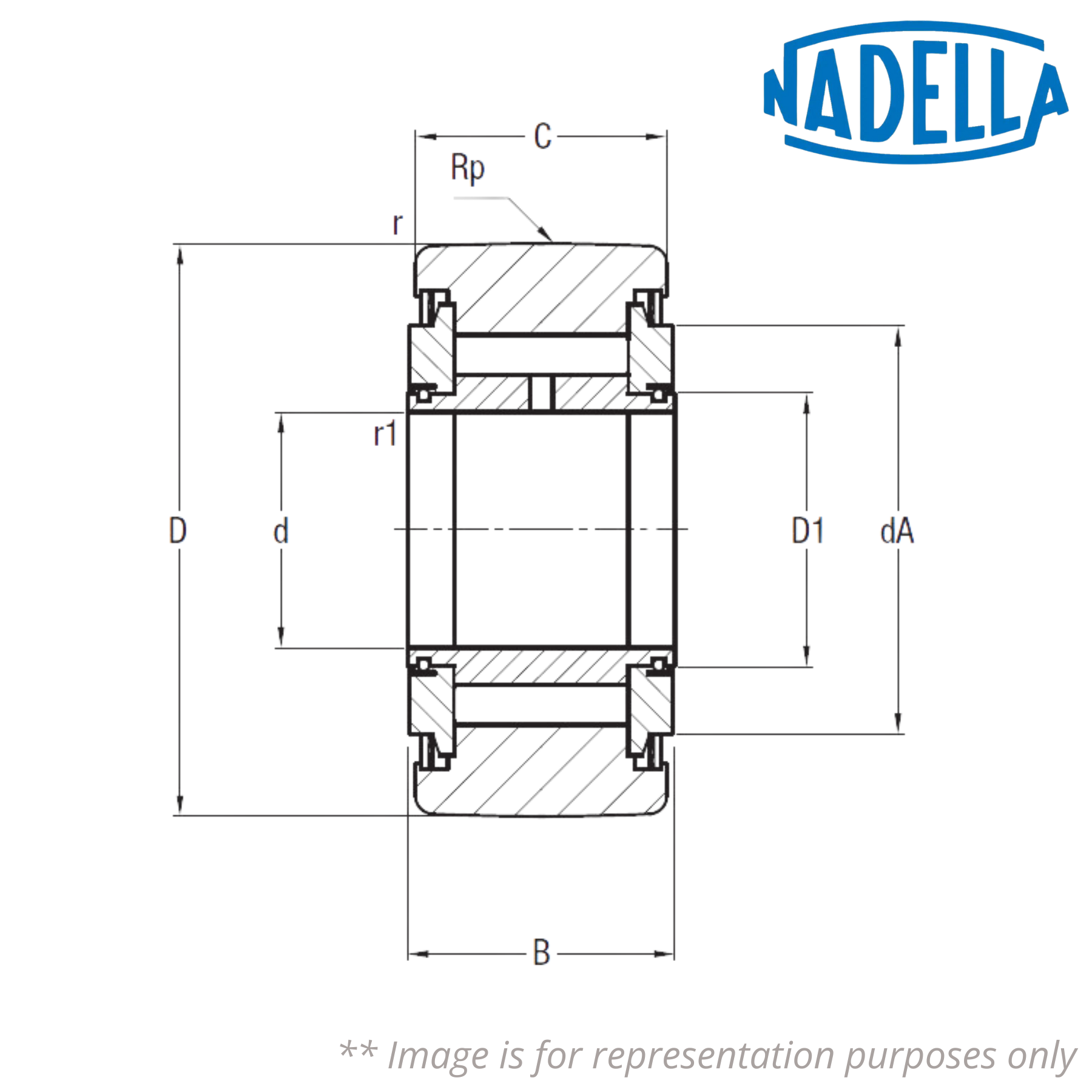

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 47 mm
Recommended Diameter for Pivot (d) - 20 mm
Dimension (B) - 25 mm
Dimension (C) - 24 mm
Dimension (D1) - 25.7 mm
Minimum Recommended Abutment Support Diameter (dA) * - 35 mm
Dimension (r) - 1 mm
Dimension (r1) - 0.3 mm
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) - 1200 mm
Load Coefficient (Cw) - 27000 N
Dynamic Load Coefficient (Fr) - 22000 N
Static Load Coefficient (For) - 35000 N
Speed Limit with Grease - 1500 RPM
Weight - 0.295 kg

Description of Suffixes and Prefixes:
FG - Cam followers without stud
EE - With plastic seals available up to outer diameter of 90 mm

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations

♦♦ Images are for representation purposes only
