Description
Brand - NADELLA
Item Number - FG 17 40 NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG1740

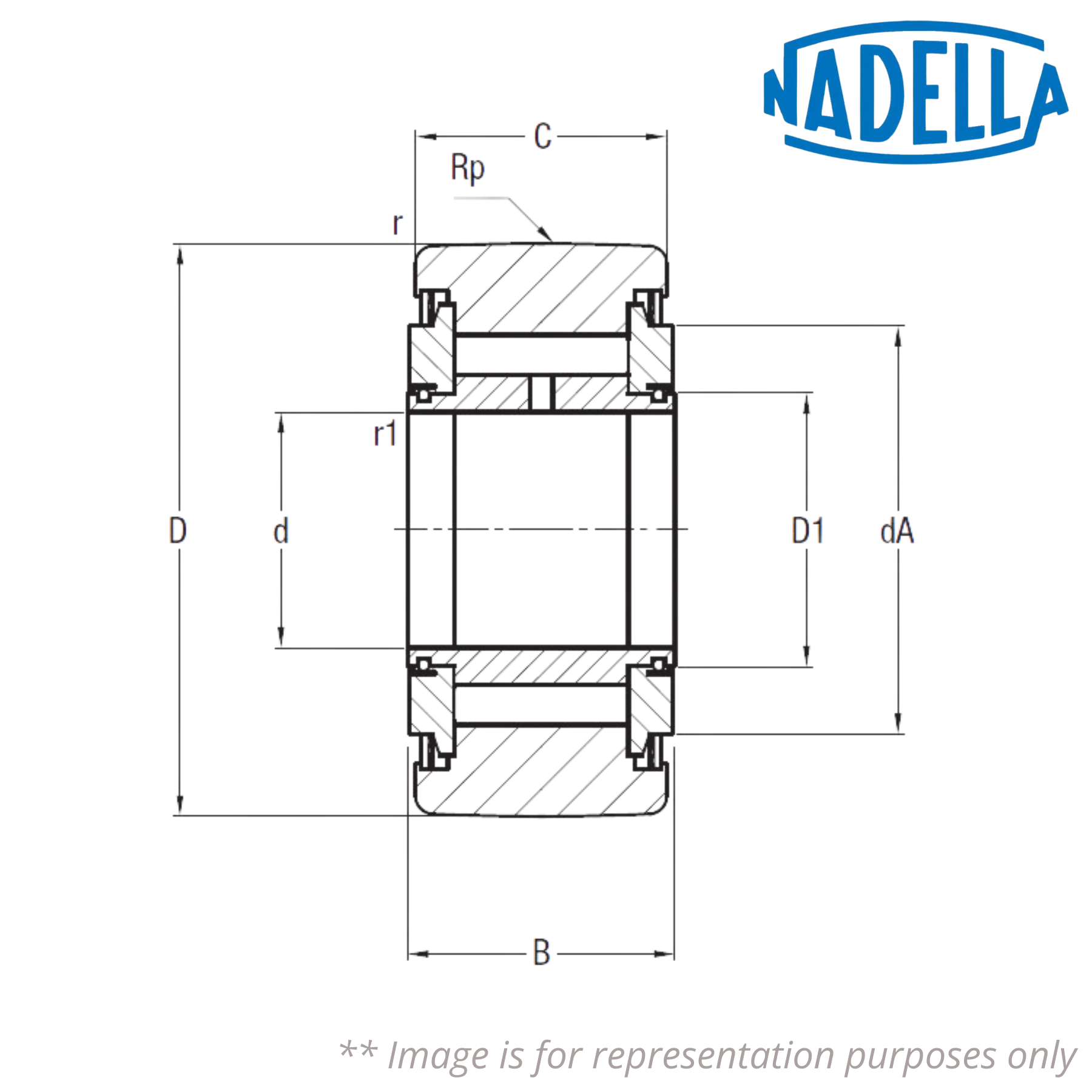

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 40 mm
Recommended Diameter for Pivot (d) - 17 mm
Dimension (B) - 21 mm
Dimension (C) - 20 mm
Dimension (D1) - 21.1 mm
Minimum Recommended Abutment Support Diameter (dA) * - 31 mm
Dimension (r) - 0.6 mm
Dimension (r1) - 0.3 mm
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) - 1000 mm
Load Coefficient (Cw) - 22000 N
Dynamic Load Coefficient (Fr) - 21000 N
Static Load Coefficient (For) - 34000 N
Speed Limit with Grease - 1800 RPM
Weight - 0.155 kg
Description of Prefix:
FG - Cam followers without stud
Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations

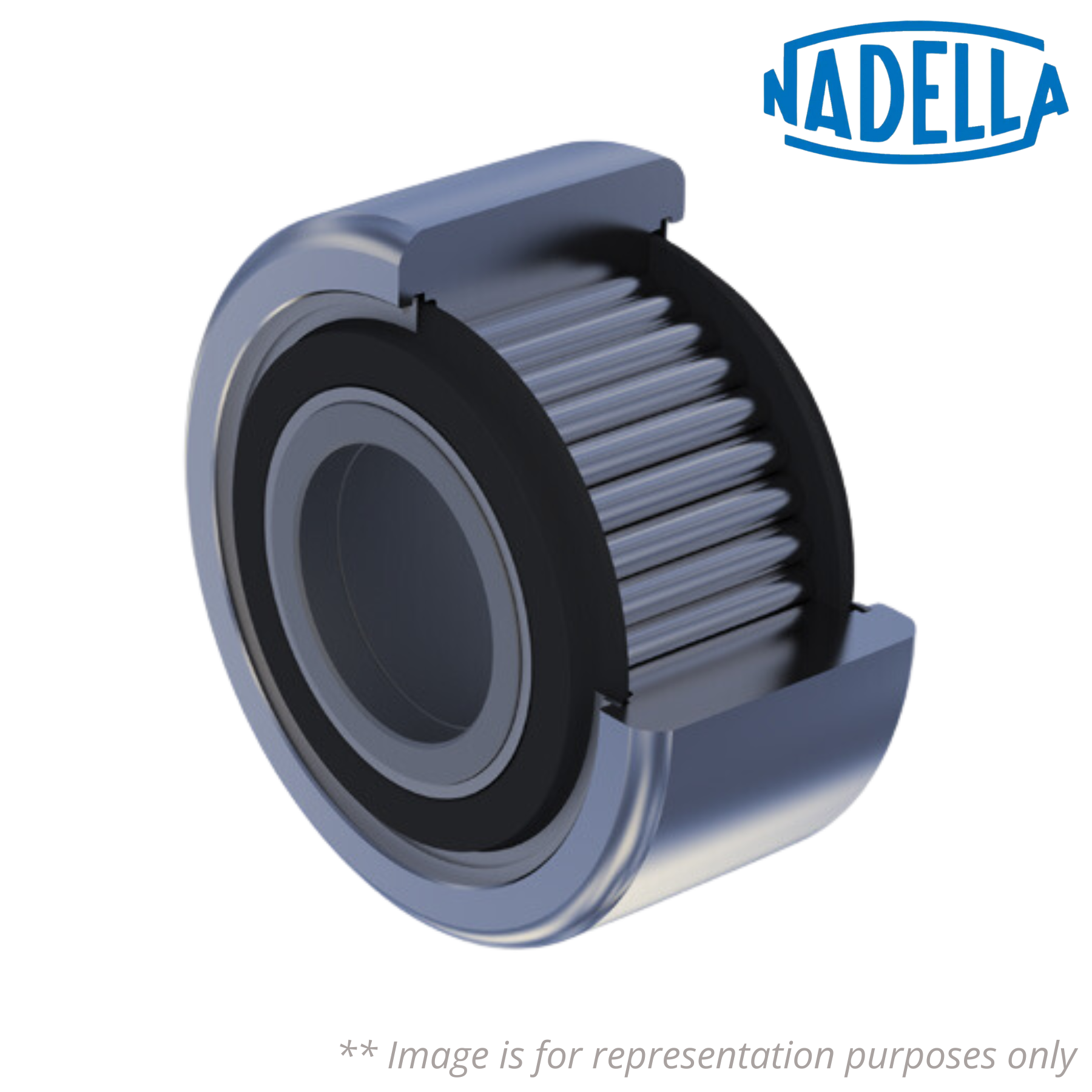

♦♦ Images are for representation purposes only
