FG 150 270 EEM SW NADELLA

Brand - NADELLA
Item Number - FG 150 270 EEM SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG150270EEMSW

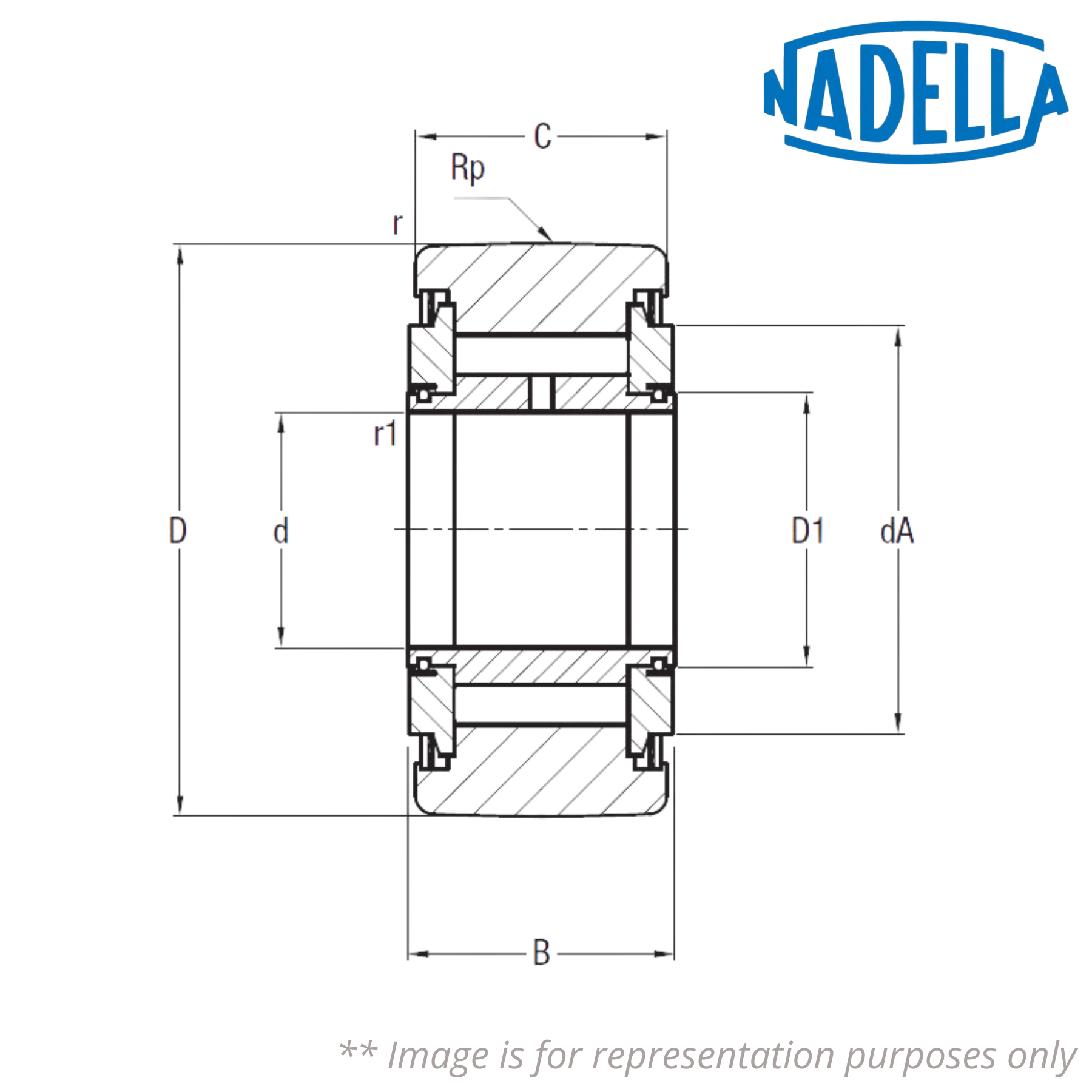

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 270 mm
Recommended Diameter for Pivot (d) - 150 mm
Dimension (B) - 78 mm
Dimension (C) - 75 mm
Dimension (D1) - 168 mm
Minimum Recommended Abutment Support Diameter (dA) * - 188 mm
Dimension (r) - 3 mm
Dimension (r1) - 1.5 mm
Constant Radius Crowning (Rp) - 1600 mm
Load Coefficient (Cw) - 300000 N
Dynamic Load Coefficient (Fr) - 540000 N
Static Load Coefficient (For) - 860000 N
Speed Limit with Grease - 250 RPM
Weight - 22 kg

Description of Suffixes and Prefixes:
FG - Cam followers without stud
EEM - With Metal seals
SW - with optimised outer profile ring without seal

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations

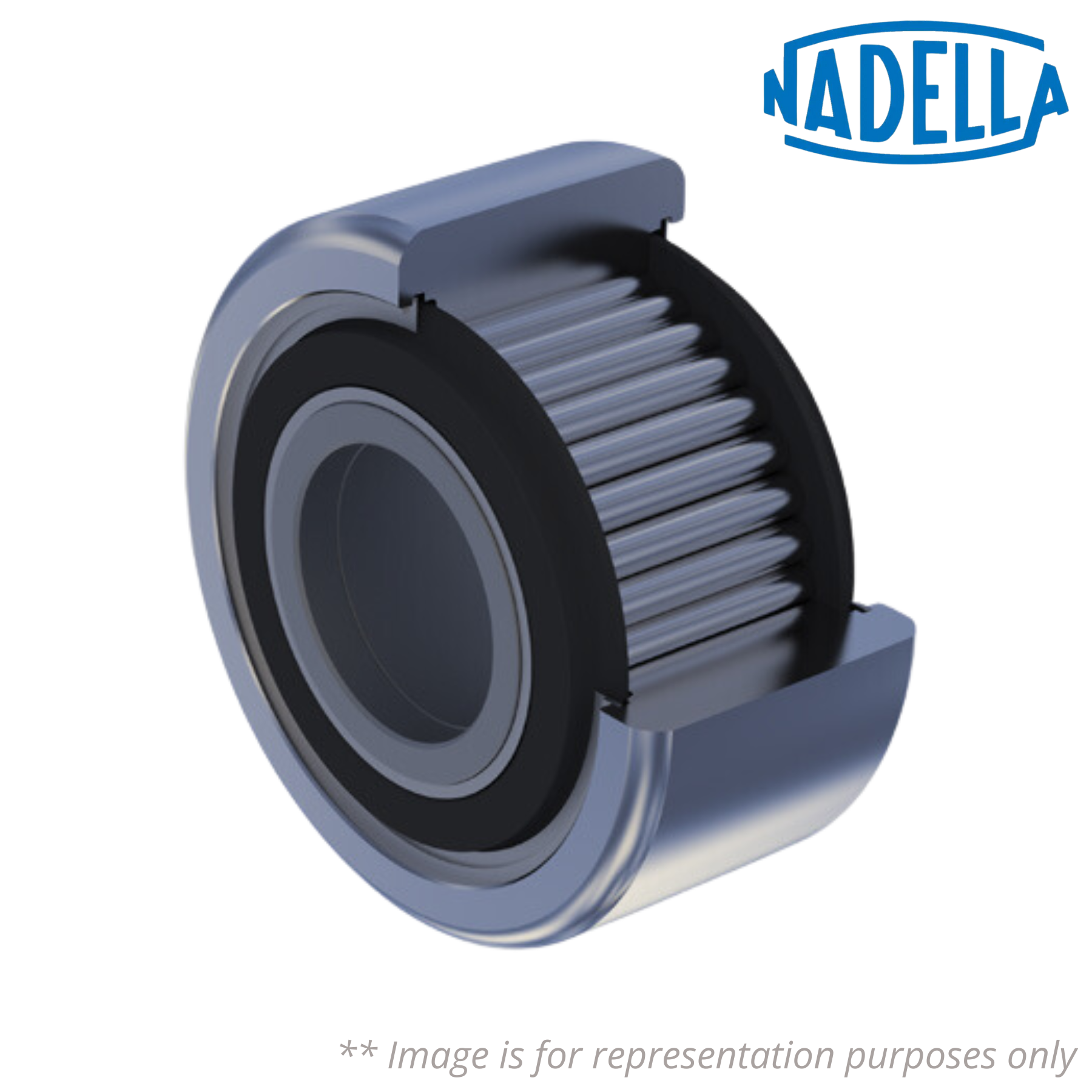

♦♦ Images are for representation purposes only
