Description
Brand - NADELLA
Item Number - FG 15 35 EEM SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG1535EEMSW

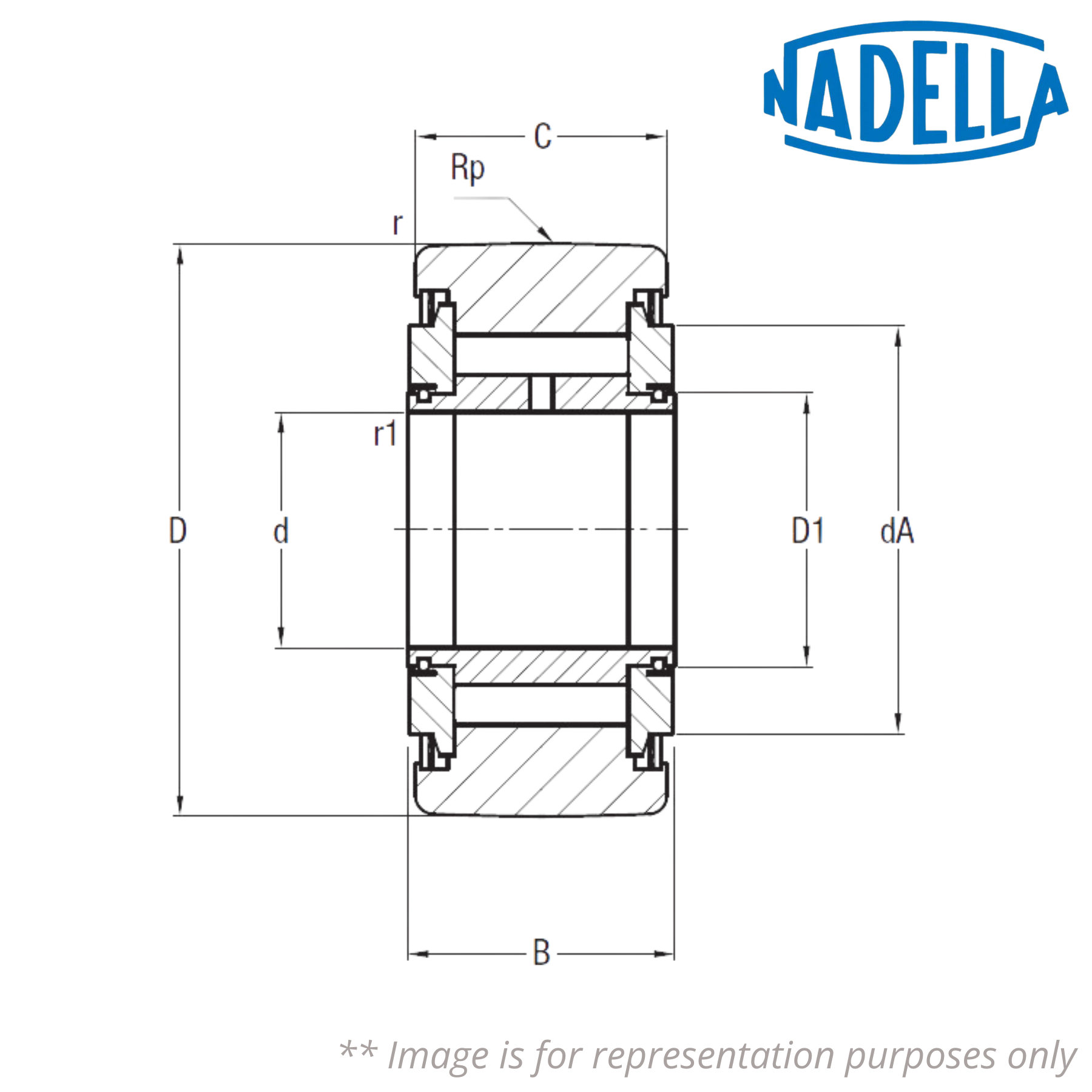

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 35 mm
Recommended Diameter for Pivot (d) - 15 mm
Dimension (B) - 19 mm
Dimension (C) - 18 mm
Dimension (D1) - 18.7 mm
Minimum Recommended Abutment Support Diameter (dA) * - 26 mm
Dimension (r) - 0.6 mm
Dimension (r1) - 0.3 mm
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) - 800 mm
Load Coefficient (Cw) - 17000 N
Dynamic Load Coefficient (Fr) - 15000 N
Static Load Coefficient (For) - 24000 N
Speed Limit with Grease - 2000 RPM
Weight - 0.103 kg
Description of Suffixes and Prefixes:
FG - Cam followers without stud
EEM - With Metal seals
SW - with optimised outer profile ring without seal
Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations

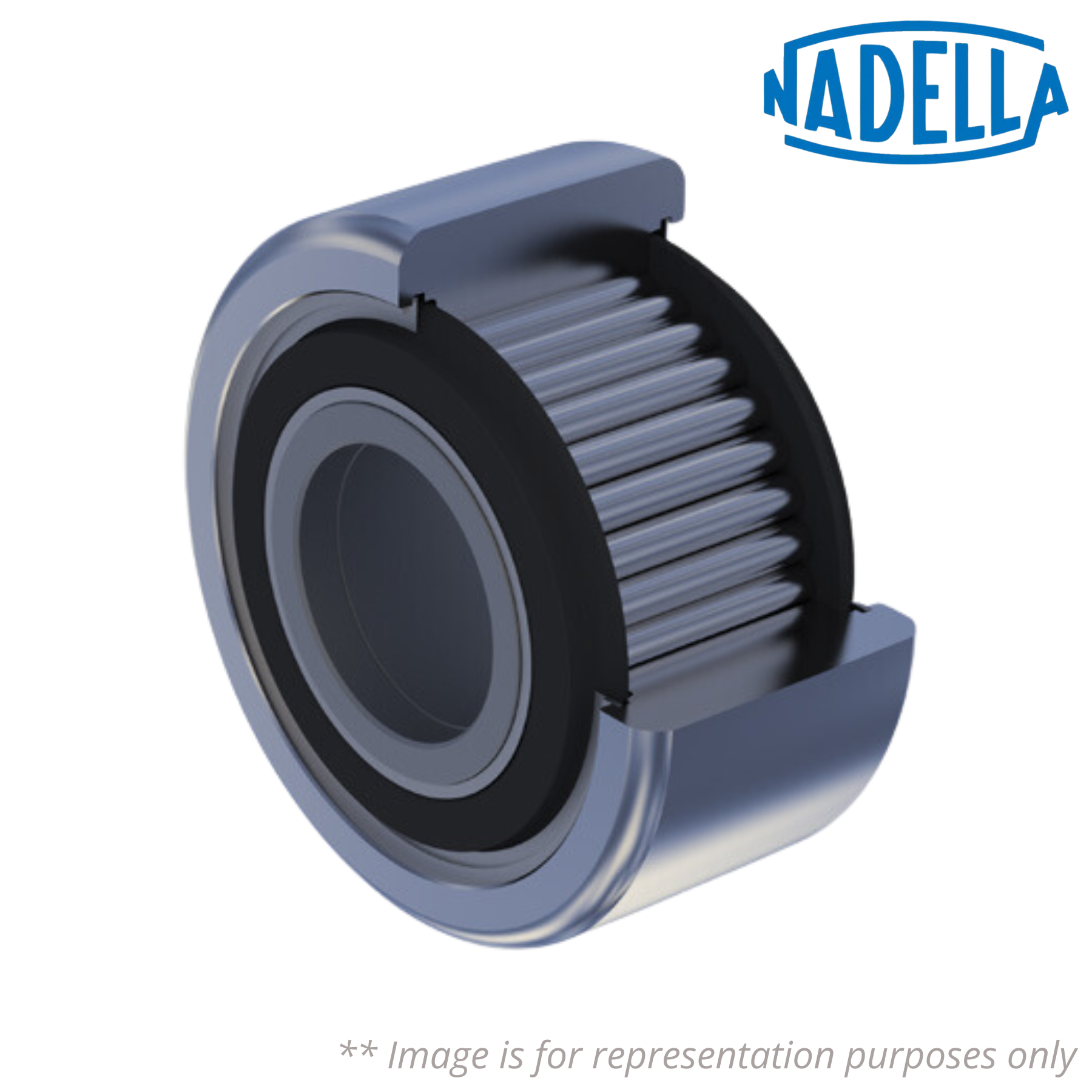

♦♦ Images are for representation purposes only
