Description
Brand - NADELLA
Item Number - FG 10 30 EEM NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG1030EEM

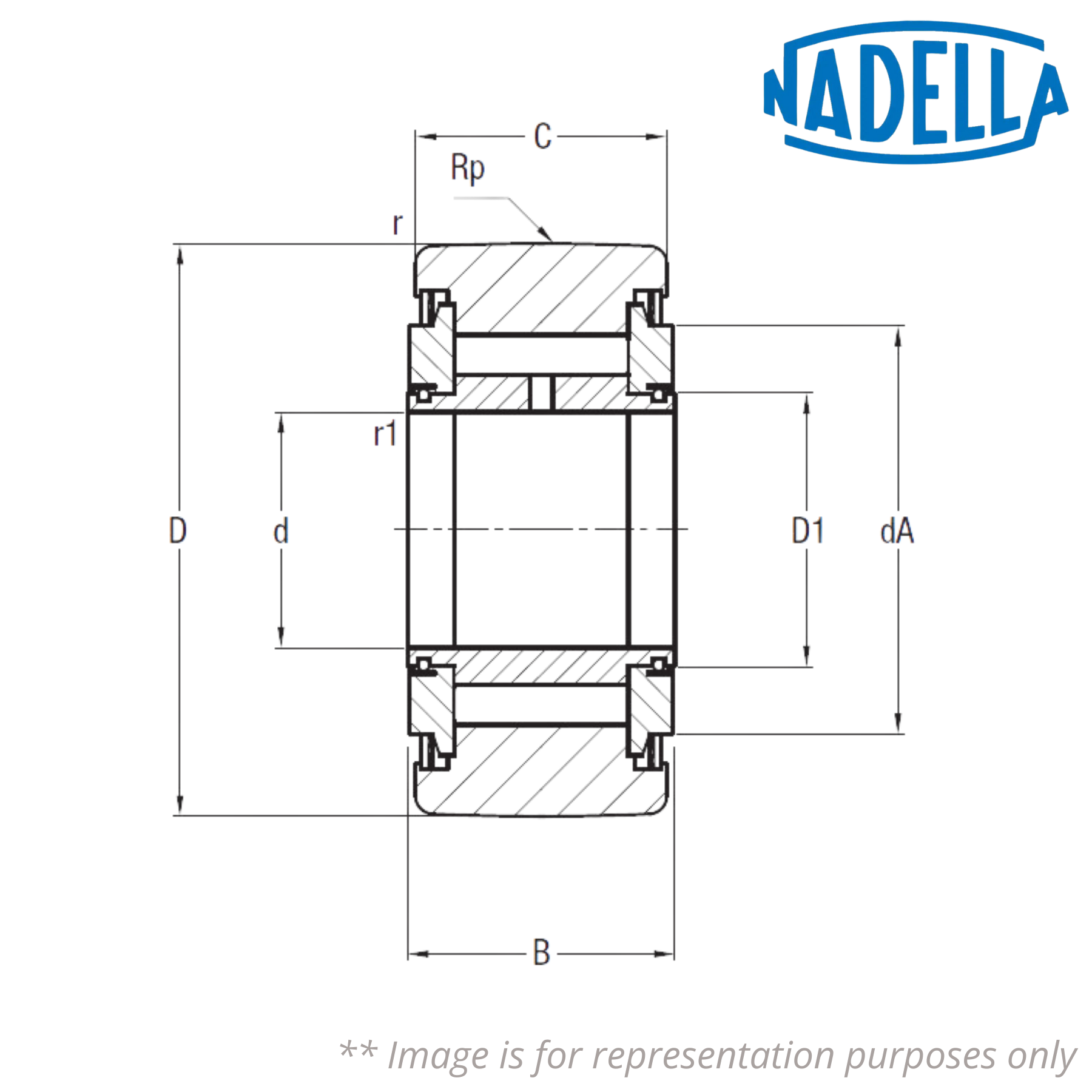

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 30 mm
Recommended Diameter for Pivot (d) - 10 mm
Dimension (B) - 15 mm
Dimension (C) - 14 mm
Dimension (D1) - 13.8 mm
Minimum Recommended Abutment Support Diameter (dA) * - 22 mm
Dimension (r) - 0.6 mm
Dimension (r1) - 0.3 mm
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) - 700 mm
Load Coefficient (Cw) - 13000 N
Dynamic Load Coefficient (Fr) - 12000 N
Static Load Coefficient (For) - 15000 N
Speed Limit with Grease - 2600 RPM
Weight - 0.066 kg
Description of Suffixes and Prefixes:
FG - Cam followers without stud
EEM - With Metal seals
Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations

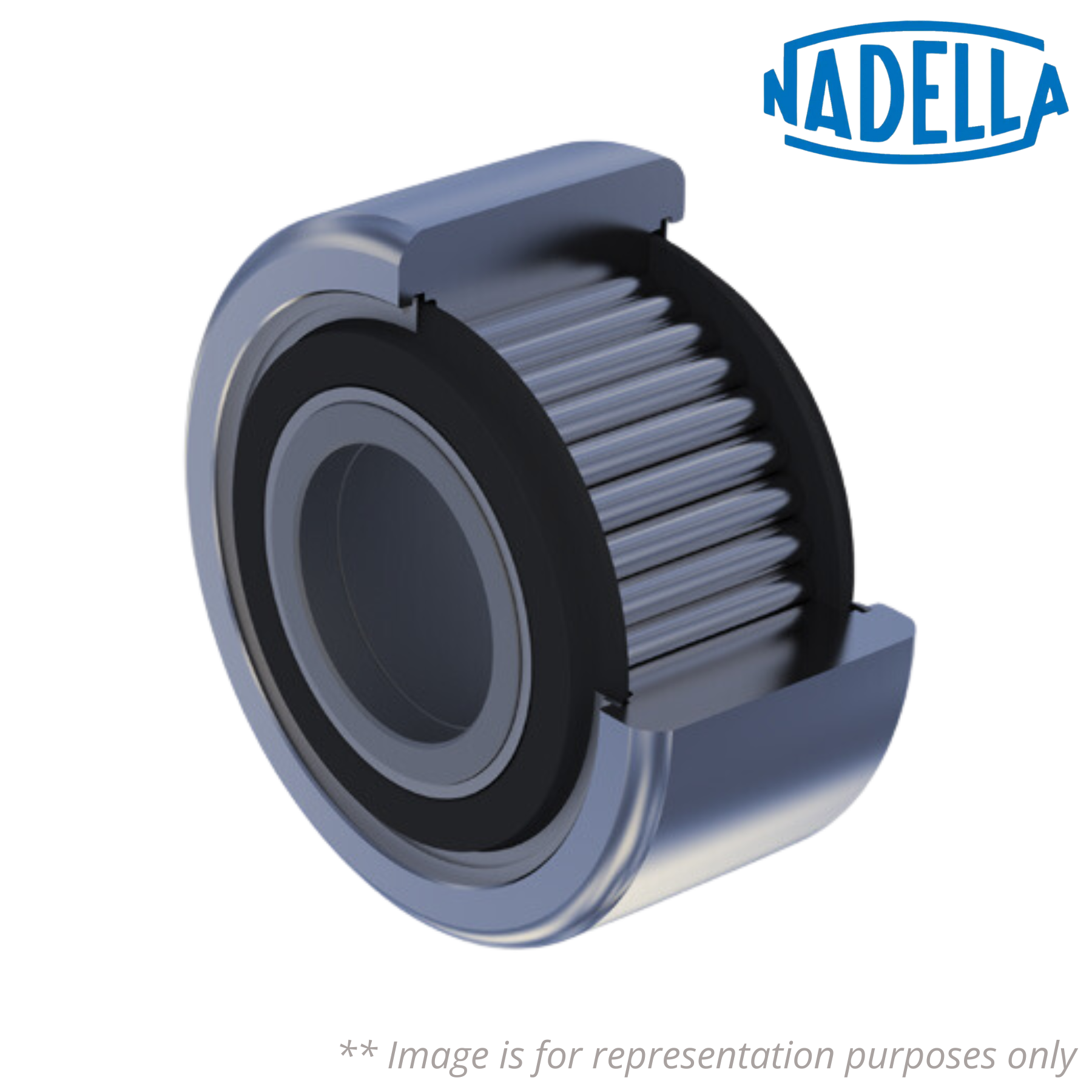

♦♦ Images are for representation purposes only
