Brand - RINGSPANN
Part Number - FCN 8 R RINGSPANN
Category - Internal Freewheels FCN...R

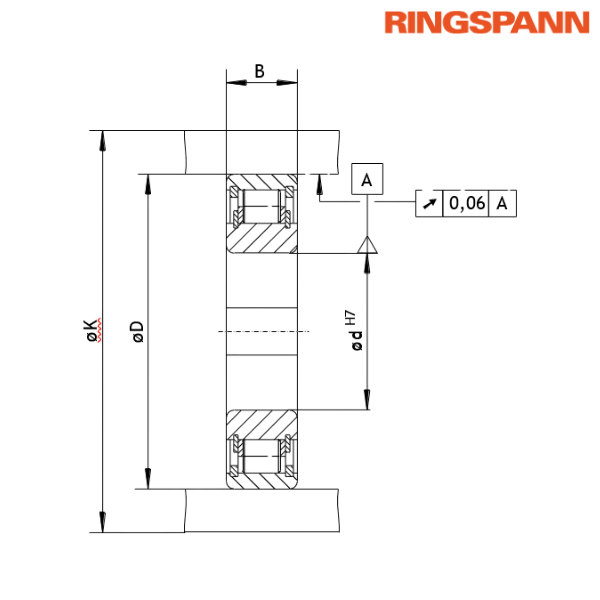

Principal Dimensions & Specifications (Metric):
Bore Diameter (d) - 8 mm
Dimension (B) - 8 mm
Dimension (D) - 24 mm
Dimension (K) - 28 mm
Weight - 0.02 kg
Type - Standard Type for Universal Use
Nominal Torque (MN) - 3.2 Nm
Maximum Speed for Inner Ring Freewheels/ Overruns - 4300 RPM
Maximum Speed for Outer Ring Freewheels/ Overruns - 6700 RPM
Description of Suffix:
R - Standard Type for Universal Use
Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• An oil lubrication of the specified quality must be provided
• Press fir on the outer ring with rollers
Features:
• Internal Freewheels FCN … R are roller freewheels with no bearing support and sized to match series 62 ball bearing dimensions
• The outer ring is press-fitted into the customer housing, allowing for compact and space-saving installation
• Designed to handle nominal torques up to 840 Nm
• Available with bores up to 80 mm
Application as: Backstop, Overrunning Clutch, Indexing Freewheel
Application Example:
• Internal Freewheel FCN 30 R is used as an overrunning freewheel in the roof brush drive of an automatic car washing facility
• The freewheel is integrated in the hub of a shaft coupling, which connects the motor to the reduction gear
• The roof brush is lifted by the drive when the freewheel operates in driving mode
• The motor rotation direction is reversed to lower the brush
• The downward movement of the brush occurs by its own weight, controlled by the motor's speed
Mounting:
• Internal Freewheels FCN … R are supplied without bearing support
• To achieve the specified torque ratings, the outer ring must be installed in a housing with an external diameter K
• The housing must be made of steel or grey cast iron, with a minimum quality of GG-20
• The housing bore tolerance must be ISO H7 or J6
• The shaft tolerance must be ISO h6 or j6

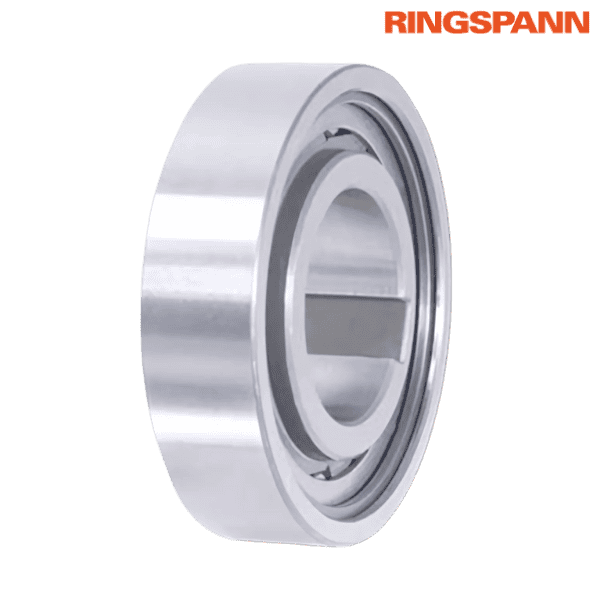

♦ ♦ Images are for representation purposes only
