Description
Brand - RINGSPANN
Part Number - FCN 35 R RINGSPANN
Category - Internal Freewheels FCN...R

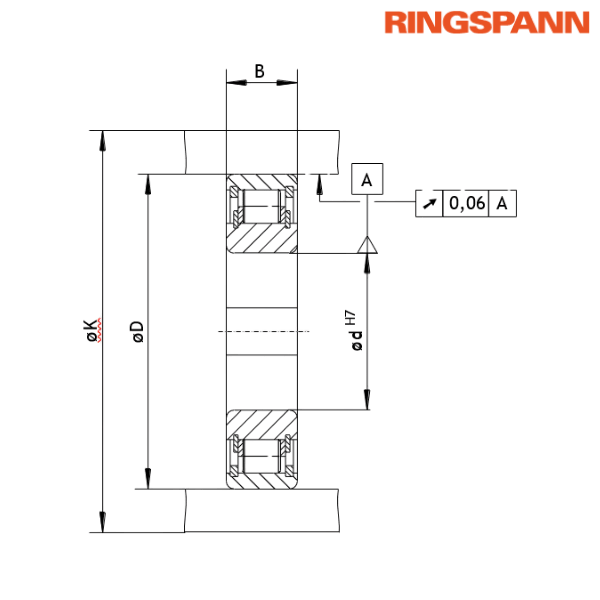

Principal Dimensions & Specifications (Metric):
Bore Diameter (d) - 35* mm
Dimension (B) - 17 mm
Dimension (D) - 72 mm
Dimension (K) - 80 mm
Weight - 0.32 kg
Type - Standard Type for Universal Use
Nominal Torque (MN) - 135 Nm
Maximum Speed for Inner Ring Freewheels/ Overruns - 1350 RPM
Maximum Speed for Outer Ring Freewheels/ Overruns - 2100 RPM
Description of Suffix:
R - Standard Type for Universal Use
Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• An oil lubrication of the specified quality must be provided
• Press fir on the outer ring with rollers
* Keyway according to DIN 6885
Features:
• Internal Freewheels FCN … R are roller freewheels with no bearing support and sized to match series 62 ball bearing dimensions
• Designed to handle nominal torques up to 840 Nm
• Available with bores up to 80 mm
Application as: Backstop, Overrunning Clutch, Indexing Freewheel
Application Example:
• Internal Freewheel FCN 30 R is used as an overrunning freewheel in the roof brush drive of an automatic car washing facility
• The freewheel is integrated in the hub of a shaft coupling, which connects the motor to the reduction gear
• The roof brush is lifted by the drive when the freewheel operates in driving mode
• The motor rotation direction is reversed to lower the brush
• The downward movement of the brush occurs by its own weight, controlled by the motor's speed
Mounting:
• Internal Freewheels FCN … R are supplied without bearing support
• The concentric alignment of the inner and outer rings must be ensured by the customer
• To achieve the specified torque ratings, the outer ring must be installed in a housing with an external diameter K
• The housing must be made of steel or grey cast iron, with a minimum quality of GG-20
• The housing bore tolerance must be ISO H7 or J6
• The shaft tolerance must be ISO h6 or j6

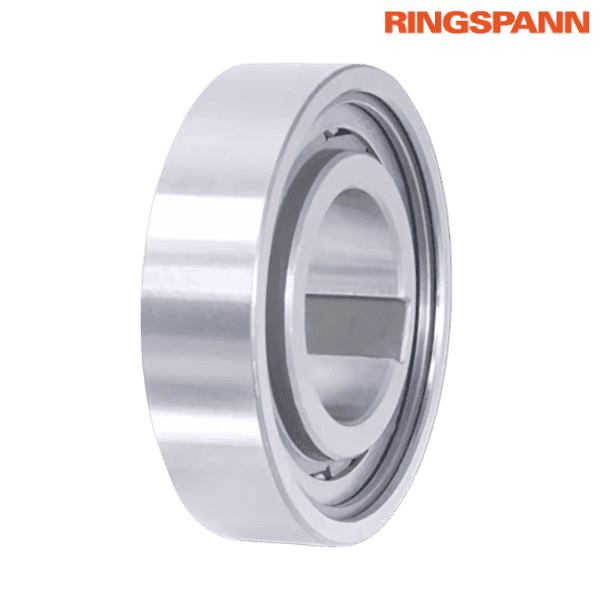

♦ ♦ Images are for representation purposes only
