Description
Brand - Link-Belt

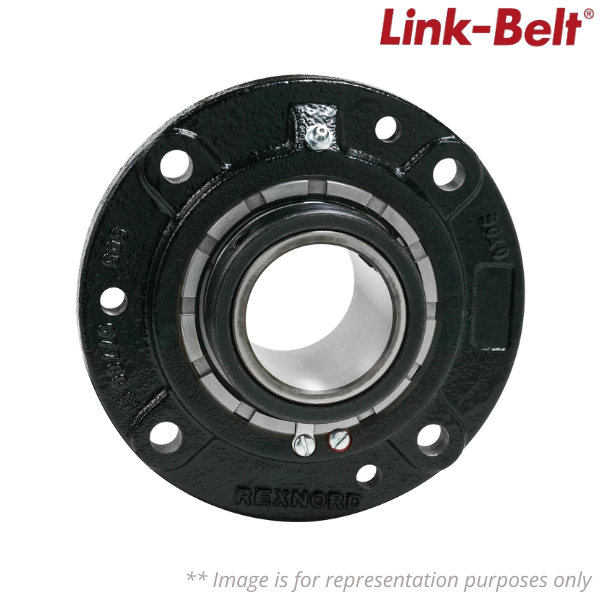

Item Number - FCB22432HHC3 Link-Belt
Category - Flanged Cartridge Blocks Spherical Roller Bearings
UPC - 662327676605
Material - 10412819
Bore Size (in) - 2 in
Clearance - C3 INCREASED
Fixed vs. Expansion - Fixed
Housing Construction - Solid
Housing Material - Cast Iron
Housing Style - Flange Block
Housing Type - Flange, Cartridge
Locking Type - Single Set Collar
Retainer Material - Steel
Seal Type - Labyrinth Seal
Auxiliary Seals - 1 LB STYLE CLOSED CAP STEEL
Available End Cap - B432EC
Available Seal Type - E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Bolt Hole Circle Diameter (in) - 5 3/8 in
Bolt Size (in) - 2 in
Bore Length (in) - 3 1/8 in
Distance Between Bolt Holes (in) - 3 51/64 in
Distance from Housing Cast Face to End of Pilot End (in) - 2 7/16 in
Distance from Housing Cast Face to Inner Ring Long Hub Face (in) - 21/32 in
Distance from Mounting Surface to Cap Face (in) - 1 29/32 in
Distance from Mounting Surface to End of Pilot End (in) - 1 9/16 in
Distance from Mounting Surface to Outer Most Bearing Face (in) - 1 17/32 in
Grease Fitting Thread Size - 1/8 NPT
Height - 6.5
Housing Coating - POWDER COATED
