Description
Brand - ZEN
Item Number - FBL207 ZEN
Category - Thermoplastic Pillow Blocks (FBL)

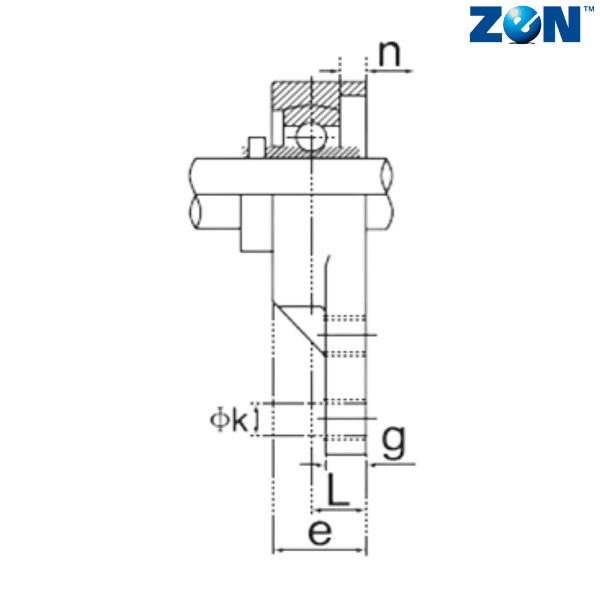

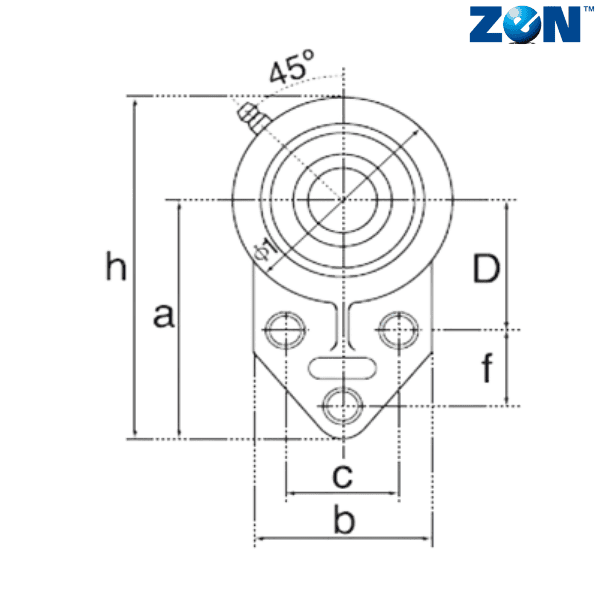

Overall Length (a) mm - 109.5
b (mm) - 98
c (mm) - 50.8
D (mm) - 60.3
e (mm) - 47.1
f (mm) - 31.8
g (mm) - 16.1
h (mm) - 157
k (mm) - 13.1
n (mm) - 17.5
Bolt Diameter - M12
Weight (kg) - 0.23
Bearing - SUC207

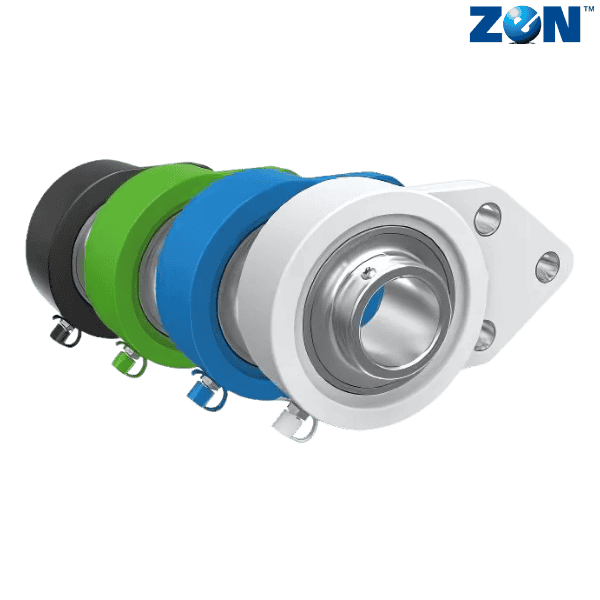

** Images are for representation purposes only
