Description
Brand - ZEN
Item Number - FBL206 ZEN

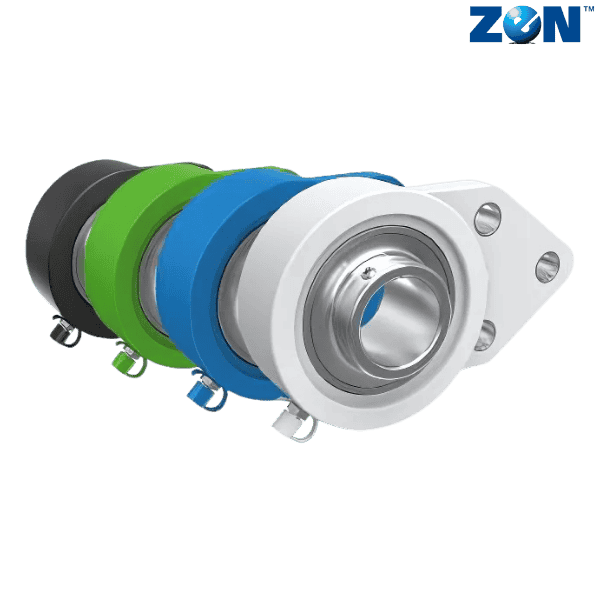

Category - Thermoplastic Pillow Blocks (FBL)

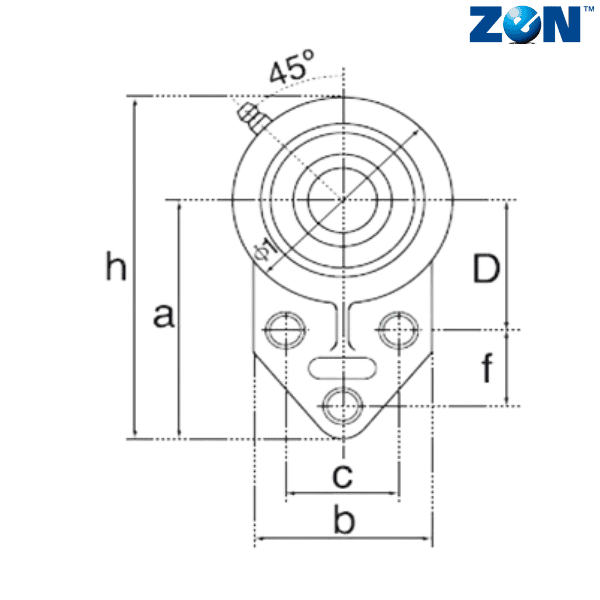

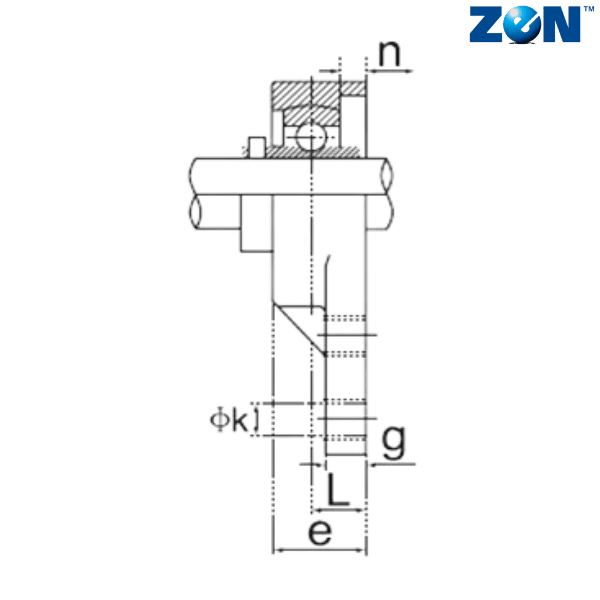

Overall Length (a) mm - 96.5
b (mm) - 76
c (mm) - 47.6
D (mm) - 52.4
e (mm) - 41.5
f (mm) - 31.8
g (mm) - 13.3
h (mm) - 138.5
k (mm) - 10.7
n (mm) - 15.9
Bolt Diameter - M10
Weight (kg) - 0.16
Bearing - SUC206
** Images are for representation purposes only
