Description
Brand - ZEN
Item Number - FBL205 ZEN

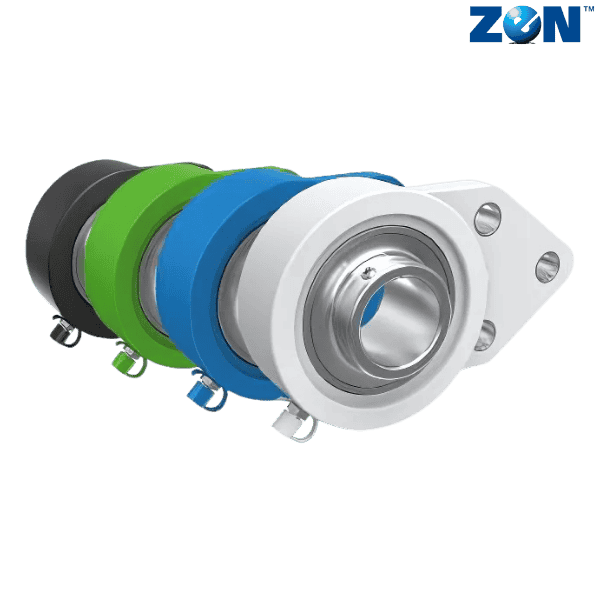

Category - Thermoplastic Pillow Blocks (FBL)

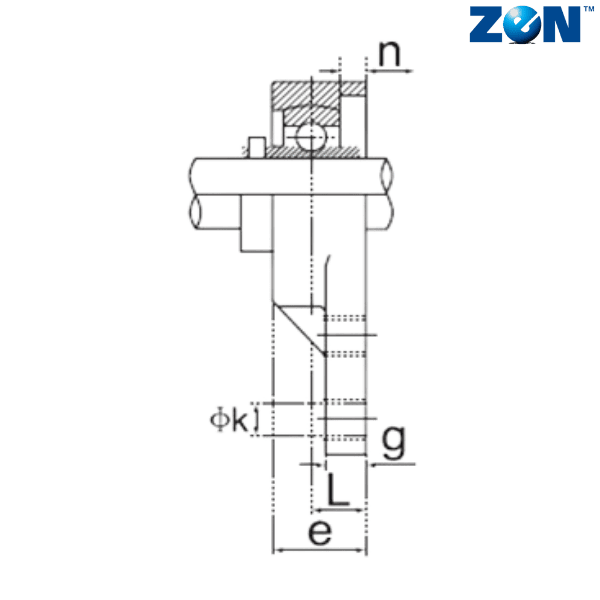

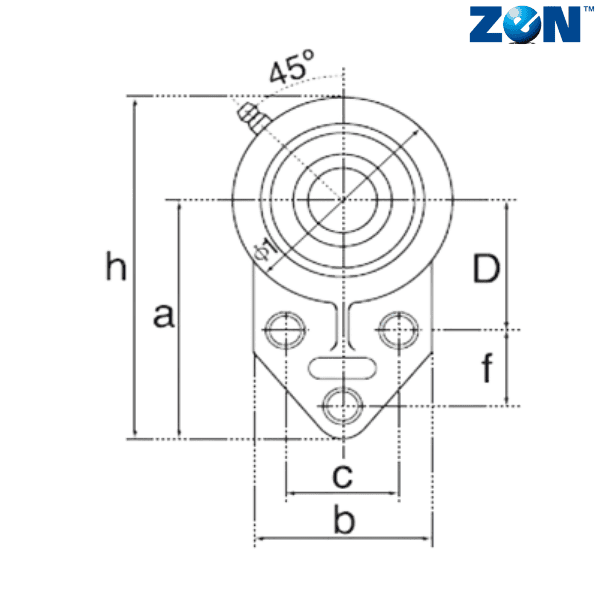

Overall Length (a) mm - 85.7
b (mm) - 63.5
c (mm) - 41.3
D (mm) - 46
e (mm) - 41.2
f (mm) - 28.6
g (mm) - 11.4
h (mm) - 120.6
k (mm) - 10.7
n (mm) - 14.3
Bolt Diameter - M10
Weight (kg) - 0.11
Bearing - SUC205
** Images are for representation purposes only
