Description
Brand - ZEN
Item Number - FBL204 ZEN

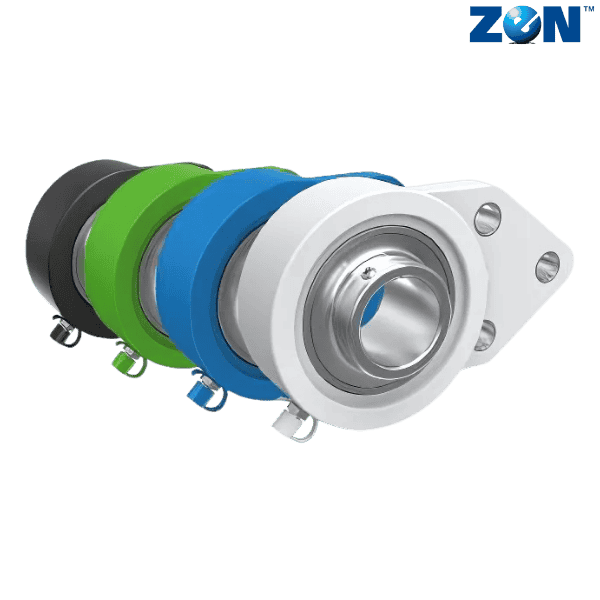

Category - Thermoplastic Pillow Blocks (FBL)

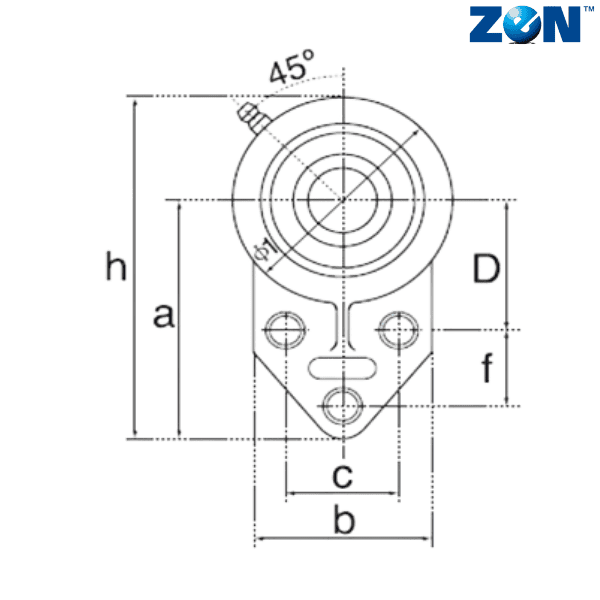

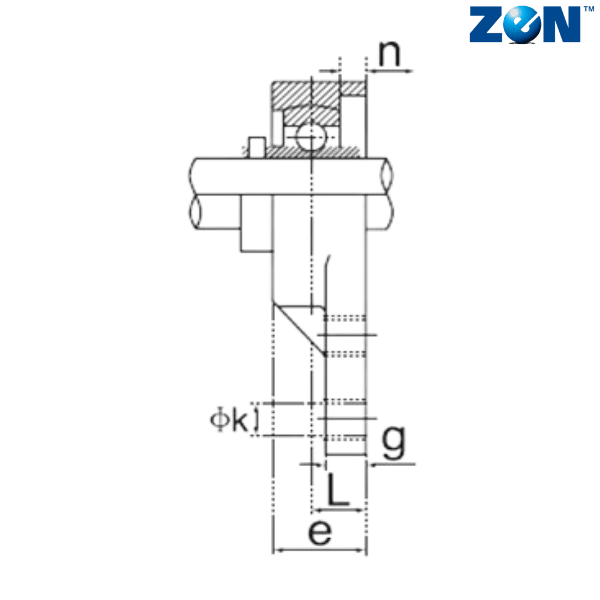

Overall Length (a) mm - 76.2
b (mm) - 62
c (mm) - 38.1
D (mm) - 42.9
e (mm) - 33.7
f (mm) - 22.2
g (mm) - 11.4
h (mm) - 108
k (mm) - 10.7
n (mm) - 12.7
Bolt Diameter - M10
Weight (kg) - 0.08
Bearing - SUC204
** Images are for representation purposes only
