Brand - RINGSPANN
Part Number - FAV 40 RINGSPANN
Category - Complete Freewheels FAV

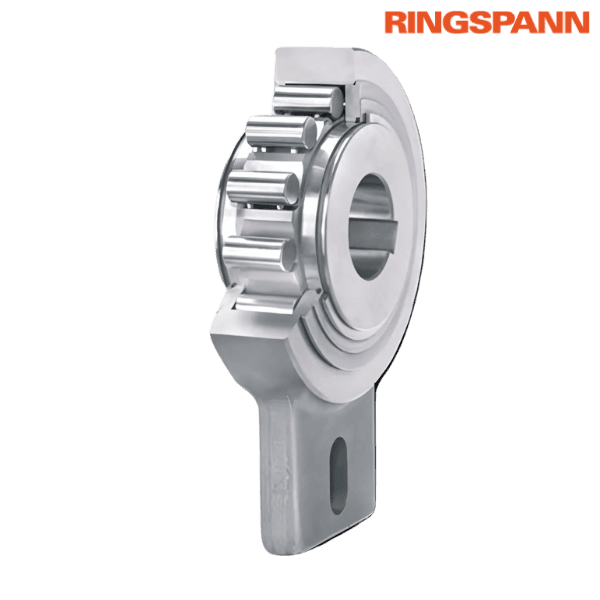

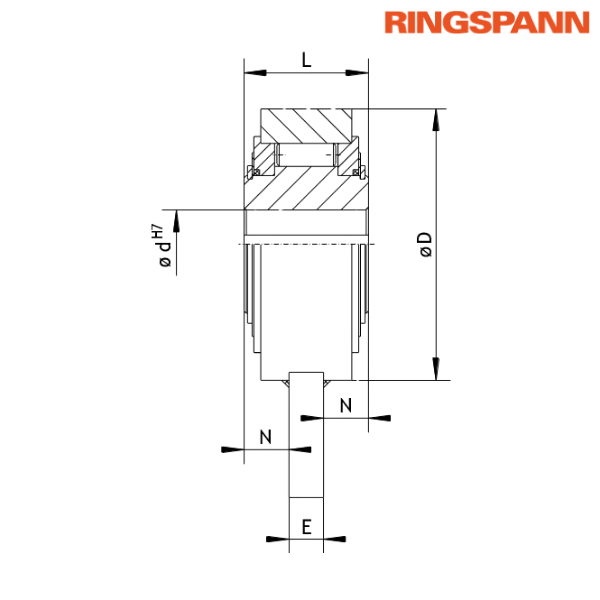

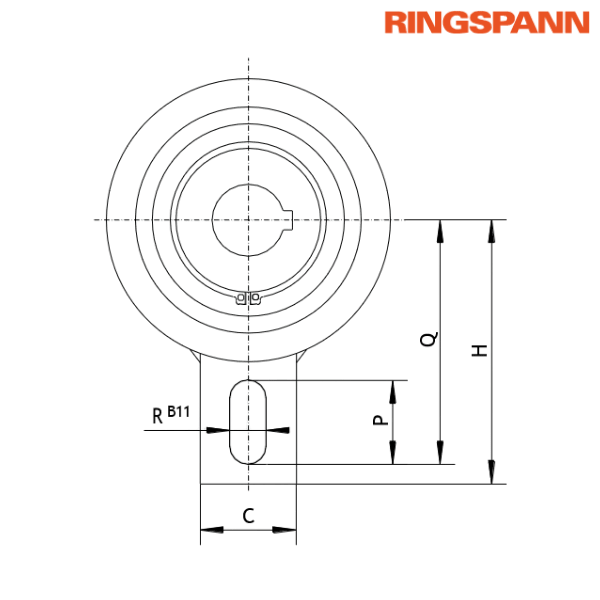

Principal Dimensions & Specifications (Metric):
Bore Diameter (d) - 40 mm
Dimension (C) - 40 mm
Dimension (D) - 118 mm
Dimension (E) - 15 mm
Dimension (H) - 110 mm
Dimension (L) - 54 mm
Dimension (N) - 19.5 mm
Dimension (P) - 35 mm
Dimension (Q) - 102 mm
Dimension (R) - 15 mm
Weight - 3.3 kg
Type - Standard Type
Nominal Torque (MN) - 1025 Nm
Maximum Speed of Inner Ring Freewheels - 350 RPM
Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• Tolerance of keyway width JS10
• Keyway according to DIN 6885
Features:
• Designed to handle nominal torques up to 2,500 Nm
• Available with bores up to 80 mm
Application as: Backstop, Indexing Freewheel (Suitable for use as a backstop in installations with low speeds during freewheeling operation. Can also be applied as an indexing freewheel in systems with a low to medium total number of actuations)
Application Example:
• Two Complete Freewheels FAV 50 are used in the roller feed of a sheet metal processing machine
• The indexing freewheel on the left is driven by a bell crank with an adjustable lift, allowing for infinitely adjustable feed settings
Mounting:
• The lever arm must not be rigidly clamped; it should allow 0.5 to 2 mm of axial and radial play
• The shaft tolerance must conform to ISO h6 or j6
