Description
Brand - ZEN
Item Number - F9-17 ZEN

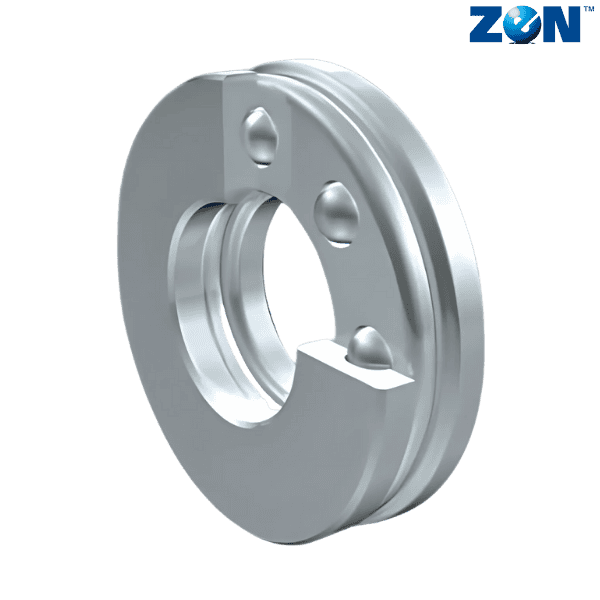

Category - Three Part Thrust Series
Inner ring dimension (d) mm - 9
Outer ring dimension (D) mm - 17
Width (B) mm - 5
Dynamic Load Rating (N) - 578
Static Load Rating (N) - 627
Limiting Speed (Oil) - 3.5
Weight (kg) - 0.006
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
F - Metric with Flange
** Images are for representation purposes only
