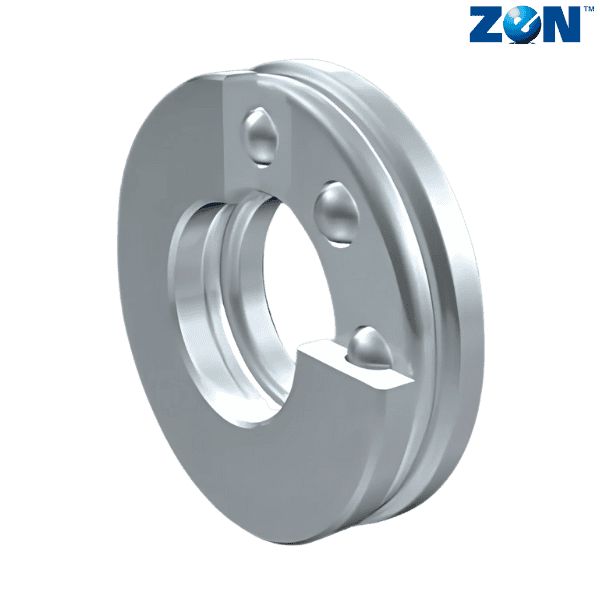

Description
Brand - ZEN
Item Number - F7-15 ZEN
Category - Three Part Thrust Series
Inner ring dimension (d) mm - 7
Outer ring dimension (D) mm - 15
Width (B) mm - 5
Dynamic Load Rating (N) - 559
Static Load Rating (N) - 549
Limiting Speed (Oil) - 3.8
Weight (kg) - 0.005
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
F - Metric with Flange
** Images are for representation purposes only
