Description
Brand - ZEN
Item Number - F5-10 ZEN

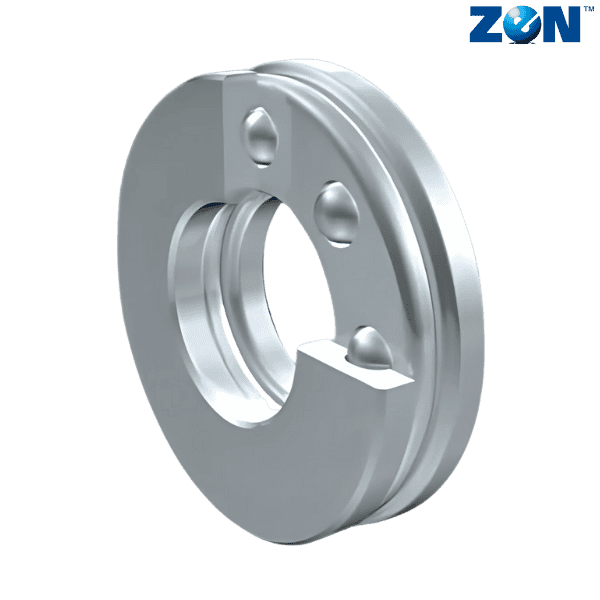

Category - Three Part Thrust Series

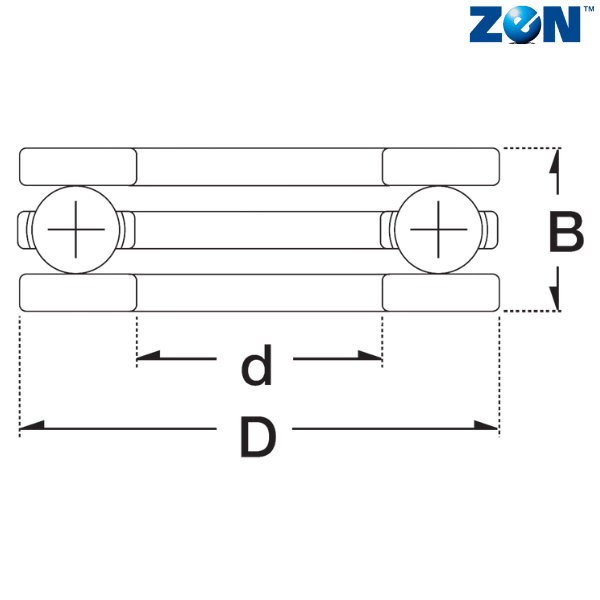

Inner ring dimension (d) mm - 5
Outer ring dimension (D) mm - 10
Width (B) mm - 4
Dynamic Load Rating (N) - 284
Static Load Rating (N) - 284
Limiting Speed (Oil) - 5
Weight (kg) - 0.003
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
F - Metric with Flange
** Images are for representation purposes only
