Description
Brand - ZEN
Item Number - F4-9-M ZEN
Category - Three Part Thrust Series

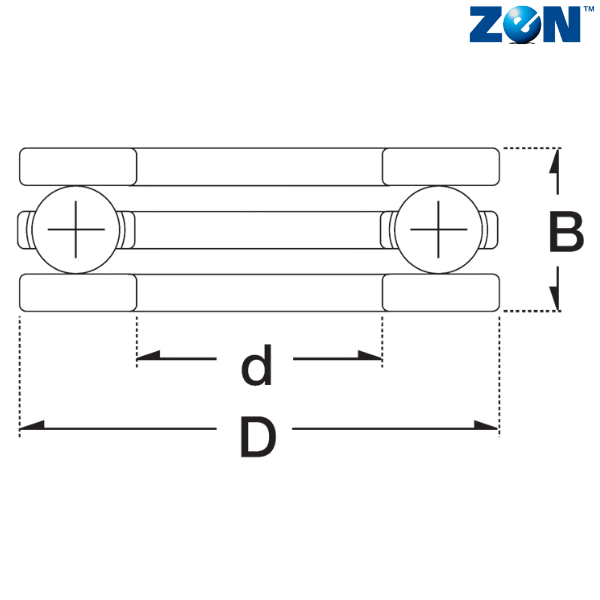

Inner ring dimension (d) mm - 4
Outer ring dimension (D) mm - 9
Width (B) mm - 4
Dynamic Load Rating (N) - 167
Static Load Rating (N) - 157
Limiting Speed (Oil) - 6.5
Weight (kg) - 0.001
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
M - Brass Cage
F - Metric with Flange

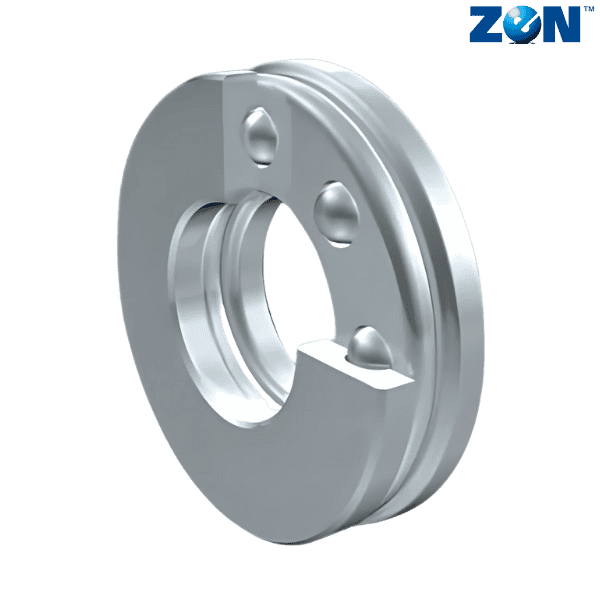

** Images are for representation purposes only
