Description
Brand - ZEN
Item Number - F4-10 ZEN
Category - Three Part Thrust Series

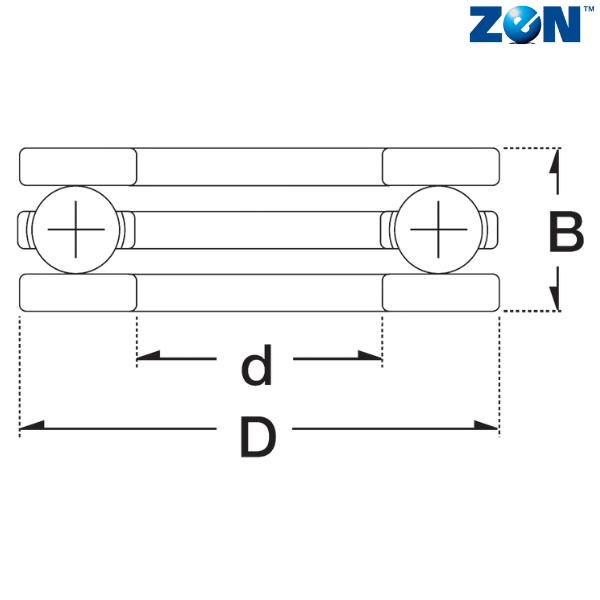

Inner ring dimension (d) mm - 4
Outer ring dimension (D) mm - 10
Width (B) mm - 4.5
Dynamic Load Rating (N) - 274
Static Load Rating (N) - 245
Limiting Speed (Oil) - 6
Weight (kg) - 0.002
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
F - Metric with Flange

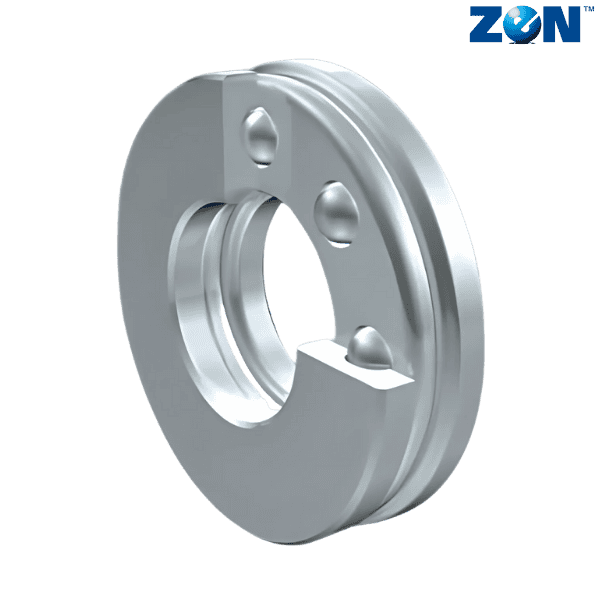

** Images are for representation purposes only
