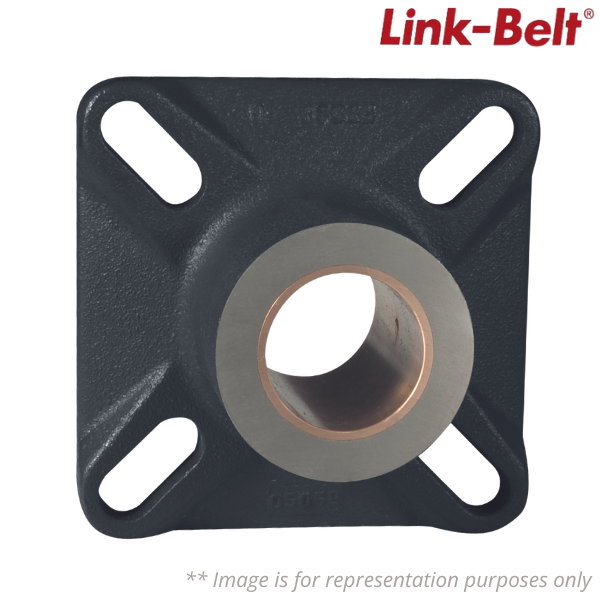

F2263Z Link-Belt

Brand - Link-Belt
Item Number - F2263Z Link-Belt
Category - Flange Blocks Sleeve Bearing
UPC - 662327036171
Material - 10418117
Model - F2200Z
Bore Size (in) - 3 15/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Flange Block
Housing Type - Flange Block, Four Bolt
Sleeve Material - Bronze
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Circle Diameter (in) - 9 1/2 in
Bore Length (in) - 8 in
Distance Between Bolt Holes [Max] (in) - 7 5/8 in
Distance Between Bolt Holes [Min] (in) - 6 23/32 in
Grease Fitting Size - 1/2 NPT
Insert - 285Y22227
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Size (in) - 7/8 in
Mounting Housing Width (in) - 1 1/2 in
Mounting Pad Width (in) - 9 3/4 in
Weight (kg) - 29.029888
Pipe Tap Size (in) - 1/2 in
