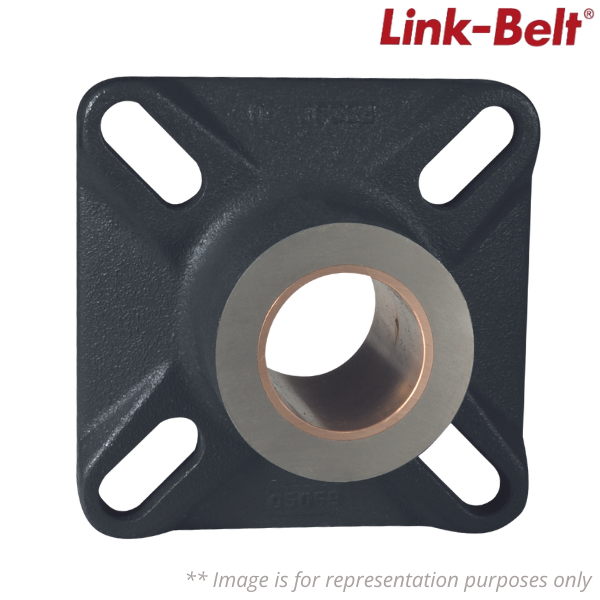

F2239Z Link-Belt

Brand - Link-Belt
Item Number - F2239Z Link-Belt
Category - Flange Blocks Sleeve Bearing
UPC - 662327036096
Material - 10434847
Model - F2200Z
Bore Size (in) - 2.4375 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Flange Block
Housing Type - Flange Block, Four Bolt
Sleeve Material - Bronze
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Circle Diameter (in) - 6 1/4 in
Bore Length (in) - 5 in
Distance Between Bolt Holes [Max] (in) - 5 5/8 in
Distance Between Bolt Holes [Min] (in) - 4 13/32 in
Grease Fitting Size - 3/8 NPT
Height - 6.88
Insert - 285Y22217
Length - 6.88
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Size (in) - 5/8 in
Mounting Housing Width (in) - 1 in
Mounting Pad Width (in) - 6 7/8 in
Weight (kg) - 7.484268
Pipe Tap Size (in) - 3/8 in
Unit of Dimension - IN
Volume - 0.998
Volume Unit - GLL
